Lynx Studio Technology Aurora 32 DNT

Search your instruction manual in PDF to download

User Manual for Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card

Click to enlarge the picture
Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card Contents of the user manual for the Lynx Studio Technology Aurora 32 DNT
  • Product category: AD/DA Converters Lynx Studio Technology
  • Brand: Lynx Studio Technology
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lynx Studio Technology AD/DA Converters

Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card
User manual for the Lynx Studio Technology Aurora 32 DNT contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lynx Studio Technology product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lynx Studio Technology user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lynx Studio Technology product will considerably shorten its lifespan!



Product description

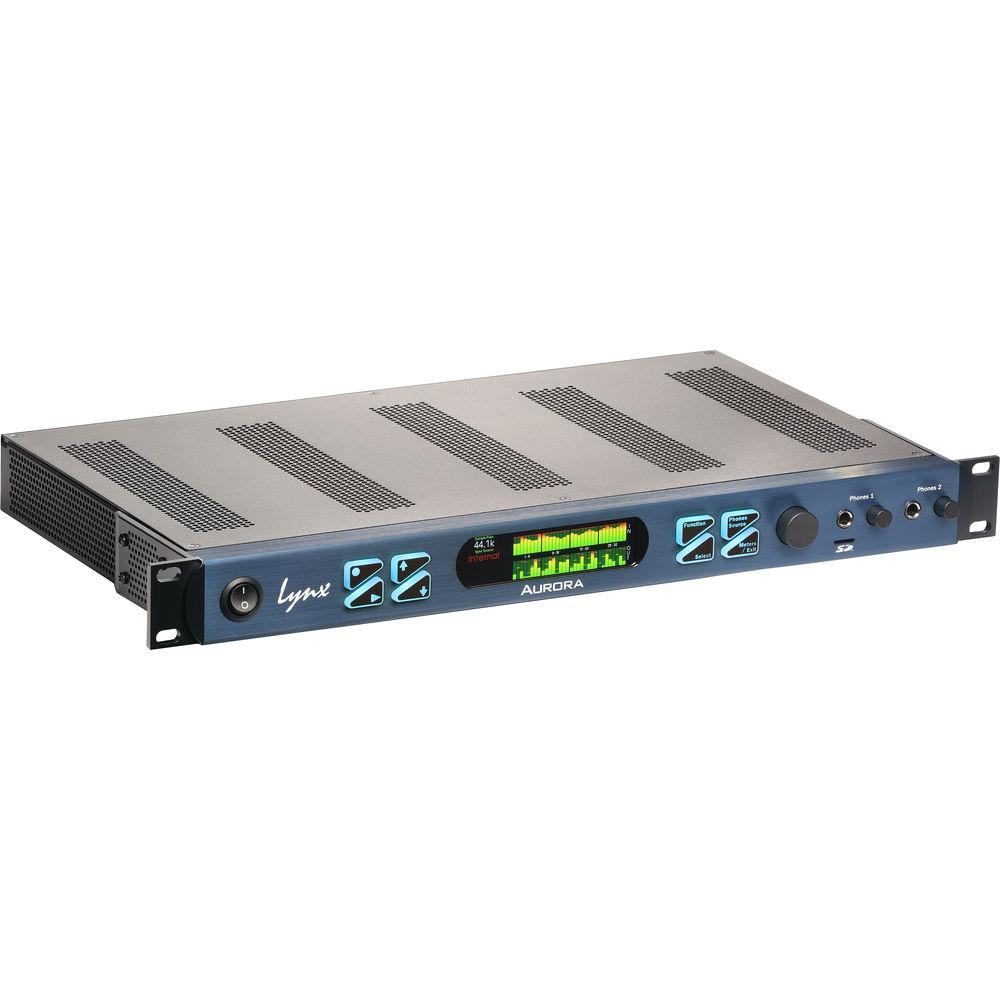

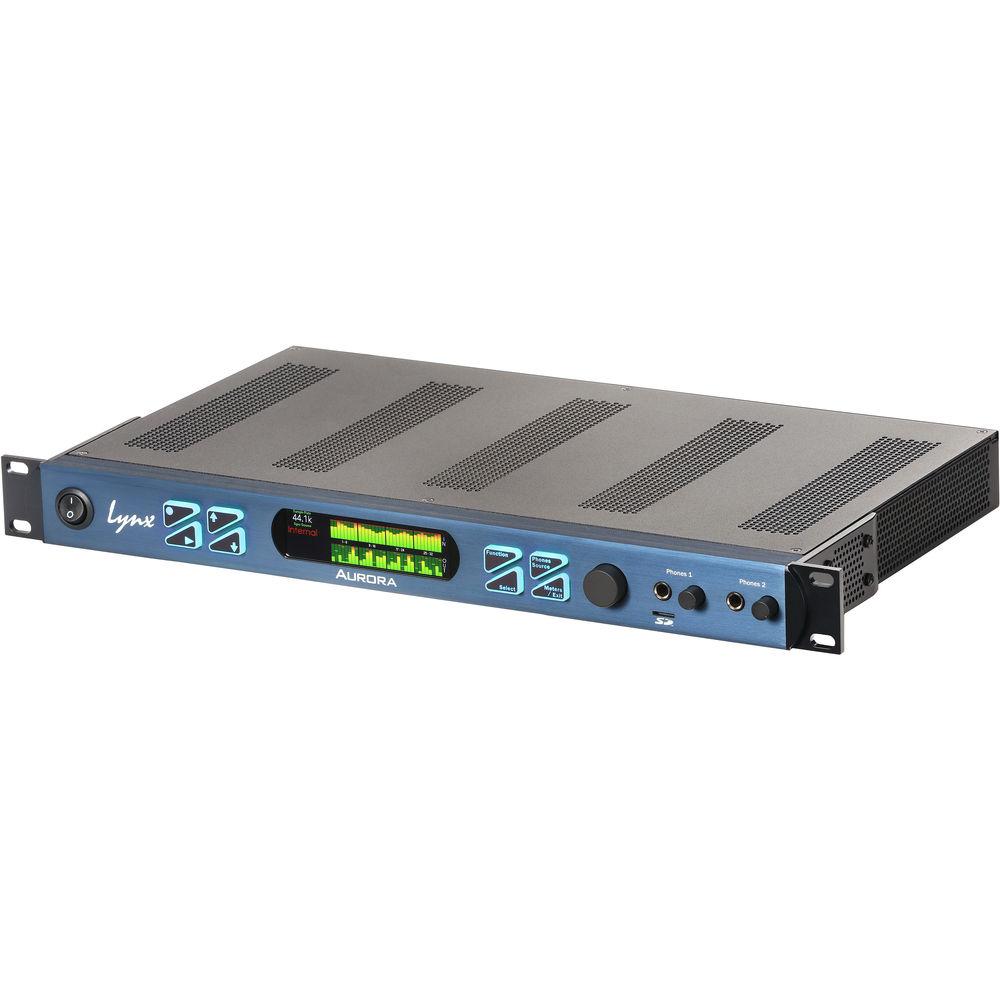

The Aurora(n) 32 DNT from Lynx Studio Technology is a mastering-grade 32-channel AD/DA converter, which supports up to 24-bit / 192 kHz conversion and comes with a preinstalled LT-DANTE Dante interface. It offers significant performance and flexibility improvements over the company's well-regarded line of Aurora converters, providing an even greater level of wide-open, uncompressed, and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance, or production installations.The Aurora(n) 32 DNT combines Hilo-like technology with the latest FPGA processors, to achieve greater transparency and reduction of both noise and distortion. One wordclock input and three outputs let you use the unit as a master clock, or slave it to an external clock. In addition, the Aurora(n) is equipped with an LSlot expansion bay which allows for a wide array of current connectivity options such as Thunderbolt, Dante, Pro Tools | HD, and USB, but can also be used to add more channels and additional hardware, as your production needs evolve.Other features include an on-board microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright LCD display gives you immediate access to all levels and functions, right from the front pa
  • Upgraded version of the company's well-regarded line of Aurora converters
  • Redesigned to use technology borrowed from the company's Hilo Converter Technology (HCT) combined with the latest FPGA technology, for significant improvements in transparency and reductions of both noise and distortion
  • Supports 32 channels of mastering-quality AD/DA conversion at up to 24-bit 192 kHz
  • Preinstalled LT-DANTE Dante interface
  • LSlot expansion bay allows for a wide array of current connectivity options to include Thunderbolt, Dante, Pro Tools | HD, USB, and future formats
  • Two audiophile-grade headphone outputs with independent volume control
  • On-board microSD player/recorder capable of up to 32 channels of direct recording and playback
  • SynchroLock 2 high-performance sample clock technology provides 300,000:1 reduction in jitter, 5-second lock time, extremely low jitter, and excellent absolute accuracy
  • Wordclock I/O provides one input and three outputs on BNC connectors
  • 480x128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle
  • Universal power supply built-in, no wall-warts
  • 1 RU rack-space design with no fan and silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise
  • Designed and built in the USA
In the Box Lynx Studio Technology Aurora(n) 32 DNT - 32 Channel AD/DA Converter with LT-DANTE Dante Card
  • IEC Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lynx Studio Technology Aurora 32 DNT - 32 Channel AD DA Converter with LT-DANTE Dante Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lynx Studio Technology AURORA(N) 32 DNT Specs

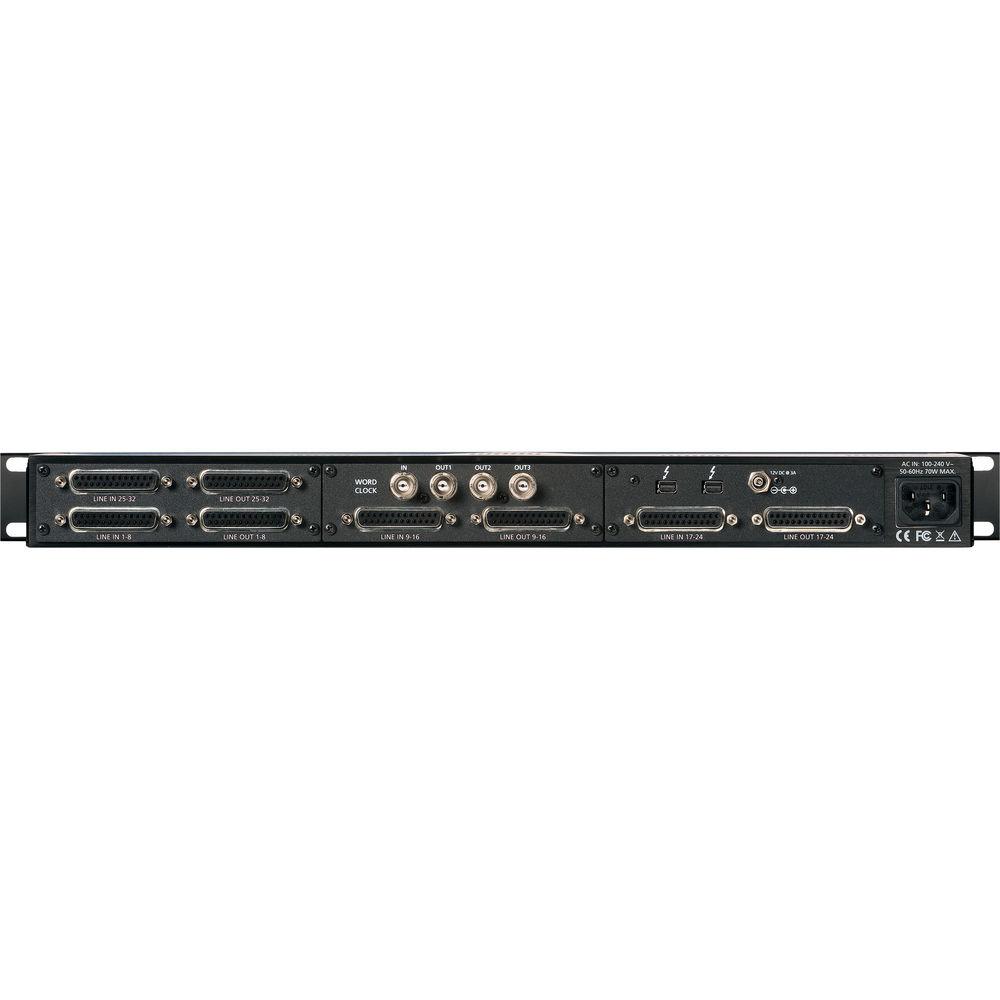

    Digital I/O LT-DANTE LSlot interface with dual Cat5/Cat6 connectors, 32 x channel I/Os
    Analog I/O 4 x 25-pin female D-sub, analog in 1-32
    4 x 25-pin female D-sub, analog out 1-32
    Word Clock I/O 1 x BNC Word clock in
    3 x BNC Word clock outs
    Compatibility Supports Lynx LSlot expansion cards
    THD + N -113 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
    Dynamic Range 119 dB (A-weighted, -60 dBFS signal)
    Frequency Response Deviation ±0.01 dB (20 Hz to 20 kHz band)
    Crosstalk -130 dB (1 kHz, -1 dBFS)
    Full Scale Trim Settings +6 dBV, 20 dBu
    THD + N -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
    Dynamic Range 120 dB (A-weighted, -60 dBFS signal)
    Frequency Response Deviation ±0.025 dB (20 Hz to 20 kHz band)
    Crosstalk -130 dB (1 kHz, -1 dBFS)
    Full Scale Trim Settings +6 dBV, 20 dBu
    THD + N -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
    Dynamic Range 120 dB (A-weighted, -60 dBFS signal)
    Frequency Response Deviation ± 0.025 dB (20 Hz to 20 kHz band)
    Crosstalk -120 dB (1 kHz, -1 dBFS)
    Output Level +18.4 dBu, maximum
    Clock SynchroLock 2
    Jitter 300,000:1 reduction in jitter
    Lock Time 5 seconds
    Channels Up to 32 channels at 96 kHz
    Up to 16 channels at 192 kHz
    Record Time 8.3 hours on 256 GB card (32 channels, 96 kHz)
    66.3 hours on 2 TB card (32 channels, 96 kHz)
    AC Power Universal power supply (built-in)
    Form Factor 1 RU
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
