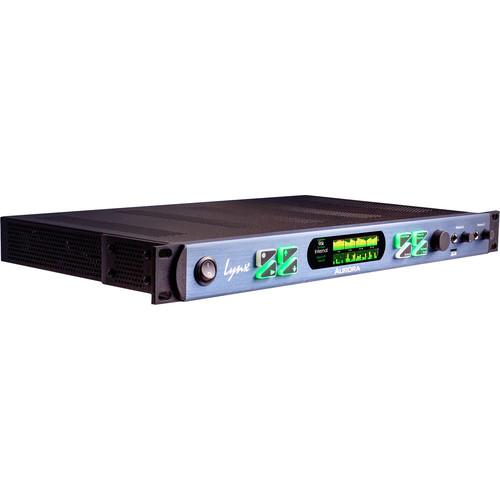

Product description Configured for Thunderbolt, the Lynx Studio Technology Aurora(ⁿ) PRE 1608 bundles the Aurora(ⁿ) 16 AD/DA converter with two LM-PRE4 preamp modules, which are already installed. With this interface, not only can you convert 16 channels of audio to and from the digital world, you can also record up to eight channels of audio straight into the offered interface, doing so with transparent preamps. - Aurora(ⁿ) 16 TB - 16 Channel AD/DA Converter with LT-TB Thunderbolt Card The Aurora(ⁿ) 16 TB from Lynx Studio Technology is a mastering-grade 16-channel AD/DA converter which supports up to 24-bit/192 kHz conversion and comes with a preinstalled LT-TB Thunderbolt interface. It offers significant performance and flexibility improvements over the company's well-regarded line of Aurora converters, providing an even greater level of wide-open, uncompressed, and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance, or production installations.The Aurora(ⁿ) 16 TB combines Hilo-like technology with the latest FPGA processors, to achieve greater transparency and reduction of both noise and distortion. One word clock input and three outputs let you use the unit as a master clock or slave it to an external clock. In addition, the Aurora(ⁿ) is equipped with an LSlot expansion bay which allows for a wide array of current connectivity options such as Thunderbolt, Dante, Pro Tools | HD, and USB, but can also be used to add more channels and additional hardware, as your production needs evolve.Other features include an on-board microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright LCD display gives you immediate access to all levels and functions, right from the front panel.
- Upgraded version of the company's well-regarded Aurora 16 model
- Redesigned to use technology borrowed from the company's Hilo Converter Technology (HCT) combined with the latest FPGA technology, for significant improvements in transparency and reductions of both noise and distortion
- Supports sixteen channels of mastering-quality AD/DA conversion at up to 24-bit/192 kHz
- Preinstalled LT-TB Thunderbolt interface
- LSlot expansion bay allows for a wide array of current connectivity options to include Thunderbolt, Dante, Pro Tools | HD, USB, and future formats
- Two audiophile-grade headphone outputs with independent volume control
- On-board microSD player/recorder capable of up to 32 channels of direct recording and playback
- SynchroLock-2 high-performance sample clock technology provides 300,000:1 reduction in jitter, 5 second lock time, extremely low jitter, and excellent absolute accuracy
- Word clock I/O provides one input and three outputs on BNC connectors
- 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle
- 12 VDC adapter input (adapter is available separately) for powering bus-powered Thunderbolt devices
- Universal power supply - built in, no wall-warts
- 1 RU rack-space design with no fan - silent operation so you can keep unit in the recording room, with no need for isolation from distracting fan noise
- Designed and built in the USA
UPC: 690534022601 - LM-PRE4 Module for Aurora(ⁿ) Converters The Lynx Studio Technologies LM-PRE4 is a preamp module designed to fit inside of the Aurora(ⁿ). This unit adds four mic/line/Hi-Z input channels, as well as an additional four channels of A/D conversion. When inserted into the LSlot of your Aurora(ⁿ), you will have an interface that provides A/D conversion, D/A playback through your monitors, a microSD recorder, and a four-channel preamp for recording all manner of instruments and vocals.
The module has been designed to be a sonic complement to the Aurora(ⁿ), offering the same precision, clarity, and transparency expected from all manner of Lynx products. Combined with the Aurora(ⁿ)'s microSD recorder, the LM-PRE4 can also be the backbone of a mobile rig. The LM-PRE4 sports combination XLR-1/4" jacks by Neutrik, accepting both balanced and unbalanced signals.
The module employs a transformerless design, offering 68.6 dB of gain. It also exhibits extremely low noise, distortion, and crosstalk characteristics, all while providing 48V phantom power, attenuation pads, and polarity control for every channel. Integrating seamlessly with the Aurora(ⁿ)'s engine, the unit works with both the Thunderbolt and USB versions. - Key Features at a Glance
-
- Four-channel microphone/line/Hi-Z input module for the Aurora(n)
- Onboard Aurora(n) A/D conversion directly coupled to preamp out for four additional input channels
- Transformerless, transparent design
- Up to 68.6 dB gain in 1 dB increments
- Fully-differential, current-feedback preamplifier architecture
- Low noise (-129 dBu EIN) microphone input
- Noise and distortion optimized at all gain settings
- Independent 48V phantom power, phase, high-pass filter, and pad for each channel
- Dedicated line-level signal path provides performance identical to other (AIO8E) input channels
- Gold contact relays for distortion-free signal routing
- Seamless integration with the Aurora(n) mixing and routing engine
In the Box Bundle Items Aurora(ⁿ) 16 TB - 16 Channel AD/DA Converter with LT-TB Thunderbolt Card fwqsedtyba LM-PRE4 Module for Aurora(ⁿ) Converters Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Studio Technology Aurora PRE 1608 16 Channel AD DA Converter with 8-Channel Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Aurora(ⁿ) 16 TB - 16 Channel AD/DA Converter with LT-TB Thunderbolt Card
| | | Digital I/O | LT-TB LSlot interface with dual Thunderbolt ports, 16 x channel I/Os | | Analog I/O | 2 x 25-pin female D-sub, analog in 1-16
2 x 25-pin female D-sub, analog out 1-16 | | Word Clock I/O | 1 x BNC Word clock in
3 x BNC Word clock outs | | Compatibility | Supports Lynx LSlot expansion cards | | | | THD + N | -113 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 119 dBA, -60 dBFS signal) | | Frequency Response Deviation | ± 0.01 dB (20 Hz to 20 kHz band) | | Crosstalk | -130 dB (1 kHz, -1 dBFS) | | Full Scale Trim Settings | +6 dBV, 20 dBu | | | | THD + N | -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 120 dBA, -60 dBFS signal) | | Frequency Response Deviation | ± 0.025 dB (20 Hz to 20 kHz band) | | Crosstalk | -130 dB (1 kHz, -1 dBFS) | | Full Scale Trim Settings | +6 dBV, 20 dBu | | | | THD + N | -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 120 dBA, -60 dBFS signal) | | Frequency Response Deviation | ± 0.025 dB (20 Hz to 20 kHz band) | | Crosstalk | -120 dB (1 kHz, -1 dBFS) | | Output Level | +18.4 dBu, maximum | | | | Clock | SynchroLock-2 | | Jitter | 300,000:1 reduction in jitter | | Lock Time | 5 seconds | | | | Channels | Up to 32 channels at 96 kHz
Up to 16 channels at 192 kHz | | Record Time | 8.3 hours on 256 GB card (32 channels, 96 kHz)
66.3 hours on 2 TB card (32 channels, 96 kHz) | | | | AC Power | Universal power supply (built-in) | | Form Factor | 1 RU | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.4 x 15.5 x 4.1" | - LM-PRE4 Module for Aurora(ⁿ) Converters
| | | THD+N | -113 dB (0.00022%) at 1 kHz, -1 dBFS with 20 kHz filter | | Dynamic Range | 119 dB (A-weighted, -60 dBFS method) | | Frequency Response | Deviation over 20 Hz to 20 kHz at -1 dBFS:
