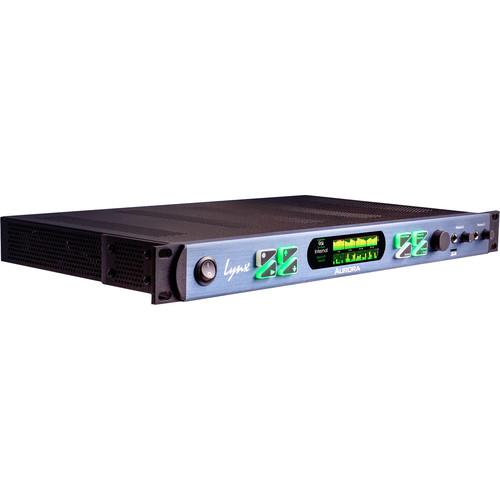

Lynx Studio Technology Aurora PRE 1608

User Manual for Lynx Studio Technology Aurora PRE 1608 16 Channel AD DA Converter with 8-Channel Preamp

• Product category: Audio Interfaces & Systems Lynx Studio Technology
• Brand: Lynx Studio Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lynx Studio Technology Audio Interfaces & Systems

Product description

• Aurora(ⁿ) 16 USB - 16 Channel AD/DA Converter with LT-USB Card The Aurora(ⁿ) 16 USB from Lynx Studio Technology is a mastering-grade 16-channel AD/DA converter which supports up to 24-bit/192 kHz conversion and comes with a preinstalled LT-USB USB 2.0 interface. It offers significant performance and flexibility improvements over the company's well-regarded line of Aurora converters, providing an even greater level of wide-open, uncompressed, and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance, or production installations.The Aurora(ⁿ) 16 USB combines Hilo-like technology with the latest FPGA processors, to achieve greater transparency and reduction of both noise and distortion. One word clock input and three outputs let you use the unit as a master clock or slave it to an external clock. In addition, the Aurora(ⁿ) is equipped with an LSlot expansion bay which allows for a wide array of current connectivity options such as Thunderbolt, Dante, Pro Tools | HD, and USB, but can also be used to add more channels and additional hardware, as your production needs evolve.Other features include an on-board microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright LCD display gives you immediate access to all levels and functions, right from the front panel.
  • Upgraded version of the company's well-regarded Aurora 16 model
  • Redesigned to use technology borrowed from the company's Hilo Converter Technology (HCT) combined with the latest FPGA technology, for significant improvements in transparency and reductions of both noise and distortion
  • Supports sixteen channels of mastering-quality AD/DA conversion at up to 24-bit/192 kHz
  • Preinstalled LT-USB USB 2.0 interface
  • LSlot expansion bay allows for a wide array of current connectivity options to include Thunderbolt, Dante, Pro Tools | HD, USB, and future formats
  • Two audiophile-grade headphone outputs with independent volume control
  • On-board microSD player/recorder capable of up to 32 channels of direct recording and playback
  • SynchroLock-2 high-performance sample clock technology provides 300,000:1 reduction in jitter, 5 second lock time, extremely low jitter, and excellent absolute accuracy
  • Word clock I/O provides one input and three outputs on BNC connectors
  • 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle
  • Universal power supply - built in, no wall-warts
  • 1 RU rack-space design with no fan - silent operation so you can keep unit in the recording room, with no need for isolation from distracting fan noise
  • Designed and built in the USA
  UPC: 690534023608
• LM-PRE4 Module for Aurora(ⁿ) Converters The Lynx Studio Technologies LM-PRE4 is a preamp module designed to fit inside of the Aurora(ⁿ). This unit adds four mic/line/Hi-Z input channels, as well as an additional four channels of A/D conversion. When inserted into the LSlot of your Aurora(ⁿ), you will have an interface that provides A/D conversion, D/A playback through your monitors, a microSD recorder, and a four-channel preamp for recording all manner of instruments and vocals.

  The module has been designed to be a sonic complement to the Aurora(ⁿ), offering the same precision, clarity, and transparency expected from all manner of Lynx products. Combined with the Aurora(ⁿ)'s microSD recorder, the LM-PRE4 can also be the backbone of a mobile rig. The LM-PRE4 sports combination XLR-1/4" jacks by Neutrik, accepting both balanced and unbalanced signals.

  The module employs a transformerless design, offering 68.6 dB of gain. It also exhibits extremely low noise, distortion, and crosstalk characteristics, all while providing 48V phantom power, attenuation pads, and polarity control for every channel. Integrating seamlessly with the Aurora(ⁿ)'s engine, the unit works with both the Thunderbolt and USB versions.
  Key Features at a Glance
  • • Four-channel microphone/line/Hi-Z input module for the Aurora(n)
    • Onboard Aurora(n) A/D conversion directly coupled to preamp out for four additional input channels
    • Transformerless, transparent design
    • Up to 68.6 dB gain in 1 dB increments
    • Fully-differential, current-feedback preamplifier architecture
    • Low noise (-129 dBu EIN) microphone input
    • Noise and distortion optimized at all gain settings
    • Independent 48V phantom power, phase, high-pass filter, and pad for each channel
    • Dedicated line-level signal path provides performance identical to other (AIO8E) input channels
    • Gold contact relays for distortion-free signal routing
    • Seamless integration with the Aurora(n) mixing and routing engine

• IEC Power Cord

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Aurora(ⁿ) 16 USB - 16 Channel AD/DA Converter with LT-USB Card

  Digital I/O	LT-USB LSlot interface with USB 2.0 port, 16 x channel I/Os
  Analog I/O	2 x 25-pin female D-sub, analog in 1-16 2 x 25-pin female D-sub, analog out 1-16
  Word Clock I/O	1 x BNC Word clock in 3 x BNC Word clock outs
  Compatibility	Supports Lynx LSlot expansion cards

  THD + N	-113 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
  Dynamic Range	119 dBA, -60 dBFS signal)
  Frequency Response Deviation	± 0.01 dB (20 Hz to 20 kHz band)
  Crosstalk	-130 dB (1 kHz, -1 dBFS)
  Full Scale Trim Settings	+6 dBV, 20 dBu

  THD + N	-108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
  Dynamic Range	120 dBA, -60 dBFS signal)
  Frequency Response Deviation	± 0.025 dB (20 Hz to 20 kHz band)
  Crosstalk	-130 dB (1 kHz, -1 dBFS)
  Full Scale Trim Settings	+6 dBV, 20 dBu

  THD + N	-108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter)
  Dynamic Range	120 dBA, -60 dBFS signal)
  Frequency Response Deviation	± 0.025 dB (20 Hz to 20 kHz band)
  Crosstalk	-120 dB (1 kHz, -1 dBFS)
  Output Level	+18.4 dBu, maximum

  Clock	SynchroLock-2
  Jitter	300,000:1 reduction in jitter
  Lock Time	5 seconds

  Channels	Up to 32 channels at 96 kHz Up to 16 channels at 192 kHz
  Record Time	8.3 hours on 256 GB card (32 channels, 96 kHz) 66.3 hours on 2 TB card (32 channels, 96 kHz)

  AC Power	Universal power supply (built-in)
  Form Factor	1 RU
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	22.4 x 15.5 x 4.1"

• LM-PRE4 Module for Aurora(ⁿ) Converters

  THD+N	-113 dB (0.00022%) at 1 kHz, -1 dBFS with 20 kHz filter
  Dynamic Range	119 dB (A-weighted, -60 dBFS method)
