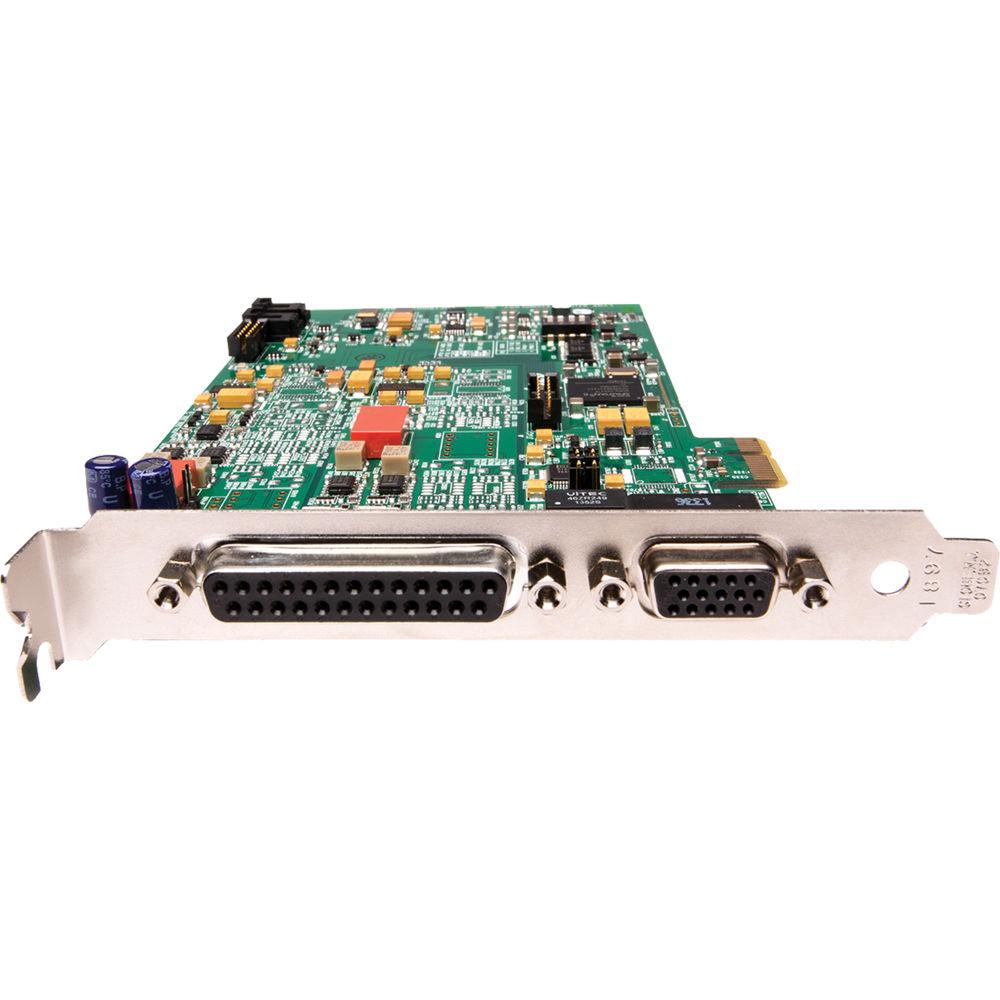

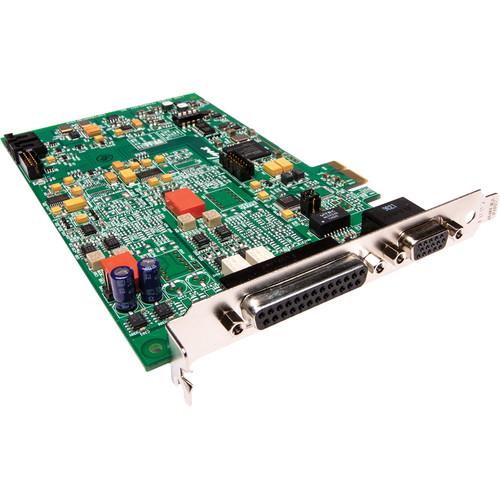

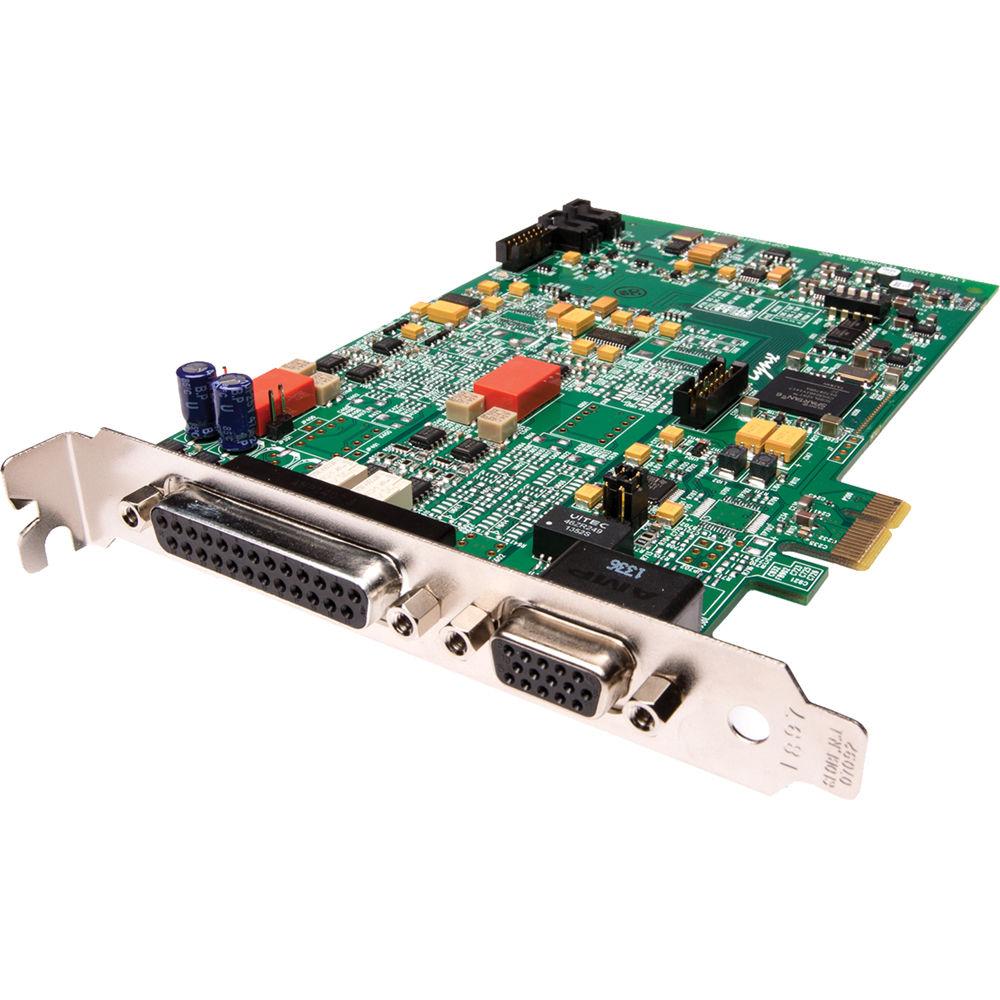

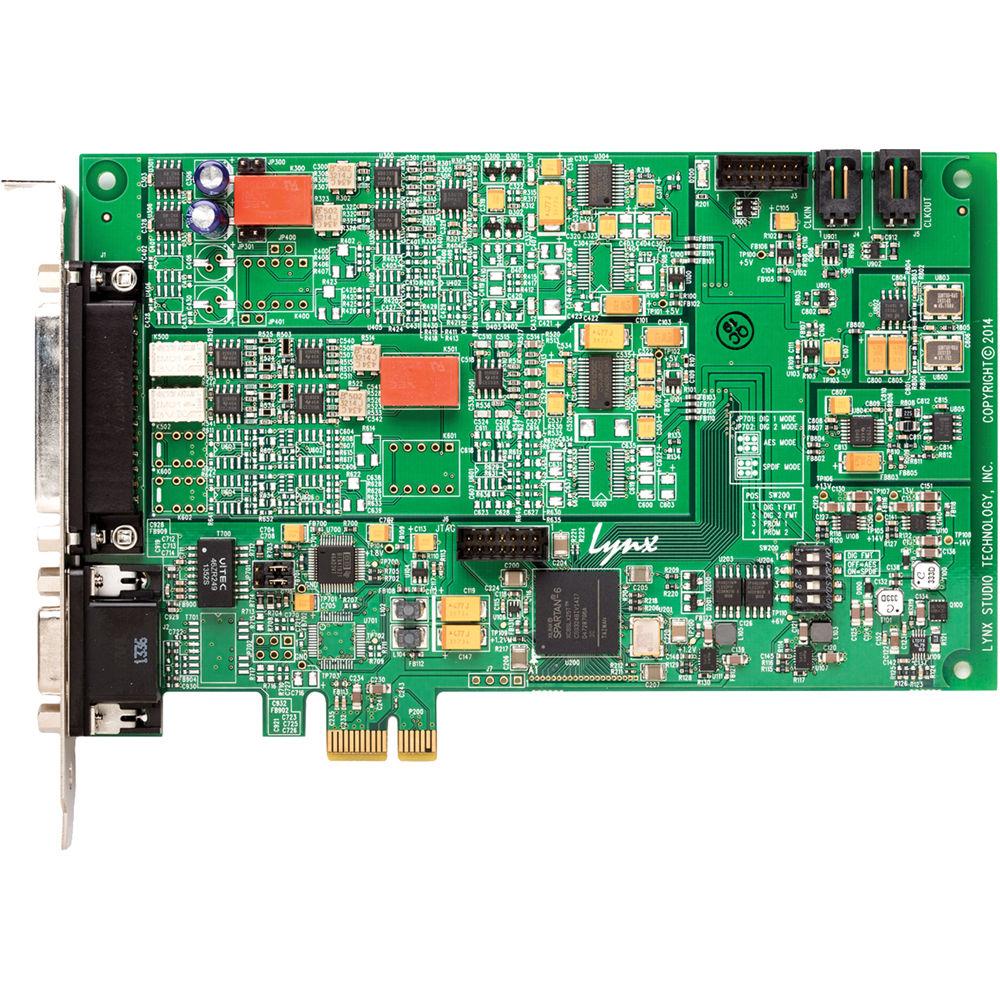

User Manual for Lynx Studio Technology E22 PCI Express Card - Audio Interface Click to enlarge the picture
Contents of the user manual for the Lynx Studio Technology E22 PCI Express
- Product category: Audio Interfaces & Systems Lynx Studio Technology
- Brand: Lynx Studio Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Studio Technology Audio Interfaces & Systems
 |
User manual for the Lynx Studio Technology E22 PCI Express contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Studio Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Studio Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Studio Technology product will considerably shorten its lifespan!
|
Product description The E22 from Lynx Studio Technology is a PCI Express card that deliverers 2 channels of mastering-quality analog-to-digital and digital-to-analog conversion, as well as 2 channels digital I/O with wordclock. The card is ideal for capturing and archiving historic and classic material, broadcast applications, audio measurement, and audio production, as well as military, medical, and industrial applications that require full audio spectrum capabilities with extreme accuracy and reliability.The E22 PCIe provides high bandwidth, low latency, and minimal interference from operating system processes. The field-programmable hardware can be updated via online firmware updates, ensuring the card's longevity as newer features and technologies are released. Up to four cards can be installed into a single computer and with the included Lynx mixer application, the E22 can turn a computer into a powerful digital router or patchbay with zero-latency monitoring, accurate metering, extensive flexibility, and minimal cabling.Offering a solution for jitter problems in AES signals, the card incorporates SynchroLock technology that provides extreme jitter tolerance at all inputs. By coupling statistical analysis with low-noise clock generation techniques, SynchroLock is able to extract a very clean clock from AES signals affected by long cable lengths and other noise sources. Note: Requires CBL-L22Audio for analog I/O and CBL-L22Sync for digital and wordclock I/O (not included) for full operation. -
- Hi-Speed PCI Express connectivity
- Mastering-quality analog inputs and outputs
- Digital ports are user-switchable between AES and SPDIF
- Up to four Lynx PCIe cards can be used in a single computer for a total of 16 possible I/O channels
- Includes Lynx Mixer to manage all settings, save scenes, and facilitate low-latency hardware monitoring
- Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Extremely low-jitter SynchroLock sample clock generator
- Fixed or adjustable trim level on all analog I/O’s, relay controlled
- Automatic output muting on power on/off (de-thump)
- FPGA-based on-board hardware mixing
- V2 DMA Engine promotes extremely low-latency operation
- Supports operation within popular Thunderbolt expansion chassis by Magma, Sonnet, and others
- Supports ASIO and WDM for Windows and Core Audio for Mac OS X
- Fully supports current operating systems from Windows 7 and Mac OS X 10.8, and above
- Full WDM implementation allows multiple channel support of 5.1 and 7.1 surround playback formats
- Easily installed into PCI Express capable Mac or Windows computers
- Supports external clocking via wordclock or a digital input
- Trim pots for calibrating analog inputs and outputs to any professional or consumer reference level
- Field programmable with downloadable firmware updates
- RoHS compliant
- Designed and built in the USA
UPC: 690534000340 In the Box Lynx Studio Technology E22 PCI Express Card - Audio Interface (2 x Analog / 2 x Digital) Software Drivers for Mac and Windows Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Studio Technology E22 PCI Express Card - Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Studio Technology E22 Specs | Converters | Not applicable | | Sample Rates | 44.1, 48, 88.2, 96, 177.4, or 192 kHz | | Analog In | 2 | | Analog Outputs | 2 | | Level | +20 dBu full-scale or variable +8.23 dBu to +24 dBu full-scale; jumper selectable | | Input Impedance | Balanced Mode: 24 kOhms
Unbalanced Mode:12 kOhms | | Output Impedance | Balanced Mode: 100 ohms
Unbalanced Mode: 50 ohms | | Output Drive | 600 ohm impedance, 0.2 μF capacitance | | Digital Input Connectors | 2 x XLR AES/EBU on each of the optional breakout cables
1 x BNC Clock | | Digital Output Connectors | 2 x XLR AES/EBU on each of the optional breakout cables
1 x BNC Clock | | MIDI In/Out | No | | Sync In/Out | AES/EBU
Wordclock
Bracket-mounted, 15-pin, high-density, female D-sub connector | | Headphone Output | No | | Frequency Response | 20 - 20 kHz, ± 0.05 dB | | Dynamic Range | Analog In: 117 dB, A-weighted
Analog Out: 120 dB, A-weighted | | Channel Crosstalk | Analog In: <-128 dB, 1 kHz signal @ -1 dBFS Analog Out: <-130 dB, 1 kHz signal @ -1 dBFS | | THD + N | Analog In: -111 dB (0.0003%) @ -1 dBFS, 1 kHz signal, 22 Hz - 22 kHz bandwidth
Analog Out: -108 dB (0.0004%)@ -1 dBFS, 1 kHz signal, 22 Hz - 22 kHz bandwidth | | Power | +3.3 V @ 630 mA
+12 V @ 500 mA | | Mac System Requirements (Intel) | OS X 10.8 or higher (must have Intel processor)
1 GB RAM
One functional PCI Express slot
A connection to the Internet to download the Lynx Driver (this can be from a different computer than the one that the card is installed into)
NOTE: The E22/E44 is not supported with OS X 10.7 or below | | Windows System Requirements | Windows 7 (32-bit or 64-bit), Windows 8, or greater
1 GHz or faster processor
1 GB RAM
One functional PCI Express slot
A connection to the Internet to download the Lynx Driver (this can be from a different computer than the one that the card is installed into)
NOTE: The E22/E44 is not supported under Windows 95, 98, ME, Windows 2000, Windows XP, or Windows Vista. Windows installed via BootCamp is not supported | | Dimensions | 5.0 x 7.4 x 0.75" (127 x 188 x 19 mm) | | Shipping Weight | 1 lb (454 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 11.1 x 7.7 x 2.6" |
