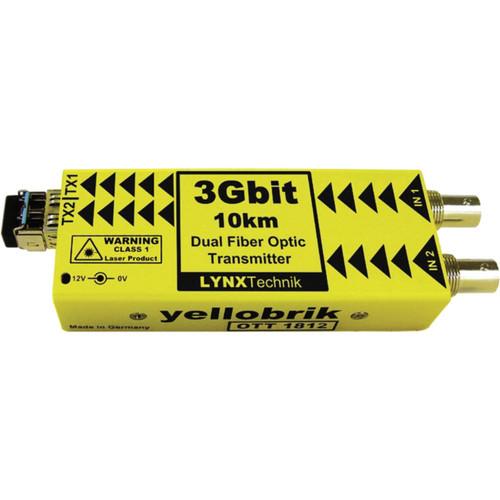

Product description The Lynx Technik AG Dual-Channel 3Gbit SDI to Fiber Transmitter (6.2 mi) is designed to combat the restrictions involved with the distribution of uncompressed broadcast-quality video signals over a long distance.Pairing of this transmitter with the dual-channel fiber optic to SDI receiver (such as yellobrik ORR 1802) acts as a dual-channel optical transmission system for signals up to a resolution of 1080p60 (3Gbit/s) while preserving full uncompressed quality.Each channel is fully independent and will auto-detect any video signal from 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI. Note: Fiber optic cable sold separately. - Supports SDI video inputs up to 3Gbit/s (1080p60)
- Error-free optical transmission
- Allows for signal transmission up to 6.2 mi at a rate of 3Gbit/s
- Duplex LC/PC single mode optical connection
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG Dual-Channel 3Gbit SDI to Fiber Transmitter (6.2 mi) Power Supply Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG Dual-Channel 3Gbit SDI to Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O TT 1812 Specs | Input | 2 x SDI video on 75 Ω BNC connector
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mbit/s to 3 Gbit/s
Multi-rate reclocking
270 Mbit/s - 1.48 Gbit/s - 2.97 Gbit/s
Return Loss: >15 dB to 1.5 GHz and >10 dB up to 3 GHz
Automatic cable EQ (Belden 1694A cable)
820' (250 m) at 270 Mbit/s, 459' (140 m) at 1.5 Gbit/s, 262' (80 m) at 3 Gbit/s | | Optical Outputs | 2 x Fiber optic outputs
Duplex (single mode) using LC/PC connections
SMPTE 297M - 2006
Wavelength: 1310 nm (each channel)
Optical Power: -5 dBm (each channel)
TX active LEDs on the side of the module
Maximum Distance: 6.2 mi (10 km) at 3 Gbit/s (Single mode) | | Power | 12 VDC power supply (included)
Supports external power input from 9 to 14 VDC Power LED on side of module | | Dimensions (L x W x H) | 5.5 x 1.6 x 8.7" (14.0 4.2 x 22.0 cm) (length including connectors) | | Weight | 4.4 oz (125.0 g) | | | | Package Weight | 1.22 lb | | Box Dimensions (LxWxH) | 10.35 x 9.1 x 3.6" |
