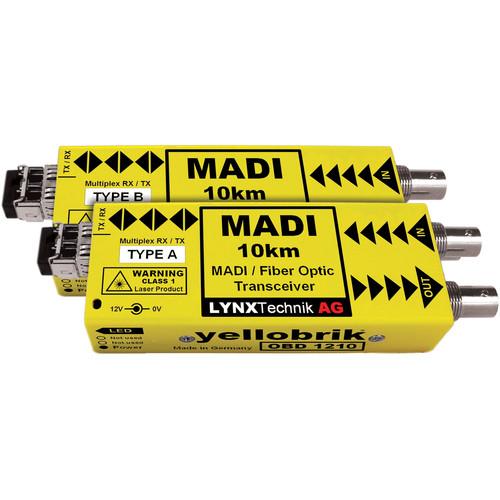

Product description Provided by third party: The OBD 1210 is a matched pair of compact MADI fiber transceivers designed to extend the reach of MADI signals over long distances (up to 10km). The modules are designed to convert up to 64 audio channels bidirectionally between MADI Optical and MADI Coaxial (electrical) formats.
Conversion is real time [no latency] and does not degrade the signal quality and only requires a single bidirectional fiber link between the modules. The OBD 1210 solution is supplied as a complete kit which includes two matched modules, two power supplies and a transport case.
- Key Features
-
- Bidirectional MADI send and receive over single fiber link
- MADI Optical to MADI Coaxial converters
- Supports up to 64 channels of audio
- Real time conversion with no degradation of signal quality
- Closed loop WDM fiber system
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG MADI Bi-Directional Optical to Coax Converter Transceiver Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O BD 1210 Specs | | | Device Type | MADI extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | Fiber optic, Coax | | Optical Wave Length | 1310 nm / 1550 nm | | Max Transfer Distance | 6.2 miles | | Features | Bidirectional | | | | Interfaces | 1 x MADI (input) - BNC
1 x MADI (output) - BNC
1 x network - LC single-mode female x 2 | | | | Power Device | External power adapter | | | | Width | 5.5 in | | Depth | 1.7 in | | Height | 0.9 in | | Weight | 4.41 oz | | | | Min Operating Temperature | 41
