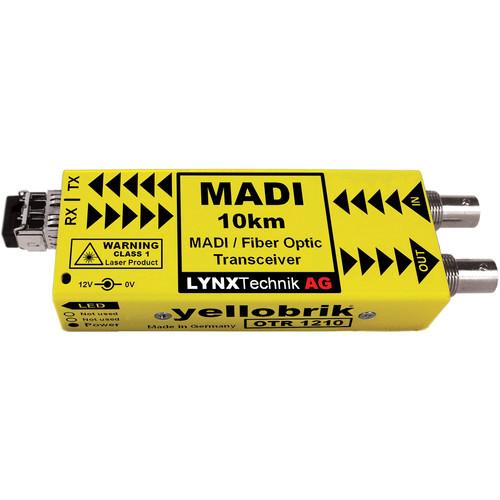

Product description Provided by third party: The OTR 1210 is a MADI fiber transmitter and receiver combined in a single package. The module is designed to convert up to 64 audio channels bi-directionally (64 in & 64 out) between MADI Optical and MADI Coaxial (electrical) formats. Conversion is real time [no latency] and does not degrade the signal quality.
The OTR 1210 is compact and cost effective solution to extend the reach of MADI audio over long distances. When paired with another OTR 1210 at the receiving end (using two fiber links) you have a cost effective, zero latency MADI extender system for distances up to 10km.
- Key Features
-
- MADI Optical to MADI Coaxial converter
- Supports up to 64 channels of audio
- Real time conversion with no degradation of signal quality
- Singlemode and Multimode versions
- Up to 10 km (6.2 miles) using Singlemode fiber
- Up to 550 m (1804 feet) using Multimode fiber
- Duplex LC optical connections
- Supports hot swapping and hot plugging
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG MADI Optical to Coaxial Singlemode Converter & Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O TR 1210 Specs | | | Device Type | MADI extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | Fiber optic, Coax | | Optical Wave Length | 1310 nm | | Max Transfer Distance | 6.2 miles | | | | Interfaces | 1 x MADI (input) - BNC
1 x MADI (output) - BNC
1 x network - LC single-mode female x 2 | | | | Power Device | External power adapter | | | | Width | 5.5 in | | Depth | 1.7 in | | Height | 0.9 in | | Weight | 4.41 oz | | | | Min Operating Temperature | 41
