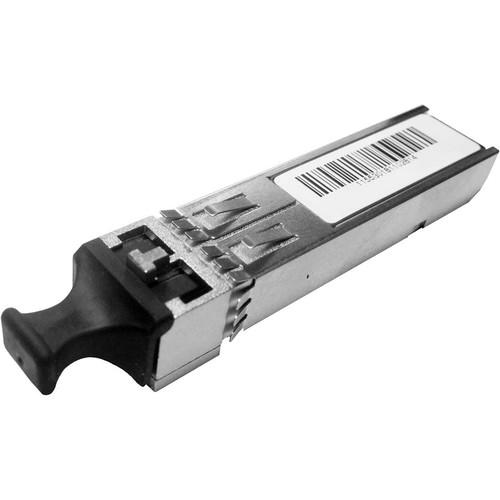

User Manual for Lynx Technik AG OH-TR-1 3G-SDI Optical Transceiver Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG OH-TR-1 3G-SDI Optical
- Product category: Accessories for Converters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Accessories for Converters
|
User manual for the Lynx Technik AG OH-TR-1 3G-SDI Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The OH-TR-1 3G-SDI Optical Transceiver from Lynx Technik AG is a plug-in SFP transmitter and receiver pair for use with select yellobrik and Series 5000 products. The transmitter facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber. At the other end, the receiver converts the optical SDI signal back to an electrical signal for further processing. The OH-TR-1 transmits at a wavelength of 1310nm and supports transmission ranges up to 6.2 miles. A socket is included for easy installation. - SDI multirate optical transceiver for 3G-SDI, HD-SDI, and SD-SDI signals
- Supports SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI
- 1310nm transmission wavelength over single-mode fiber
- LC duplex fiber connections
- Receiver wavelengths 1260 to 1620nm as per ITU-T G694.2
- Transmission distances up to 6.2 miles
- Pluggable and hot-swappable
- Lead-free and RoHS compliant
- For use with select yellobrik and Series 5000 products
In the Box Lynx Technik AG OH-TR-1 3G-SDI Optical Transceiver (1310nm, 6.2 miles) Socket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG OH-TR-1 3G-SDI Optical Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG OH-TR-1 Specs | | | Intrinsic Jitter | At 2.97 Gb/s: 45 ps typical, 80 ps max
At 1.485 Gb/s: 45 ps typical, 80 ps max
At 270 Mb/s: 45 ps typical, 80 ps max | | Wavelength | Min: 1290 nm
Typical: 1310 nm
Max: 1330 nm | | Optical Power | Min: -8 dBm
Typical: -5 dBm
Max: -3 dBm | | Linear Extinction Ratio | Min: 5.0
Typical: 8.0 | | Transmission Range | 6.2 miles (10 km) approx | | | | Sensitivity | At 2.97 Gb/s: -16 dBm
At 1.485 Gb/s: -16 dBm
At 270 Mb/s: -16 dBm | | Wavelength | Min: 1260 nm
Max: 1620 nm | | Overload | Max: -3 dBm | | Signal Loss | Min: -35 dBm, asserted
Max: -16 dBm, deasserted | | Optical Hysteresis | Min: 0.5 dB
Typical: 2 dB | | | | SFP Connectivity | MSA | | Fiber Connections | LC duplex single-mode | | Operating Temperature Range | 41–104 ° (5–40°C) | | Power Supply | 3.3 VDC | | Power Consumption | Typical: 130 mAh
Max: 180 mAh | | Dimensions | 2.24 x 0.53 x 0.49" (5.7 x 1.3 x 1.2 cm), sans connector | | Weight | 1.76 oz (50 g) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.75 x 0.5 x 0.3" |
