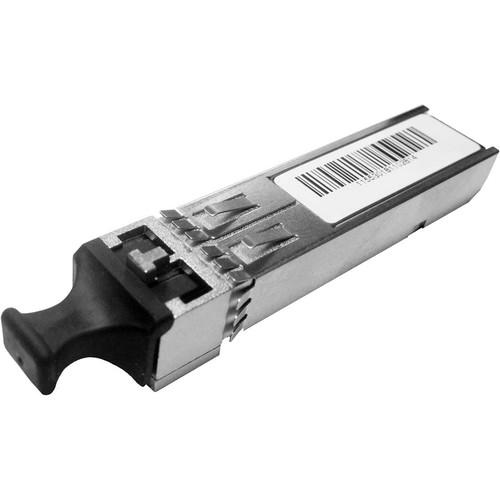

User Manual for Lynx Technik AG OH-TR-54-1270 Fiber SFP Data Optical Transceiver Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG OH-TR-54-1270 Fiber SFP
- Product category: Video Extenders & Repeaters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video Extenders & Repeaters
|
User manual for the Lynx Technik AG OH-TR-54-1270 Fiber SFP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The OH-TR-54-1270 Fiber SFP Data Optical Transceiver from Lynx Technik AG is an optical transceiver plug-in option for Lynx Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical data signal into an optical signal for transmission over fiber, and will also receive an optical data signal for conversion to an electrical signal for further processing. A CWDM wavelength of 1270nm is provided, and it is suitable for distances up to 25 miles. This is a higher-power device intended for long haul applications.
A socket, or "cage", is provided for the SFP in the supporting Lynx product for easy installation or upgrade. The SFP is hot-swappable. - Data optical transceiver - receiver/transmitter in single package
- Data rate 1.25Gb/s compatible with SONET OC-24-LR-1
- CWDM wavelength selection according to ITU-T G694.2
- Receives wavelength of 1270nm according to ITU-T G694.2
- Transmits up to a distance of 25 miles
- For use with yellobrik and Series 5000 product lines
- Pluggable and hot-swappable
- Lead-free and RoHS-compliant
In the Box Lynx Technik AG OH-TR-54-1270 Fiber SFP Data Optical Transceiver (CWDM 1270nm, 40 km) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG OH-TR-54-1270 Fiber SFP Data Optical Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG OH-TR-54-1270-LC Specs | Compatibility | Lynx Technik yellobrik and Series 5000 product lines | | Wavelength | 1270 nm | | Transmission Distance | 25 miles (40 km) | | Data Rate | 1.25 Gb/s | | Optical | Power: -5 dBm (minimum), 0 dBm (maximum)
Hysteresis: 1 dB (minimum), 4 dB (maximum) | | Spectral Width | 1 nm (-20 dB) | | Ratio | Extinction: 9.0, minimum | | Sensitivity | -23 dBm | | Overload | -3 dBm | | Signal Loss | Asserted: -35 dBm, minimum
De-Asserted: -24 dBm, maximum | | SFP Connectivity | MSA | | Fiber Connections | LC / Duplex - Singlemode | | Power Supply Voltage | 3.3 VDC | | Power Consumption | 300 mA | | Compliance | RoHS | | Operating Temperature Range | 41 to 104°F (5 to 40°C) | | Humidity | 90%, non-condensing | | Dimensions | 2.2 x 0.5 x 0.5" (57.0 x 13.4 x 12.4 mm), not including connector | | Weight | 1.8 oz (50 g) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 3.4 x 2.1 x 0.95" |
