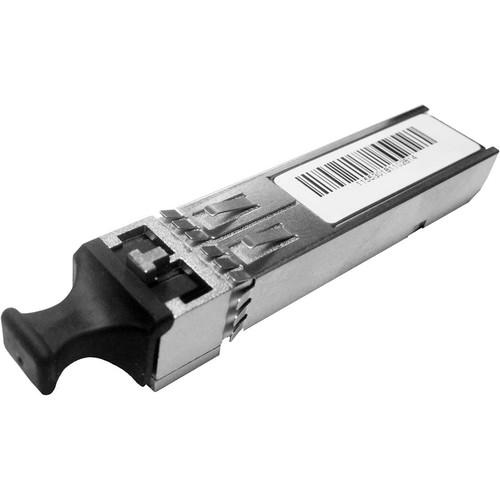

Product description The OH-TR-54-1290 Fiber SFP Data Optical Transceiver from Lynx Technik AG is an optical transceiver plug-in option for Lynx Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical data signal into an optical signal for transmission over fiber, and will also receive an optical data signal for conversion to an electrical signal for further processing. A CWDM wavelength of 1290nm is provided, and it is suitable for distances up to 25 miles. This is a higher-power device intended for long haul applications.
A socket, or "cage", is provided for the SFP in the supporting Lynx product for easy installation or upgrade. The SFP is hot-swappable. - Data optical transceiver - receiver/transmitter in single package
- Data rate 1.25Gb/s compatible with SONET OC-24-LR-1
- CWDM wavelength selection according to ITU-T G694.2
- Receives wavelength of 1290nm according to ITU-T G694.2
- Transmits up to a distance of 25 miles
- For use with yellobrik and Series 5000 product lines
- Pluggable and hot-swappable
- Lead-free and RoHS-compliant
In the Box Lynx Technik AG OH-TR-54-1290 Fiber SFP Data Optical Transceiver (CWDM 1290nm, 40 km) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG OH-TR-54-1290 Fiber SFP Data Optical Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG OH-TR-54-1290-LC Specs | Compatibility | Lynx Technik yellobrik and Series 5000 product lines | | Wavelength | 1290 nm | | Transmission Distance | 25 miles (40 km) | | Data Rate | 1.25 Gb/s | | Optical | Power: -5 dBm (minimum), 0 dBm (maximum)
Hysteresis: 1 dB (minimum), 4 dB (maximum) | | Spectral Width | 1 nm (-20 dB) | | Ratio | Extinction: 9.0, minimum | | Sensitivity | -23 dBm | | Overload | -3 dBm | | Signal Loss | Asserted: -35 dBm, minimum
De-Asserted: -24 dBm, maximum | | SFP Connectivity | MSA | | Fiber Connections | LC / Duplex - Singlemode | | Power Supply Voltage | 3.3 VDC | | Power Consumption | 300 mA | | Compliance | RoHS | | Operating Temperature Range | 41 to 104°F (5 to 40°C) | | Humidity | 90%, non-condensing | | Dimensions | 2.2 x 0.5 x 0.5" (57.0 x 13.4 x 12.4 mm), not including connector | | Weight | 1.8 oz (50 g) | | | | Package Weight | 0.075 lb | | Box Dimensions (LxWxH) | 3.9 x 3.85 x 0.8" |
