Product description Provided by third party: The PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output.
- Key Features
-
- Quad split
- Full screen
- 4K monitoring
- Quad split

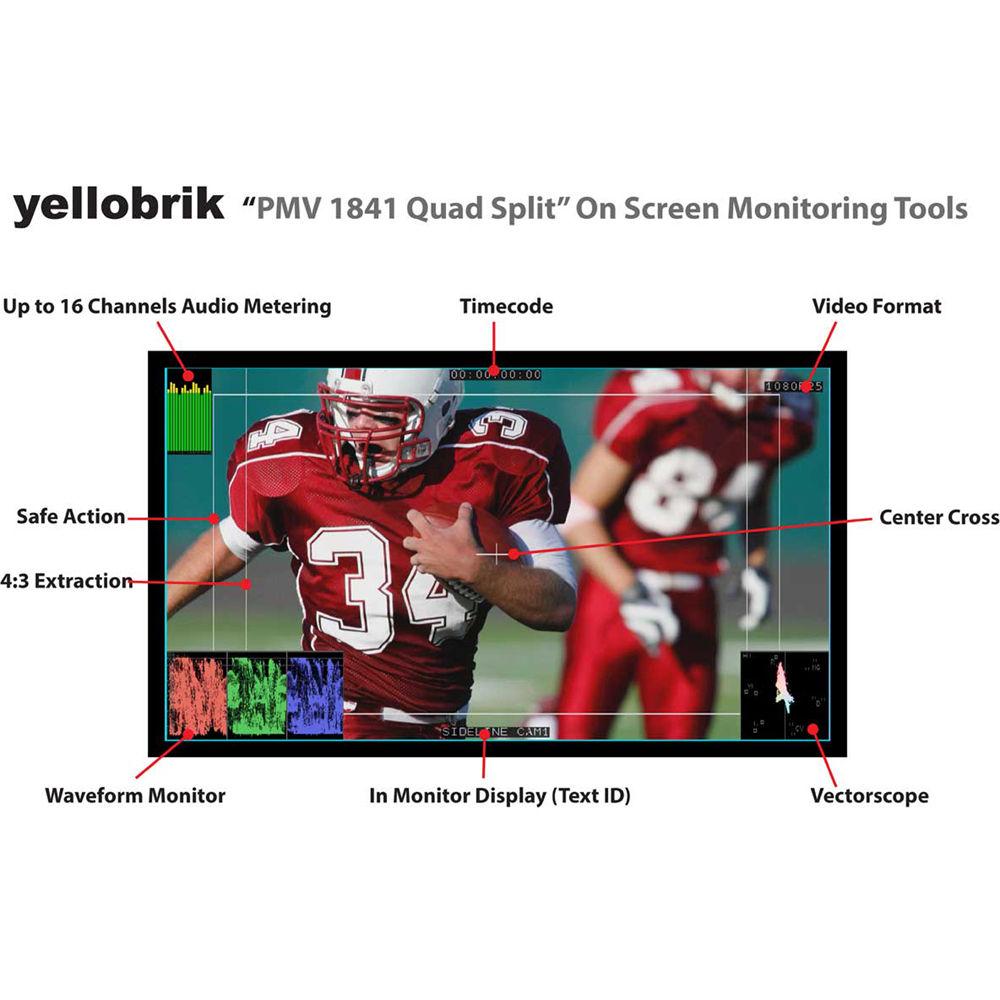

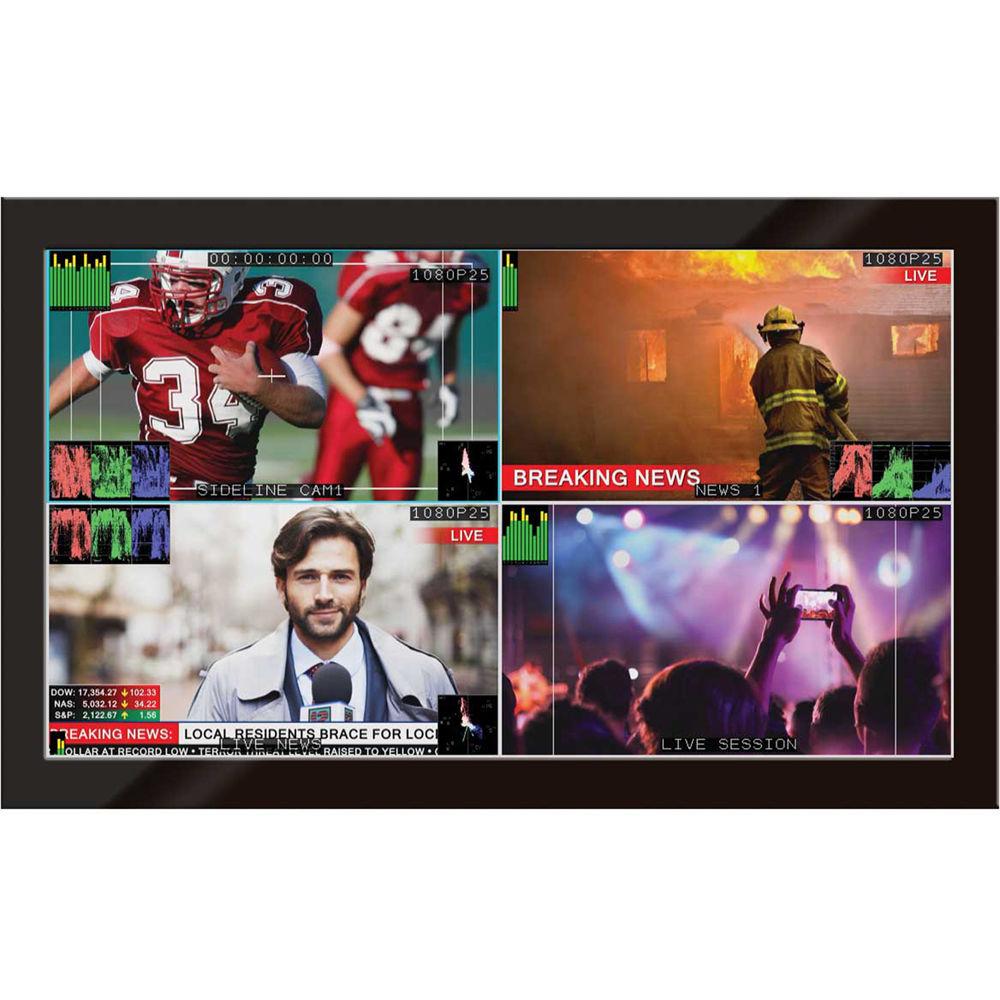

- All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured.
- Full screen
- One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.
- 4K monitoring
- The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG PMV 1841 3G SDI to HDMI Quad-Split Multiviewer with 4K Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG P MV 1841 Specs | | | Type | Quad multiviewer | | Width | 5.4 in | | Depth | 3.5 in | | Height | 0.9 in | | Weight | 8.11 oz | | | | Features | Quad image split screen, 4K monitoring | | | | Max Power Consumption | 4.9 W | | Low Voltage Power | DC 12 V | | | | Terminals | (4) x 3G HD-SDI input - BNC
(1) x HDMI output - 19 pin HDMI Type A
(1) x USB | | | | Min Operating Temperature | 41
