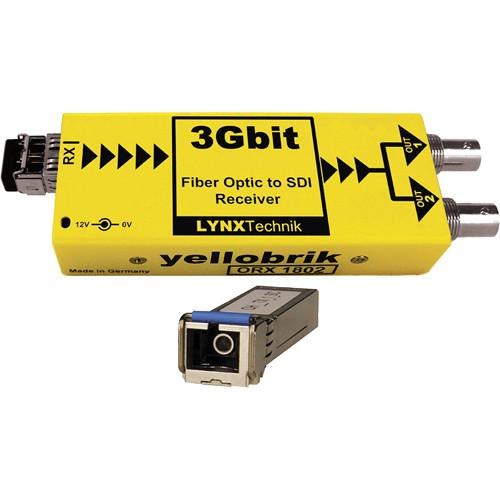

Product description The Lynx Technik AG yellobrik 3Gbit Fiber Optic to SDI Receiver provides 2 SDI outputs and single mode SC fiber connection. This compact fiber optic receiver is designed to combat the restrictions involved with the distribution of uncompressed broadcast-quality video signals over a long distance.Pairing of this receiver with fiber optic transmitters (such as yellobrik OTX 1812 or OTX 1842) gives as an optical transmitter/receiver system for signals up to a resolution of 1080p60 (3Gbit/s) while preserving full uncompressed quality.The ORX 1802 Receiver is compatible with any video signal according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI. - Supports SDI video up to 3Gbit/s (1080p60) and 2 SDI outputs
- Error-free optical reception
- Input range from 1260 to 1620nm
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik 3Gbit Fiber Optic to SDI Receiver (Single Mode SC Connection) 12VDC Power Supply Plastic Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik 3Gbit Fiber Optic to SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O RX 1802 SC Specs | Input | Fiber Input Single Mode:
1 x Fiber optic input SC connection
SMPTE 297M - 2006
Input Range (Wavelength): 1260 to 1620 nm
RX Sensitivity: -3 to -19 dBm
RX Active LED on the side of the module | | SDI Output | 2 x SDI video on 75 Ω BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mbit/s to 3 Gbit/s Return Loss: >15 dB to 1.5 GHz and >10 dB up to 3 GHz | | Power | 12 VDC power supply (included)
Supports external power input from 9 to 14 VDC
Power LED on the side of the module
Power Consumption: 1.4 W | | Dimensions | 5.5 x 1.6 x 8.6" (14.0 x 4.2 x 22.0 cm) | | Weight | 4.4 oz (125.0 g) |
