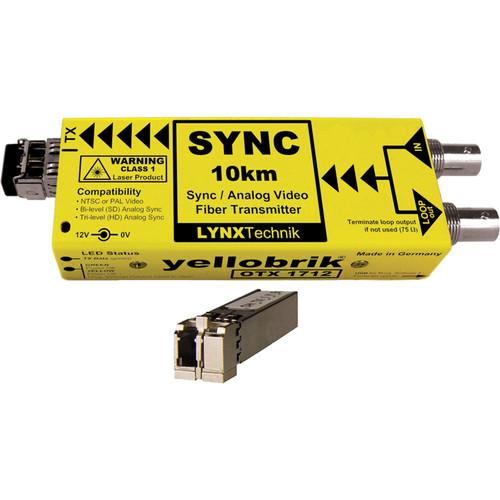

User Manual for Lynx Technik AG yellobrik Analog Sync Video Fiber Optic Transmitter Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik Analog Sync
- Product category: Video Extenders & Repeaters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video Extenders & Repeaters
|
User manual for the Lynx Technik AG yellobrik Analog Sync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG yellobrik Analog Sync/Video Fiber Optic Transmitter provides a passive loop output and supports single mode LC fiber connection. This compact analog sync or NTSC/PAL composite video to fiber optic transmitter is specifically designed to combat the restrictions involved with the distribution of broadcast-quality analog reference and composite video signals over a long distance.Pairing of this transmitter with the ORX 1702 Fiber Optic Receiver (sold separately) gives a transmission system for analog sync reference signals or NTSC/PAL composite video signals. This device is useful for reference sync distribution between remote installations to maintain correct synchronization.The ORX 1712 Transmitter has the technology to maintain a very high degree of sync and burst phase stability during fiber reception and analog conversion. It converts NTSC/PAL video signals to SDI signals (including reference and other relevant information) before they are converted into fiber optic signals. Therefore, when the OTX 1712 Transmitter is used for NTSC or PAL video sources, it is possible to convert the fiber signals directly into SDI if required using an SDI receiver (such as ORX 1712). - Supports analog black burst, bi-level, tri-level sync signals
- NTSC and PAL composite video compatible
- Broadcast-quality performance
- Error-free optical transmission
- Supports single mode signal transmission up to 6.2 mi
- Also supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik Analog Sync/Video Fiber Optic Transmitter (Single Mode LC Connection) 12VDC Power Supply Plastic Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik Analog Sync Video Fiber Optic Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O TX 1712 LC Specs | Analog Input | Sync: Analog black burst / SDTV bi-level / HDTV tri-level
Video: NTSC / PAL composite video
1 x Passive loop output (terminate if not used)
75 Ω BNC connectors
NTSC SMPTE 170M, PAL CCIR624
Analog tri-level sync SMPTE ST 274, ST 276
Multi-standard operation, auto-detect
Return Loss: 31 dB to 10 MHz | | Output | 1 x Fiber optic single mode output LC connection
SMPTE 297M - 2006
Wavelength: 1310 nm
Optical Power: -5 dBm
TX active LED on the side of the module
Maximum Distance: 6.2 mi (10.0 km approximately) | | Power | 12 VDC power supply (included)
Power LED on the side of the module
Power Consumption: 5 W | | Dimensions | 5.5 x 1.6 x 8.6" (14.0 x 4.2 x 22.0 cm) | | Weight | 4.4 oz (125.0 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.3 x 9.1 x 3.5" |
