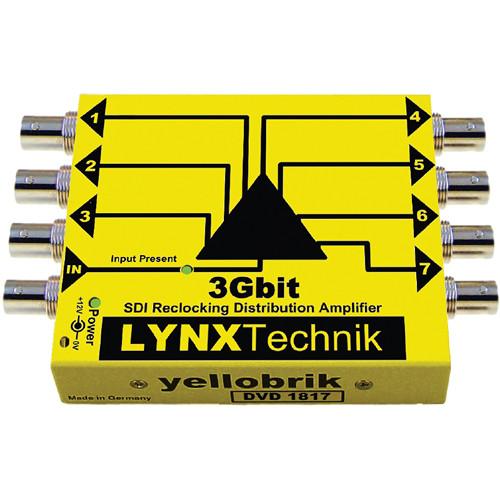

Product description The Lynx Technik AG yellobrik DVD 1817 3Gbit 1 x 7 SDI Reclocking Distribution Amplifier accepts a single input and offers 7 outputs. This compact, general purpose reclocking SDI distribution amplifier is suitable for any SDI/HD-SDI video signal up to 3 Gb (1080p60), including DVB-ASI signals. It supports SMPTE 424M (3 Gb/s), SMPTE 292M (1.5 Gb/s), and SMPTE 259M (270 Mb/s) standards. - Provides 1 input and 7 outputs
- Input present LED indication
- Suitable for SDI video up to 3 Gb/s (1080p60)
In the Box Lynx Technik AG Yellobrik DVD 1817 3Gbit 1 x 7 SDI Reclocking Distribution Amplifier 12VDC Power Supply Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG Yellobrik DVD 1817 3Gbit 1 x 7 SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG D VD 1817 Specs | | | Connector | 1 x 75 Ω BNC | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mb/s to 2.97 Gb/s
Multi-rate reclocking
Input present LED indication | | Return Loss | >15 dB to 1.5 Gb/s and >10 dB up to 3 Gb/s | | Cable Equalization | Over Belden 1694A cable
820' (250 m) at 270 Mb/s, 459' (140 m) at 1.5 Gb/s, 262' (80 m) at 3 Gb/s | | | | Output | 7 x multi-rate reclocked SDI | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI | | Connectors | 1 x 75 Ω BNC | | Return Loss | >15 dB to 1.5 Gb/s and >10 dB up to 3 Gb/s | | Alignment Jitter | <0.2 UI at 270 Mb/s, <0.2 UI at 1.5 Gb/s, <0.3 UI at 2.97 Gb/s | | Timing Jitter | <0.2 UI at 270 Mb/s, <1.0 UI at 1.5 Gb/s, <2.0 UI at 2.97 Gb/s | | | | Power | +12 VDC (power supply included) | | | | Dimensions (L x W x H) | 5.4 x 3.5 x 8.7" (13.8 x 9.0 x 22.0 cm) | | Weight | 8.5 oz (240.0 g) | | | | Package Weight | 1.455 lb | | Box Dimensions (LxWxH) | 10.35 x 9.05 x 3.7" |
