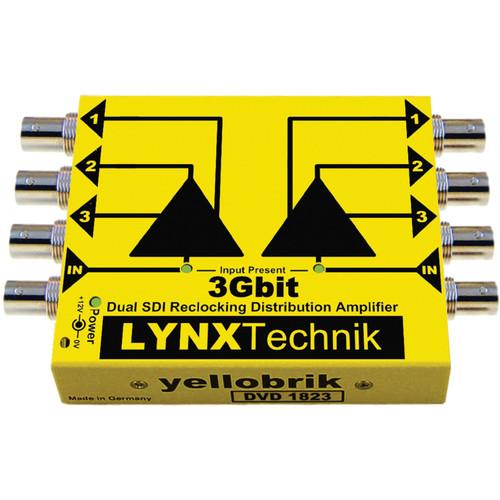

User Manual for Lynx Technik AG Yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG Yellobrik DVD 1823
- Product category: Distribution Amplifiers (DA's) Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Distribution Amplifiers (DA's)
|
User manual for the Lynx Technik AG Yellobrik DVD 1823 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier accepts a single input and offers 3 outputs (per channel). This compact, general purpose, dual channel reclocking SDI distribution amplifier is suitable for any SDI/HD-SDI video signal up to 3 Gb (1080p60), including DVB-ASI signals. It supports SMPTE 424M (3 Gb/s), SMPTE 292M (1.5 Gb/s), and SMPTE 259M (270 Mb/s) standards. - Provides 1 input and 3 outputs per channel
- Input present LED indication
- Suitable for SDI video up to 3 Gb/s (1080p60)
In the Box Lynx Technik AG Yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier 12VDC Power Supply Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG Yellobrik DVD 1823 Dual SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG D VD 1823 Specs | | | Connector | 2 x 75 Ω BNC | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mb/s to 2.97 Gb/s
Multi-rate reclocking
Input present LED indication | | Return Loss | >15 dB to 1.5 Gb/s and >10 dB up to 3 Gb/s | | Cable Equalization | Over Belden 1694A cable
820' (250 m) at 270 Mb/s, 459' (140 m) at 1.5 Gb/s, 262' (80 m) at 3 Gb/s | | | | Output | 3 x multi-rate reclocked SDI | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI | | Connectors | 1 x 75 Ω BNC | | Return Loss | >15 dB to 1.5 Gb/s and >10 dB up to 3 Gb/s | | Alignment Jitter | <0.2 UI at 270 Mb/s, <0.2 UI at 1.5 Gb/s, <0.3 UI at 2.97 Gb/s | | Timing Jitter | <0.2 UI at 270 Mb/s, <1.0 UI at 1.5 Gb/s, <2.0 UI at 2.97 Gb/s | | | | Power | +12 VDC (power supply included) | | | | Dimensions (L x W x H) | 5.4 x 3.5 x 8.7" (13.8 x 9.0 x 22.0 cm) | | Weight | 8.5 oz (240.0 g) | | | | Package Weight | 1.46 lb | | Box Dimensions (LxWxH) | 10.4 x 9.05 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
