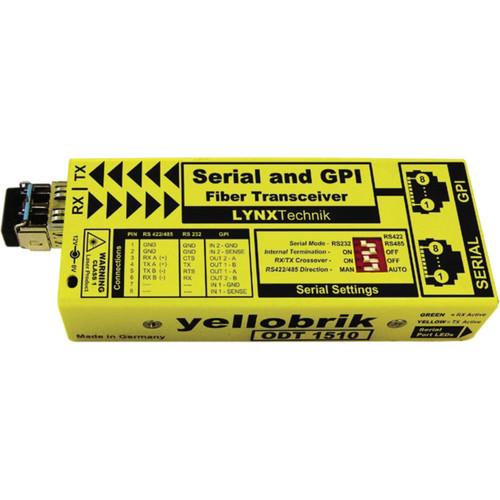

Product description The yellobrik O DT 1510 Singlemode Serial & GPI Fiber Transceiver from Lynx Technic AG is a multi-function module which when used with another ODT 1510 (sold separately) in a remote location can extend the reach of serial RS-232, RS-422, or RS-485 as well as 2 GPI (general purpose I/O) up to 6.2 mi over fiber.
A single RJ-45 electrical serial connection can be configured for RS-232, RS-422, or RS-485 serial standards. A separate RJ-45 connector is provided for 2 electrical GPI inputs and outputs. Serial communications and GPI are transmitted and extended over the same fiber link.
The ODT 1510 Transceiver is completely agnostic to the serial protocol used, and supports all standard protocols and proprietary protocols at data rates from 300 to 460k baud (auto sensing and auto adjusting).
The integrated dip switch provides precise control over the serial mode of operation with selections for the serial standard, serial termination, RX/TX crossover and RS422/485 data direction (automatic or manual). Data activity LEDs are provided for the serial port and the GPI port under the respective RJ-45 connectors.
The ODT 1510 also supports mixing and matching of serial standards. For example, the transmitting module can have a RS-232 input, and the receiving module can be set for RS-422 output. The ODT 1510 is completely plug-and-play, hot pluggable, and no special software drivers are required. - Serial Setting DIP Switch Provides Settings For:
- Select RS232 / RS422/485 modes
Select serial termination (for end of line)
RX/TX crossover to flip the RX and TX if needed
Set RS422/485 data direction to automatic or manual if needed - GPI Inputs
- External passive closure between pins (short) to trigger
- GPI Outputs
- Internal contact closure (relay)
- Extend serial and GPI connections up to 6.2 mi (10km)
- Supports serial RS-232 or RS-422 or RS-485 communication
- LC/PC duplex fiber connections
- Switchable RX/TX crossover
- Automatic or manual data direction
- Switchable end of line termination
- Plug-and-play-no PC software drivers needed
- Supports all serial protocols (standard or proprietary)
- 300 to 460k baud (auto sensing and auto adjusting)
In the Box Lynx Technik AG yellobrik O DT 1510 Singlemode Serial & GPI Fiber Transceiver AC Power Supply Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik O DT 1510 Singlemode Serial & GPI Fiber Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O DT 1510 Specs | Serial | EIA/ETA RS232C / RS422 / RS485 (selectable) | | Connectors | 1 x RJ45, serial
2 x RJ45, general purpose input
2 x RJ45, general purpose output
1 x LC/PC Fiber output (TX)
1 x LC/PC Fiber input (RX) | | Serial Baud Rate | Auto sense and auto adjust from 300 to 460K | | LED Indicators | Serial TX / serial RX activity
GPI Input 1 activity / GPI Input 2 activity
GPI Output 1 activity / GPI Output 2 activity | | RS-422/RS-485 | Max number of electrical nodes = 25 | | ESD Protection | UP to 26 kV | | GPI Input | Max Input Switching Frequency: 25 Hz (50 operations/second)
Input Insulation: 3.75 kV | | GPI Output | Max Switching Frequency: 25 Hz (50 operations/second)
Max Switching Power: 220 VDC, 0.25 A / 250 VAC, 0.25 A
Output Insulation: 3.75 kV | | General | TX Wavelength: 1310 nm
Power: -3dBm
RX Input Range: 1260 to 1620 nm
Sensitivity: 3 dBm to -21 dBm
Max Distance: 6.2 mi (10 km) | | Ambient Operating Environment | 41 to 104°F (5 to 40°C), 90% humidity (non-condensing) | | Power | 12 VDC @ 0.25 A (supports 9 - 14 VDC external power) | | Dimensions | 4.13 x 1.57 x 0.86" (10.5 x 4.0 x 2.2 cm) | | Weight | Not Specified by Manufactuer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.3 x 9.1 x 3.7" |
