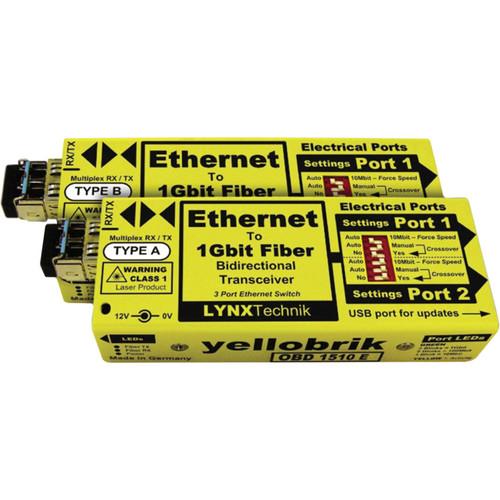

Product description The yellobrik OBD 1510 E Ethernet to 1Gbit Fiber Bi-directional Transceiver Pair from Lynx Technik AG is a matched pair of compact Ethernet switches designed to extend the reach of electrical Ethernet signals over long distances. The two switches are linked via a single bi-directional fiber link, which operates at a constant 1Gb speed. This pair of modules uses WDM fiber technology in a closed loop arrangement and essentially functions as an Ethernet extender solution. The fiber link supports distances up to 6.2 mi (10km) and provides a single, high-speed 1Gb error-free optical connection between the two locations. Each OBD 1510 E module has two standard RJ-45 electrical Ethernet ports and the complete system functions as a 4-port Ethernet switch, providing two standard RJ-45 Ethernet ports at each location bridged with fiber. For legacy systems, each electrical Ethernet port can be set for automatic speed detection (10/100/1000 Mb/s) or forced to 10Mb. Each port uses auto crossover detection or can be forced manually if needed. These functions are available using the dip switch. - Bi-directional send and receive over a single fiber link
- Supports standard Ethernet inputs up to 1Gb
- Closed loop WDM fiber system
- Auto (10/100/1000) electrical port speed detection
- You can manually force 10Mb electrical speed
- Fiber connection speed always 1Gb
- Auto or manual electrical crossover selection
- Distances up to 6.2 mi (10km) over SMF fiber
- Comes as a matched pair (A and B version)
In the Box Lynx Technik AG yellobrik OBD 1510 E Ethernet to 1Gbit Fiber Bi-directional Transceiver Pair 2 x OBD 1510 E Modules (Type A and Type B) 2 x 12VDC Power Supply Wall Mounting Brackets Plastic Transport Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OBD 1510 E Ethernet to 1Gbit Fiber Bi-directional Transceiver Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O BD 1510 E Specs | Ports | 2 x RJ45 | | Wavelength | 1310 / 1550 nm | | Maximum Networking Distance | 32,810' / 10,000 m | | Maximum Data Rate | 1 Gbps | | Mode | Single-Mode | | DC Input Power | 12 VDC | | Dimensions (L x W x H) | 4.7 x 1.7 x 8.7" / 119.4 x 43.2 x 221.0 mm | | Weight | 4.4 oz / 124.7 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.4 x 8.8 x 3.6" |
