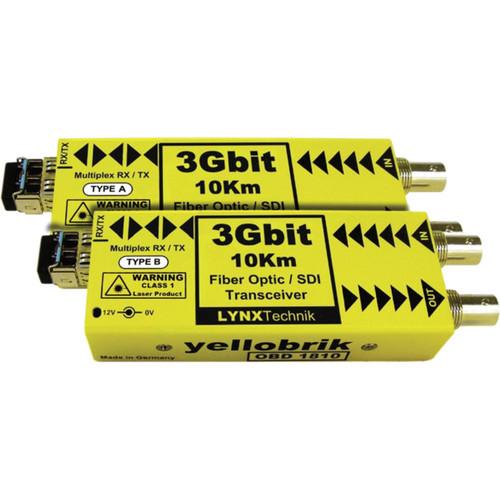

Product description The yellobrik OBD 1810 3Gb Bi-directional SDI/Fiber Transceiver Pair from Lynx Technik AG is a Fiber Optic to SDI transmitter and receiver which uses a single fiber link supplied in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. The OBD 1810 modules are sold in pairs, one Type A and one Type B which work together. Each module has an SDI in and SDI out connection and uses a single fiber link between the two. The unit auto-detects any connected video signal from 270Mb/s to 3Gb/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards, as well as DVB-ASI. - Bi-directional send and receive over a single fiber link
- Combined transmitter and receiver
- Supplied in pairs (type A and type B)
- Supports SDI video up to 3Gb/s (1080p60)
- Reclocking at 270Mb, 1.5Gb, 3Gb (auto-detect)
- Up to 6.2 miles (10 km) at 3Gb (Singlemode)
- LC/UPC optical connection
- 1310 nm and 1550 nm wavelength (WDM)
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik OBD 1810 3Gb Bi-directional SDI/Fiber Transceiver Pair 2 x OBD 1810 Modules (Type A and Type B) 2 x 12VDC Power Supply Wall Mounting Bracket Plastic Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OBD 1810 3Gb Bi-directional SDI Fiber Transceiver Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O BD 1810 Specs | SDI Video Input | 1 x SDI Video Input
1 x SDI Video Output
75 BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mb/s to 3 Gb/s
Multi-rate reclocking: 270 Mb/s, 1.48 Gb/s, 3 Gb/s
Return Loss: > 15 dB to 1.5 GHz and > 10 dB up to 3 GHz
Automatic cable EQ (Belden 1694A cable): 820.2' (250.0 m) at 270 Mb/s, 459.3' (140.0 m) at 1.5 Gb/s, 262.4' (80.0 m) at 3 Gb/s | | Fiber optic | 1 x Bi-directional fiber connection (LC/PC Connection)
SMPTE 297M - 2006
1310 nm and 1550 nm (WDM)
14 dB Optical Budget
TX and RX active LEDs on side of module
Maximum distance 6.2 miles (10.0 km) at 3Gb/s (single mode) | | Power | +12 VDC power supply (included)
Power LED on side of module | | Dimensions (L x W x H) | 5.5 x 1.65 x 8.66" (14.00 x 4.20 x 22.00 cm) | | Weight | Each: 4.40 oz (125.00 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 10.3 x 8.9 x 3.6" |
