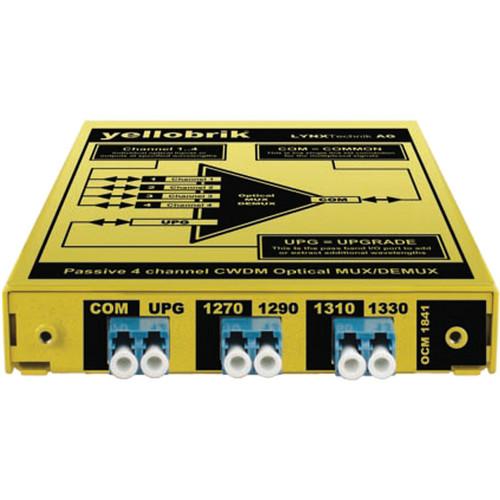

User Manual for Lynx Technik AG yellobrik OCM 1841 4-Channel CWDM Optical Mux Demux Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik OCM 1841
- Product category: Video Extenders & Repeaters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video Extenders & Repeaters
|
User manual for the Lynx Technik AG yellobrik OCM 1841 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The yellobrik OCM 1841 4-Channel CWDM Optical Mux/Demux from Lynx Technik AG is a compact CWDM passive 4-channel optical multiplexer/de-multiplexer unit designed to send and receive up to 4 individual signals over a single fiber link. The module has a UPG (Upgrade) port to cascade into other optical multiplexer/de-multiplexer to expand the total number of multiplexed signals. The module can be used standalone or can be integrated into the RFR 1018 1/2 RU 19" Rack Frame (sold separately), which can accommodate up to four 4-channel modules. The unit is suitable for use with the CWDM yellobrik fiber modules. - Send / receive up to 4 channels over a single fiber link
- Passive operation (no power required)
- Combine all 4 modules for up to 16 channels
- LC/PC single-mode optical connections
- Mountable in a 1/2 RU 19" rack frame (sold separately)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OCM 1841 4-Channel CWDM Optical Mux Demux in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O CM 1841 Specs | Wavelength | Channel 1: 1,270 nm
Channel 2: 1,290 nm
Channel 3: 1,310 nm
Channel 4: 1,330 nm | | Compatibility | ORX 1800, ORR 1802 receivers / OTX 1840, OTT 1812 CWDM transmitters / OTR 1840 CWDM transceiver and the OET 1540 Ethernet Transceiver (18 wavelengths available as specified in ITU-T G.694.2). Sold separately. | | Insertion Loss | Channel: 2.7 dB
UPG: 2.7 dB | | Polarization | maximum 0.2 dB | | Return Loss | > 45 dB | | Isolation | > 30 dB | | Directivity | > 55 dB | | Loss | Temperature Dependent: < 0.005 dB/°C | | Wavelength | Temperature Dependent change of wavelength: <0.003 nm/°C | | Input Power | 500 mW | | Dimensions (L x W x H) | 4.92 x 3.93 x 7.08" (12.50 x 10.00 x 18.00 cm) | | Weight | 4.9 oz (140.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.4 x 8.9 x 3.5" |
