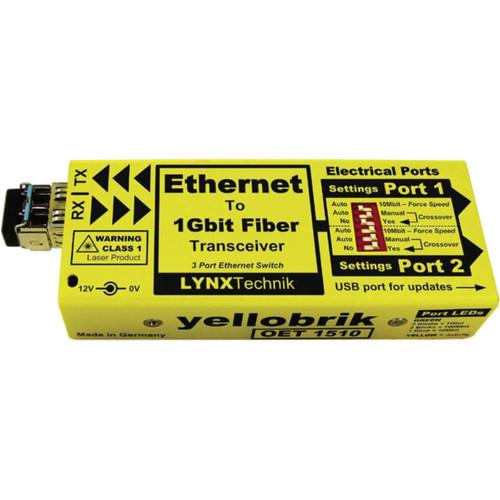

User Manual for Lynx Technik AG yellobrik OET 1510 Ethernet to 1Gbit Fiber Transceiver Switch Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik OET 1510
- Product category: Network Transceivers Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Network Transceivers
|
User manual for the Lynx Technik AG yellobrik OET 1510 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG yellobrik OET 1510 Ethernet to 1Gbit Fiber Transceiver Switch is a compact 3-port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) optical transmission speed of 1Gb. When paired with another OET 1510 (sold separately) at the receiving end (using two fiber links), you get an efficient Ethernet extender system for transmission over distances up to 6.2 mi (10km). The system provides a stable, high-speed (1Gb), error-free optical connection between locations. The OET 1510 has two standard RJ-45 electrical Ethernet ports plus fiber I/O and functions as a 3-port Ethernet switch. For legacy system use, each electrical Ethernet port can be set for automatic speed detection (10/100/1000 Mb/s) or forced to 10 Mb, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch. - Supports standard Ethernet inputs up to 1Gb
- 3-port Ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000 Mb/s) electrical port speed selection
- You can manually force 10Mb electrical speed (if needed)
- Fiber transceiver speed is always 1Gb
- Auto or manual electrical crossover selection
- Distances up to 6.2 mi (10km) over fiber
- LC/PC optical connections
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik OET 1510 Ethernet to 1Gbit Fiber Transceiver Switch 12VDC Power Supply Wall Mounting Brackets Note: Fiber Optic Cable Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OET 1510 Ethernet to 1Gbit Fiber Transceiver Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O ET 1510 Specs | Ethernet Standards | IEEE 802.3z | | Ports | 2 x RJ45
1 x Duplex LC/PC | | Networking Technology | 1000BASE-X | | Transmit Power | -3 dBm | | Receive Power | -3 to -21 dBm | | Maximum Networking Distance | 32,810' / 10,000 m | | Maximum Data Rate | 1 Gbps | | Mode | Single-Mode | | DC Input Power | 12 VDC | | Dimensions (L x W x H) | 4.7 x 1.7 x 8.7" / 119.4 x 43.2 x 221.0 mm | | Weight | 4.4 oz / 124.7 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.3 x 8.8 x 3.4" |
