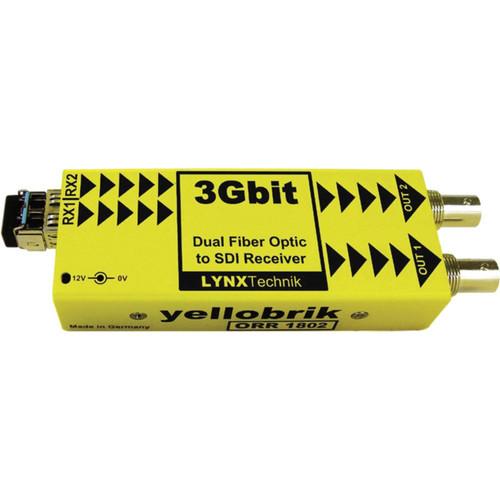

Product description The Lynx Technik AG yellobrik ORR 1802 Dual Channel 3Gbit SDI to Fiber Receiver is designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.This receiver, when paired with a dual-channel fiber optic transmitter (e.g. yellobrik OTT 1812, OTT 1842), provides a dual-channel optical transmission system for signals up to 1080p60 (3 Gb/s), while preserving full uncompressed quality.The ORR 1802 Receiver is compatible with any video signal according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI. - Supports SDI video inputs up to 3 Gb/s (1080p60)
- Error-free optical transmission
- 1,260 to 1,620 nm input range
- Duplex LC/PC single-mode optical connection
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik ORR 1802 Dual Channel 3Gbit SDI to Fiber Receiver 12VDC Power Supply Plastic Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik ORR 1802 Dual Channel 3Gbit SDI to Fiber Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O RR 1802 Specs | | | Connectors | 2 x Fiber optic inputs
Duplex (single-mode) using LC/PC Connections | | Standards | SMPTE 297M - 2006
Hot pluggable | | Wavelength | 1,260 to 1,620 nm | | RX Sensitivity | -3 to -16 dBm
RX active LED on side of module
(SMF) Single Mode Fiber | | | | Connector | 2 x SDI video on 75 Ω BNC connector | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI | | Operation | Multi-standard operation from 270 Mb/s to 3 Gb/s | | Return Loss | >15 dB to 1.5 GHz and >10 dB up to 3 GHz | | | | Power Supply | 12 VDC
Supports external power input from 9 to 14 VDC
Power LED on side of module | | | | Dimensions (L x W x H) | 5.5 x 1.6 x 8.6" (14.0 x 4.2 x 22.0 cm) (length including connectors) | | Weight | 4.4 oz (125.0 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.4 x 9.0 x 3.6" |
