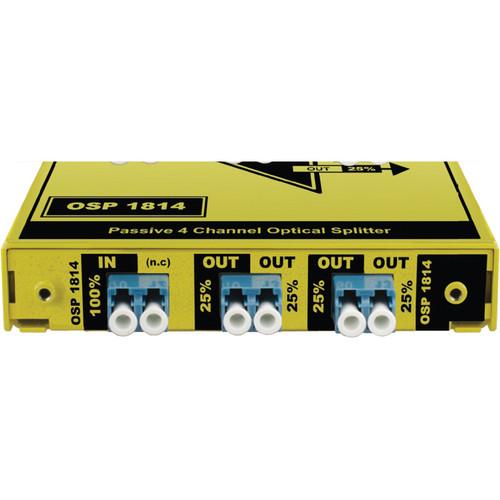

Product description The Lynx Technik AG yellobrik OSP 1814 4-Channel Passive Optical Splitter/Combiner is used to split or combine a fiber optic signal. It accepts a single input (100%) and provides 4 outputs (each 25%). This yellobrik module operates passively, which means it requires no external power supply. It can be used as a standalone module or mounted into the yellobrik RFR 1018 19” rack frame (sold separately). - Passive operation (no power required)
- Compatible with 1/2 RU 19" rack frame (sold separately)
In the Box Lynx Technik AG yellobrik OSP 1814 4-Channel Passive Optical Splitter/Combiner Plastic Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OSP 1814 4-Channel Passive Optical Splitter Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O SP 1814 Specs | Optical Input/Output | 1 x Fiber input
4 x Fiber outputs
Split Ratio: 25% / 25% / 25% / 25% | | Connections | LC/PC (single-mode)
Operating Wavelength: 1,260 to 1,650 nm | | Performance | Insertion loss (including connector)
7.6 dB
Polarization Dependant Loss: Maximum 0.3 dB
Return Loss: >55 dB
Directivity: >55 dB
Maximum Input Power of the Fiber Laser: 500 mW | | Power | None required (passive operation) | | Dimensions (L x W x H) | 4.9 x 3.9 x 7.1" (12.5 x 10.0 x 18.0 cm) (length including connectors) | | Weight | 4.2 oz (120.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.3 x 9.0 x 3.5" |
