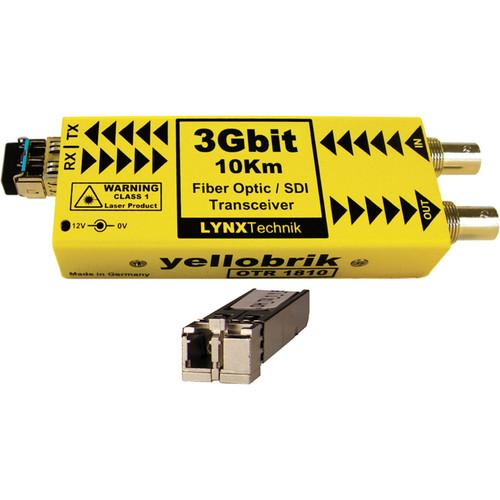

User Manual for Lynx Technik AG yellobrik OTR 1810 3Gbit Multi-Mode Fiber Optic SDI Transceiver Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik OTR 1810
- Product category: Video Extenders & Repeaters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video Extenders & Repeaters
|
User manual for the Lynx Technik AG yellobrik OTR 1810 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG yellobrik OTR 1810 3Gbit Multi-Mode Fiber Optic/SDI Transceiver is a fiber optic to SDI transmitter and receiver combined in a compact self-contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.This OTR 1810 Transceiver has an independent transmitter and receiver channel, which provides an effective solution for transmission of virtually any SDI signal up to 1080p60 (3 Gb/s) while preserving its full uncompressed quality.The OTR 1810 Transceiver auto-detects any connected video signal from 270 Mb/s to 3 Gb/s according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI. - Supports SDI video up to 3 Gb/s (1080p60)
- Optical receiver and transmitter in a single package
- Error-free optical connections
- Supports 3 Gb/s transmission up to 6.2 mi over multi-mode
- Duplex LC optical connection
In the Box Lynx Technik AG yellobrik OTR 1810 3Gbit Multi-Mode Fiber Optic/SDI Transceiver 12VDC Power Supply Plastic Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OTR 1810 3Gbit Multi-Mode Fiber Optic SDI Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O TR 1810 MM Specs | | | Video Input | 1 x SDI | | Video Output | 1 x SDI | | Connectors | 75 Ω BNC | | Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mb/s to 3 Gb/s
Multi-rate reclocking
270 Mb/s - 1.48 Gb/s - 3 Gb/s | | Return Loss | >15 dB up to 1.5 GHz; >10 dB up to 3 GHz | | Cable Equalization | Belden 1694A cable 820' (250 m) 270 Mb/s, 459' (140 m) at 1.5 Gb/s, 262' (80 m) at 3 Gb/s | | | | Input | 1 x Fiber optic | | Output | 1 x Fiber optic | | Standard | Duplex using LC Connections
SMPTE 297M - 2006 | | Transmitter | 850 nm (-5 dBm) | | Receiver | 750 to 880 nm (0 to -15 dBm) | | Maximum Distance | 984' (300 m) at 3 Gb/s | | LED | TX active LED, and RX active on side of module | | | | Power Supply | 12 VDC
Supports external power input from 9 to 14 VDC
Power LED on side of module | | Power Consumption | 1.6 W | | | | Dimensions (L x W x H) | 5.5 x 1.6 x 8.6" (14.0 x 4.2 x 22.0 cm) (length including connectors) | | Weight | 4.4 oz (125.0 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.472 x 9.843 x 3.465" |
