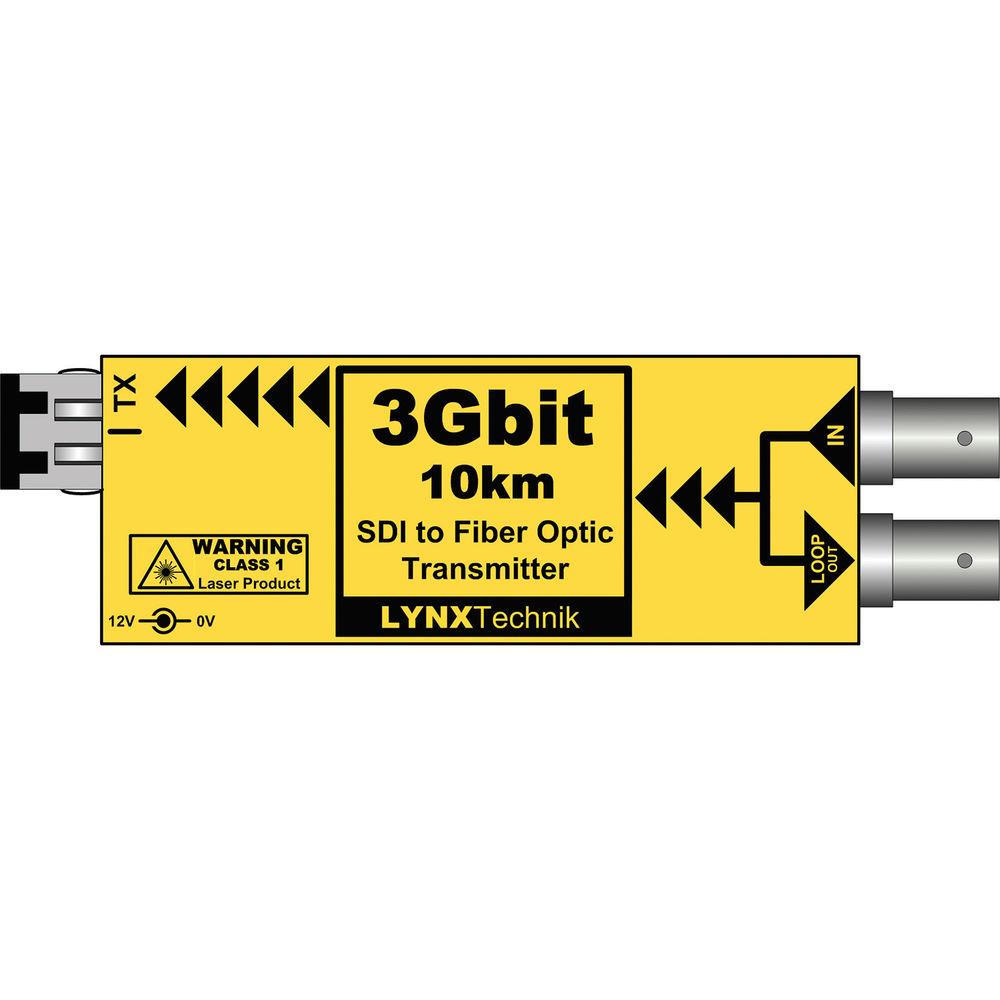

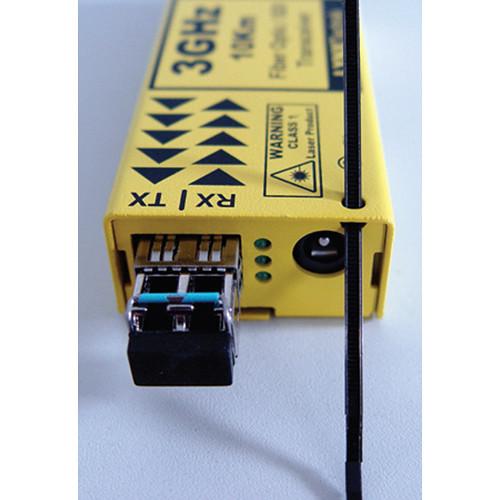

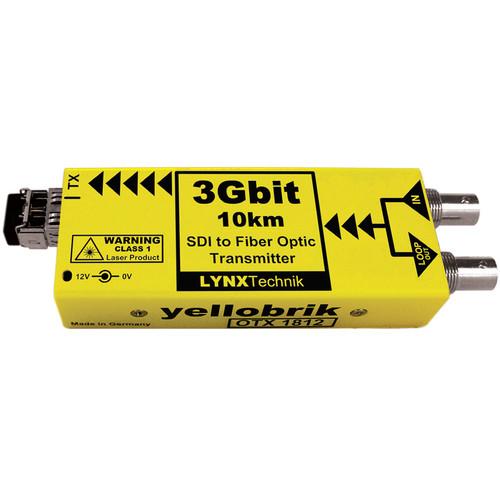

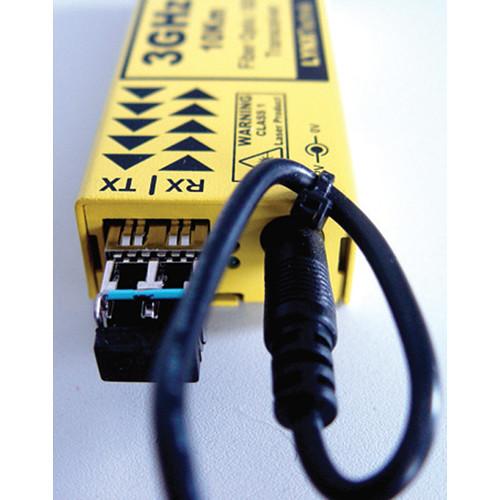

Product description The Lynx Technik AG yellobrik OTX 1812 3Gb SDI to Fiber Optic Transmitter provides a looping SDI input and supports SC single-mode fiber connections. It is designed to combat the restrictions of uncompressed broadcast video distribution over long distances.When paired with a fiber optic to SDI receiver (e.g. yellobrik ORX 1802), this module will be part of a cost-effective optical transmission/receiver system for signals up to 1080p60 (3 Gb/s), preserving full uncompressed signal quality.This receiver autodetects any connected video signal from 270 Mb/s to 3 Gb/s according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI. - Supports SDI video inputs up to 3 Gb/s (1080p60)
- Auto reclocking 270 Mb / 1.5 Gb / 2.97 Gb
- Error-free optical transmission
- Reclocked SDI loop-through output connection
- Supports up to 6.2 mi at 3 Gb/s
- Supports hot swapping and hot plugging
In the Box Lynx Technik AG yellobrik OTX 1812 3Gb SDI to Fiber Optic Transmitter (SC, Single-Mode) 12 VDC Power Supply Plastic Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik OTX 1812 3Gb SDI to Fiber Optic Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O TX 1812 SC Specs | | | Connectors | 1 x SDI video input
1 x SDI reclocked loop-through output
75 Ohm BNC connectors | | Standards | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270 Mb/s to 3 Gb/s | | Reclocking | Multirate: 270 Mb/s - 1.48 Gb/s - 2.97 Gb/s | | Return Loss | >15 dB to 1.5 Gb and >10 dB up to 3 Gb | | Cable Equalization | Automatic cable EQ (Belden 1694A cable)
820' / 250 m at 270 Mb/s
459' / 140 m at 1.5 Gb/s
262' / 80 m at 3 Gb/s | | | | Connectors | 1 x Fiber optic single-mode output SC connection | | Standards | SMPTE 297M - 2006 | | Wavelength | 1310 nm | | Optical Power | -5 dBm
TX active LEDs on side of module | | Maximum Distance | 6.2 mi / 10 km at 3 Gb/s (single-mode) | | | | Power Supply | 12 VDC
Supports external power input from 9 to 14 VDC
Power LED on side of module | | Power Consumption | 1.6 W | | | | Dimensions (L x W x H) | 5.5 x 1.6 x 8.6" / 14.0 x 4.2 x 22.0 cm (length including connectors) | | Weight | 4.4 oz / 125.0 g |
