User Manual for Lynx Technik AG yellobrik PEC 1864 3G-SDI HDMI H.264 Streamer & Recorder Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik PEC 1864
- Product category: Streaming Media Solutions Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Streaming Media Solutions
|
User manual for the Lynx Technik AG yellobrik PEC 1864 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|

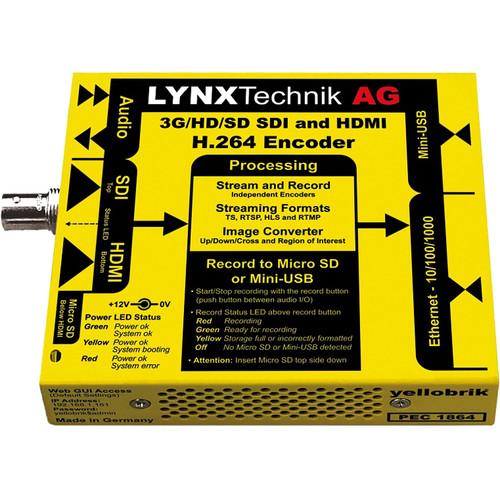

Product description The yellobrik PEC 1864 from Lynx Technik AG is a versatile, compact 3G-SDI/HDMI H.264 streamer and recorder designed for a wide range of applications in the broadcast, film and pro A/V industry. It is suitable for streaming of live events, webcasts, corporate or enterprises, presentations and conferencing, AV systems monitoring, houses of worship, and many more. It comes with a mobile device friendly Web UI that allows for a simple configuration using Windows, Mac, tablet, or a smartphone device. The module can be configured to stream, record, or to do both simultaneously. The streamer and recorder have independent encoders allowing for separate configuration of streaming and recording. Each encoder includes an up/down/cross converter, region-of-interest scaler, and a text overlay feature. Two channels of audio are de-embedded from the video input. In addition, the unit has a line audio input, and either one of these audio sources can be used for the streamer and/or recorder. The PEC 1864 unit supports a wide range of streaming standards as well as unicast and multicast operations. Users can insert a logo into the video signal stream, which can be positioned freely. This streamer and recorder unit is suitable for a diverse set of applications, such as live streaming to a Content Delivery Network using RTMP, viewing the stream on one or more computers using RTP/ RTSP unicast or multicast, or streaming to a dedicated decoder or multicast address using TS over UDP or RTP. Note: For security purposes, this HDMI capture device does not capture, convert, or transmit video or audio from HDCP copy-protected sources like satellite receivers, cable receivers, and more. - Supports SDI video input up to 3 Gb/s
- Supports HDMI video input up to WUXGA
- Supports RTMP, RTP/RTSP, TS over UDP or RTP, and HLS (HTTP Live) streaming formats
- Record to microSD or mini-USB
- Stream and record at the same time
- Independent encoder and scaler for streaming and recording
- Mobile friendly Web UI for configuration
In the Box Lynx Technik AG yellobrik PEC 1864 3G-SDI/HDMI H.264 Streamer & Recorder AC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik PEC 1864 3G-SDI HDMI H.264 Streamer & Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG PEC 1864 Specs | Video Inputs | 1 x SDI, 75 Ohms BNC connector
1 x HDMI 1.4a, Type-A connector | | Video Formats | SDI and HDMI:
SMPTE 424M (3G HDTV), SMPTE 292M (1.5G HDTV), SMPTE 259M (SDTV)
1080p 50/59/60 Hz (Level A)
720p 23/24/25/29/30/50/59/60 Hz
1080i 50/59/60 Hz
1080p 23/24/25/29/30 Hz
1080psF 23/24/25 Hz
525, 625
HDMI only:
WUXGA (1920 x 1200)
WXGA (1280 x 768)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480) | | Video Encoder | H.264 according to MPEG-4 AVC Part 10; ISO/IEC 14496-10:
High, Main, and Baseline profile support
2.0, 3.0, 3.1, 4.0, 4.1 and 4.2 level support
Bit Rate: 200 kbps to 16.000 kbps
MJPEG compliant to ISO/IEC IS 10918-1 | ITU-T Recommendation T.81 | | Audio Input & Output | 2 x 3.5 mm stereo jack (black)
Unbalanced analog line audio input - black jack
Unbalanced analog line audio output - green jack (for future use) | | Audio Encoder | MPEG-4 AAC LC according to ISO/IEC 14496-3:
32 to 256 kb/s 2-channel stereo from video or external audio input | | Recording Medium | 1 x microSD card slot
microSDHC (SD2.0), speed Class 10 or higher recommended
Supported formatting FAT32, NTFS 3.1, exFAT
1 x mini-USB Type-B
USB 2.0
Supported formatting FAT32, NTFS 3.1, exFAT | | Recording Format | .mp4; .ts; .mov | | Network Interface | 10/100/1000 Ethernet (RJ45) | | Protocols | RTMP, RTP/RTSP, TS over UDP, TS over RTP, HLS | | Power Input | 12 VDC at 3.5 W nominal
Supports 5 to 14 VDC input range | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Humidity | 90% (non-condensing) | | Dimensions | 4.88 x 3.54 x 0.86" (124 x 90 x 22 mm) including connectors | | Weight | 8.11 oz (230 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.2 x 9.1 x 3.7" |
