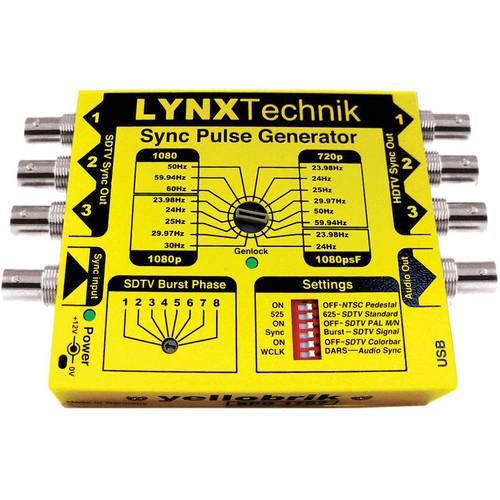

User Manual for Lynx Technik AG yellobrik SPG 1707 HD SD Sync Pulse Generator with Genlock Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellobrik SPG 1707
- Product category: Video & Audio Signal Generators Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video & Audio Signal Generators
|
User manual for the Lynx Technik AG yellobrik SPG 1707 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG yellobrik SPG 1707 HD / SD Sync Pulse Generator with Genlock is a resilient and versatile sync generator that delivers simultaneous sources of HDTV tri-level and SDTV Bi-level sync. The module provides three SD sync outputs and three HD sync outputs and a separate audio sync output that can be switched between 48 kHz World Clock or Digital Audio Reference (DARS). The Genlock capability allows cross locking to any sync signal regardless of the output sync format selected. The unit is suitable when you need a source of HDTV tri-level sync locked to a SDTV Black reference, or if you need to lock across standards. For example, when you need to connect a PAL sync and get frequency locked NTSC sync and HDTV Tri-level sync outputs. The HDTV tri-level sync outputs can be set to any of the available HDTV standards, and the SDTV bi-level outputs can be set for NTSC, PAL, or PAL M/N. The SDTV, HDTV, and audio sync signals are all frequency locked together, or locked to the reference input, if connected. The SDTV sync outputs can be color bars, black burst, or sync only, with selectable 7.5 IRE pedestal for NTSC standards with adjustable burst phase in 8 increments. The sync generator is robust and temperature stabilized, suitable as a reference source with 2ppm accuracy. All the user controls are located on the top of the module, clearly labeled and easily accessible. This facilitates simple changes to module function and configuration without referring to a manual. The compact, portable design makes it suitable for a wide range of applications in broadcast and mobile production environments. - Supports a wide variety of HDTV sync standards
- Simultaneous HD and SD analog sync outputs
- 3 x HD sync outputs and 3 x SD sync outputs
- Genlock with cross lock to any sync standard
- Sync only, color bars or black burst for SD sync
- NTSC, PAL, or PAL M/N sync outputs
- Burst phase adjustment for NTSC and PAL sync
- 48 kHz word clock or DARS audio reference output
- Simple to use, all controls easily accessible
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellobrik SPG 1707 HD SD Sync Pulse Generator with Genlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG S PG 1707 Specs | Sync | HDTV
3 x Tri-level HD Analog Sync outputs
Standards: 1080i/50/59.94/60 Hz
1080p/23.98/24/25/29.97/30 Hz
720p / 23.98/24/25/29.97/50/59.94 Hz
1080psf/23.98/24 Hz
SMPTE 274M, SMPTE 296M
Selectable via integrated 16 position rotary switch
Return Loss > 40 dB up to 5 MHz
SNR > 75 dB 1080p 50/60 Hz is not supported and 720p 30/60 Hz is not supported, but the .001 derivatives are supported | | Sync | SDTV
3 x Bi-level SD sync outputs
Standards: NTSC, PAL, PAL M/N
SMPTE 170M, ITU-R BT 470.6
Selectable: 75% color bars / black burst / sync only
NTSC 7.5 IRE pedestal On/Off
Adjustable burst phase in 8 increments
Return Loss > 40 dB up to 5 MHz
SNR > 75 dB | | Sync Input | Bi-level or tri-level analog sync
Cross lock compatible to 525 and 625 SD sync and all HD sync standards (excluding 1080p 50/60/59.94 Hz)
SMPTE 274M, SMPTE 296M | | Reference | Selectable 48 kHz Word Clock or DARS
DARS: SMPTE 276M unbalanced AES (24-bits) - Grade 2
48 kHz Word Clock: 0 to 5.0 V | | Accuracy | 2 ppm | | Power | +12 VDC power supply (included) | | USB | USB port for firmware upgrades | | Dimensions (L x W x H) | 5.51 x 3.54 x 8.66" (14.00 x 9.00 x 22.00 cm) | | Weight | 10.6 oz (300.0 g) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.5 x 9.7 x 3.5" |
