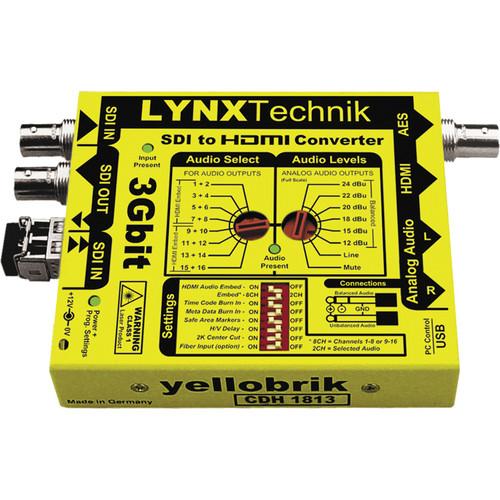

Product description The yellowbrik 3G-SDI to HDMI Converter with 3D Support from Lynx Technik AG converts most SDI sources up to 3Gbp/s, including single-link 3D, into HDMI. In addition, it can de-embedded SDI audio to 2-channel AES and balanced or unbalanced stereo analog. For monitoring applications, the converter features H/V delay to show blanking interval, and incorporates the ability to burn-in timecode, audio levels, and other data as well as generate safe area makers. Many of the setting can be accessed directly from the device itself. In addition, more advanced settings can be configured using a Mac or Windows computer and the yellowGUI utility software. - Timecode and Data Burn-In
- When used in monitoring applications, information about the video signal can be burned into the output image. Burn-in options include: timecode, 16 channel audio metering, safe area markers, and AFD code
- yellowGUI Software
- By connecting the converter to a computer via USB, you can unlock a whole host of features not accessible directly from the device. Options and parameters include: user-defined safe areas, SDI input RGB range, HDMI 3D mode selection, HDMI color range, and more. yellowGUI is available as a free download from the Lynx Technik website, and supports Windows and OSX platforms
- Audio De-Embedding
- Two channels of audio can be de-embedded from the incoming video signal providing a digital AES output and stereo analog audio output signals. In balanced mode, the analog audio outputs have selectable full scale range presets. The two selected audio channels can also be embedded into the HDMI output. In addition, 8 channels selected from the input signal (channels 1 through 8 or 9 through 16) can be embedded into the HDMI output
- Fiber I/O Options
- A Fiber SFP cage on the converter allows you to add a fiber optic recevier, transmitter or Rx/Tx combo. Compatible fiber modules include: OH-TR-1, OH-TR-3-1550, OH-TX-1, OH-RX-1
In the Box Lynx Technik AG yellowbrik 3G-SDI to HDMI Converter with 3D Support Power Supply HDMI Cable Stereo 1/4" to RCA Audio Adapter Cable USB Cable Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellowbrik 3G-SDI to HDMI Converter with 3D Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG C DH 1813 Specs | Inputs | 1 x SDI on BNC female
1 x Fiber - requires optional module (not included): OH-TR-1, OH-TR-3-1550, OH-TX-1, OH-RX-1 | | Outputs | 1 x SDI loop-out on BNC female
1 x HDMI
1 x AES/EBU audio on BNC female
1 x Stereo analog out on 2 x 1/4" female - RCA adapter included
1 x Fiber - requires optional module (not included): OH-TR-1, OH-TR-3-1550, OH-TX-1, OH-RX-1 | | USB | 1 x USB mini type B for yelloGUI interface and firmware updates | | Video Standards | HDMI
HDMI 1.4a; 3D, Deep Color
3D Modes: side-by-side, top and bottom, frame packing
24-bit (3 x 8-bit) and 30-bit (3 x 10-bit); RGB, YCrCb, X,Y,Z
2 or 8 channel audio embedding (selectable)
SDI
SMPTE: 424M, 292M, 259M
3G-SDI, HD-SDI, SD-SDI: 270 Mbp/s to 3 Gbp/s (auto-detecting)
3D: Supports sigle-link 3D modes: Side-by-side, top-bottom, and dual stream (3G-SDI Level B)
Return Loss: > 15 dB up to 1.5 GHz / > 10 dB up to 3 GHz
Automatic cable EQ (Belden 1694A cable): 820' (250 m) at 270 Mbp/s, 460' (140 m) at 1.5 Gbp/s, and 262' (80 m) at 3 Gbp/s | | Audio Standards | AES
ARS3id on 75 ohm BNC
2 channels de-embedded from input (selectable)
Analog
Balanced Mode: 24, 22, 20, 18, 15, 12 dBu full scale (selectable)
Unbalanced Mode (Line Level): -10 dBu | | Power Requirements | 12 VDC | | Dimensions | 4.1 x 3.7 x 0.9" / 105 x 95 x 22 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.66 lb | | Box Dimensions (LxWxH) | 10.6 x 9.2 x 2.5" |
