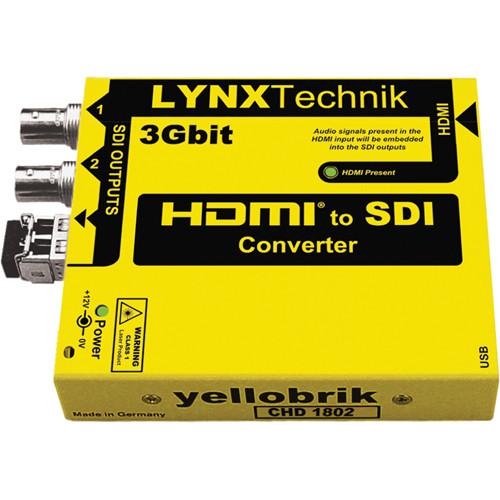

Product description The yellowbrik HDMI to SDI Converter with 3D Support from Lynx Technik AG converts most HDMI sources up to 1080p60, including 3D material, to SDI. It features two SDI outputs, which support SD-SDI, HD-SDI, and 3G-SDI. In addition, the converter will pass up to 8 channels of HDMI-embedded audio into the SDI stream. Where extended cable runs are required on the output side, there is a Fiber SFP cage on the side of the unit that allows installation of the OH-TX-1 fiber optic transmitter, sold separately. - LED light indicates the presence of an HDMI signal
- Includes hard transit case
- Will not pass HDCP-encrypted video
In the Box Lynx Technik AG yellowbrik HDMI to SDI Converter with 3D Support Power Supply HDMI Cable USB Cable Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellowbrik HDMI to SDI Converter with 3D Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG C HD 1802 Specs | Inputs | 1 x HDMI | | Outputs | 2 x SDI on BNC female
1 x Fiber - requires optional module (not included): OH-TX-1 | | USB | 1 x USB mini type B for yelloGUI interface and firmware updates | | Supported Resolutions | 1080p and 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1080i: 50, 59.94, 60 Hz | | Video Standards | HDMI
3D supported
Up to 8 channels embedded audio passed to SDI
Note: Does not pass HDCP-encrypted content
SDI
SMPTE: 424M, 292M, 259M
3G-SDI, HD-SDI, SD-SDI: 270 Mbp/s to 3 Gbp/s (auto-detecting)
3D: Supports sigle-link 3D | | Power Requirements | 12 VDC | | Dimensions | 4.1 x 3.7 x 0.9" / 105 x 95 x 22 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.595 lb | | Box Dimensions (LxWxH) | 10.4 x 9.2 x 3.95" |
