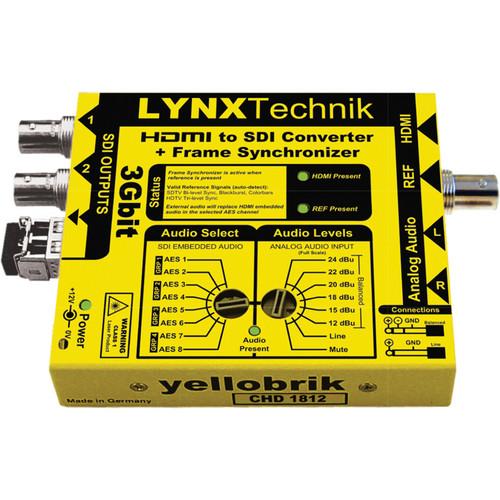

User Manual for Lynx Technik AG yellowbrik HDMI to SDI Converter with Frame Synchronizer Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG yellowbrik HDMI to
- Product category: Signal Converters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Signal Converters
 |
User manual for the Lynx Technik AG yellowbrik HDMI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The yellowbrik HDMI to SDI Converter with 3D Support from Lynx Technik AG converts most HDMI sources up to 1080p60, including 3D material, to SDI. It features two SDI outputs, which support SD-SDI, HD-SDI, and 3G-SDI. In addition, a stereo analog input allows an auxiliary audio source to be embedded in the HDMI output. A reference input allows the SDI signal to be synchronized with an external source, and supports SD bi-level sync, black burst, colorbars, and tri-level HD sync. Finally, there is a Fiber SFP cage allows you to install a fiber optic transmitter for applications where extreme cable runs are required. - Analog Audio Embedding
- The SDI output supports a total of 8 channels of embedded audio including existing HDMI audio as well as audio captured through the stereo analog input. Analog sources can be assigned to any of the 8 available channels; if any HDMI audio is already present on the channels selected, it will be replaced by the analog source. Both balanced 1/4" (TRS) and unbalanced, line level sources are accepted, and a stereo RCA to 1/4" adapter cable is included
- Fiber Output Option
- Where extended cable runs are required on the output side, there is a Fiber SFP cage on the side of the unit that allows installation of either the OH-TX-1 or OH-TX-3-1150 fiber optic transmitter, sold separately
- HDMI Synchronization
- Allows you to take an asynchronous HDMI source and synchronizes it to a common reference clock. The reference input accepts nearly any analog video sync format, including SD bi-level sync, black burst, colorbars, and tri-level HD sync. The sync input is auto detecting and fully cross lock compatible. For example, an SD black burst reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion
- Analog and AES Audio Embedding
- A stereo pair of analog inputs can be embedded into any SDI audio channel. Inputs can be either professional balanced audio sources with selectable, full scale level, or unbalanced consumer line level audio
Additional Features - LED light indicates the presence of an HDMI signal
- Includes hard transit case
- Will not pass HDCP-encrypted video
In the Box Lynx Technik AG yellowbrik HDMI to SDI Converter with Frame Synchronizer Power Supply HDMI Cable USB Cable Stereo RCA to 1/4" Audio Adapter Cable Transport Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG yellowbrik HDMI to SDI Converter with Frame Synchronizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG C HD 1812 Specs | Inputs | 1 x HDMI
1 x Reference input on BNC female
1 x Stereo analog on 2 x 1/4" female - RCA adapters included | | Outputs | 2 x SDI on BNC female

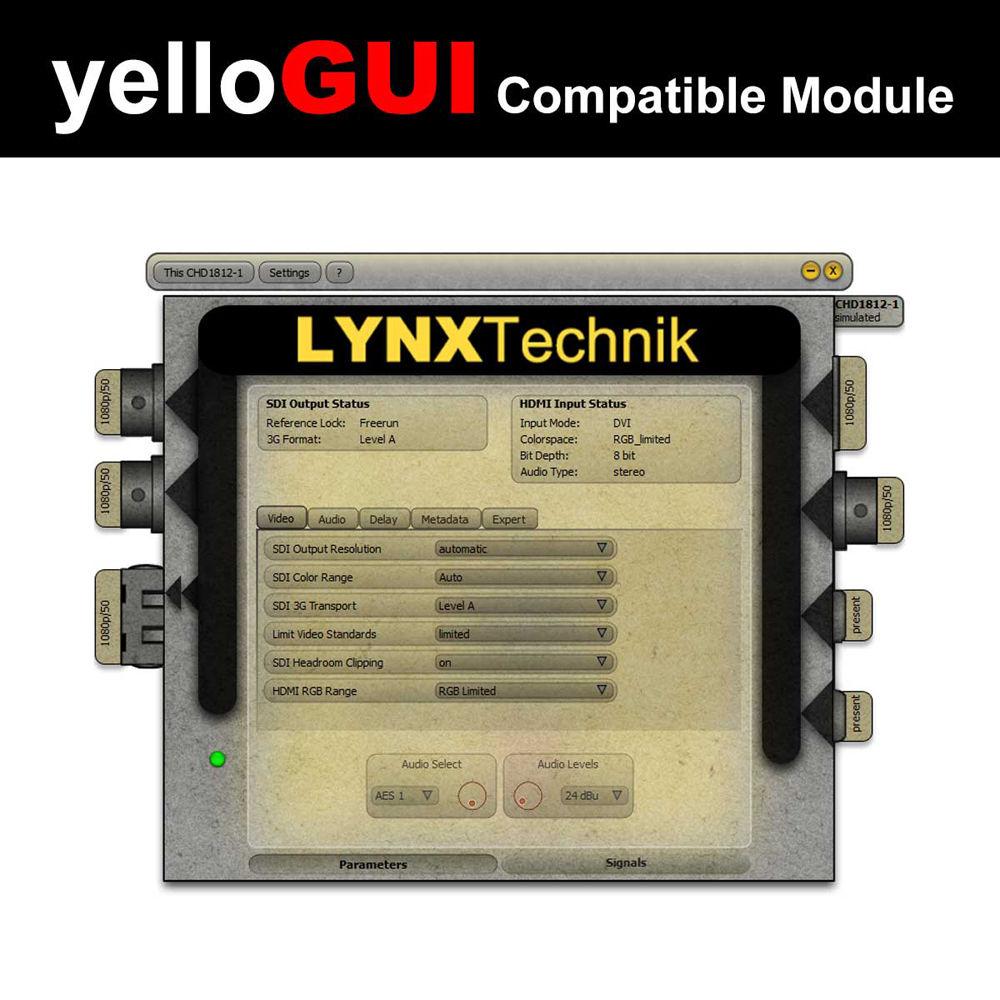

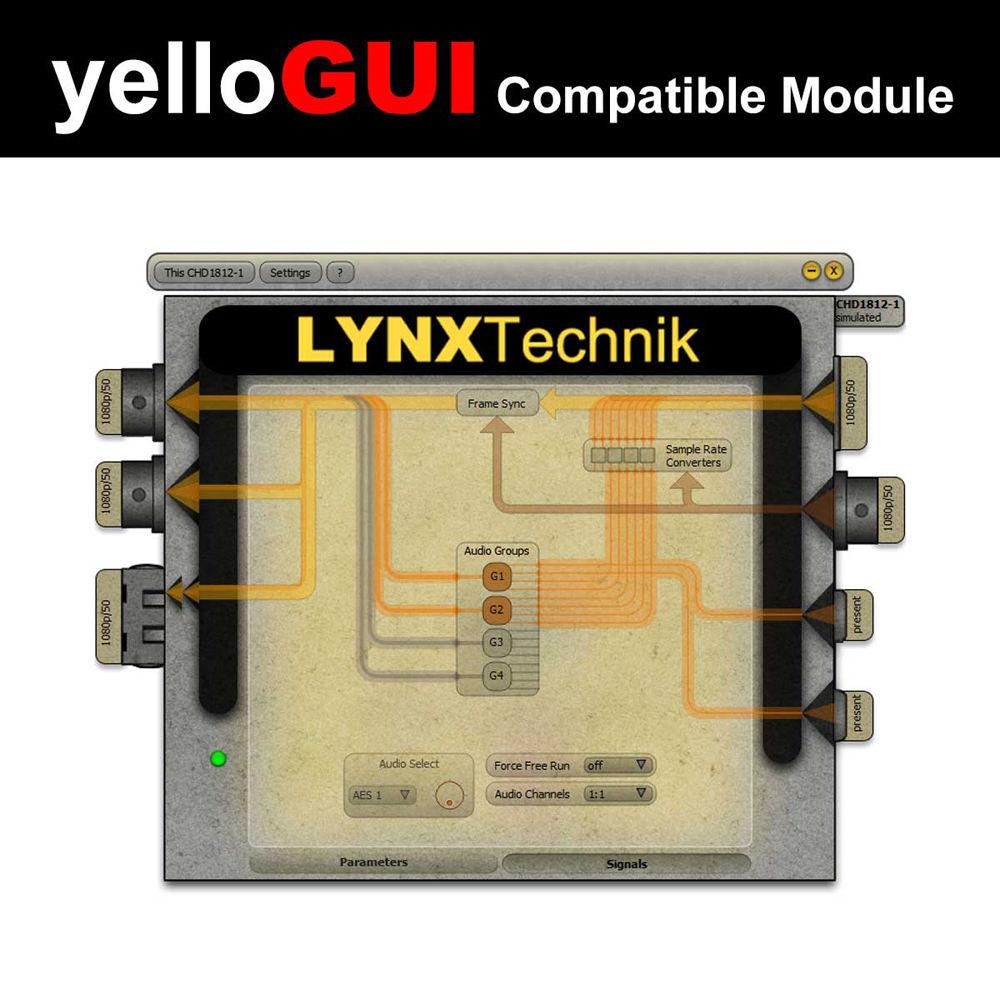

1 x Fiber - requires optional module (not included): OH-TX-1 or OH-TX-3-1550 | | USB | 1 x USB mini type B for yelloGUI utility and firmware updates | | Supported Resolutions | 1080p and 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1080i: 50, 59.94, 60 Hz
SDTV: PAL, NTSC | | Video Standards | HDMI
3D supported
Up to 8 channels embedded audio passed to SDI
Note: Does not pass HDCP-encrypted content
Reference
SDTV: Analog 525 or 625 bi-level sync, black burst or color bars
HDTV: All tri-level sync standards (excepting 1080p: 50, 59.94, and 60 Hz)
Cross lock compatible
SDI
75 ohm BNC connector
SMPTE: 424M, 292M, 259M
3G-SDI, HD-SDI, SD-SDI: 270 Mbp/s to 3 Gbp/s (follows HDMI input)
3D: Supports single-link 3D | | Frame Synchronizer | Functional if valid reference is detected, otherwise operates in free run (asynchronous) mode. External audio and HDMI input are frequency locked to external reference, fully cross lock compatible across standards | | Audio Standards | Balanced Mode: 24, 22, 20, 18, 15, 12 dBu full scale (selectable)
Unbalanced Mode (Line Level): -10 dBV
Selectable SDI audio channel for embedding (channels 1 through 8) - overwrites any HDMI embedded audio present in selected channels
Frequency Response: < ± 0.2 dB at 20 Hz to 20 kHz
A/D Sample Rate: 48 kHz - free run or frequency locked to reference input | | Power Requirements | 12 VDC | | Dimensions | 4.1 x 3.7 x 0.9" / 105 x 95 x 22 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.665 lb | | Box Dimensions (LxWxH) | 10.45 x 9.15 x 3.75" |
