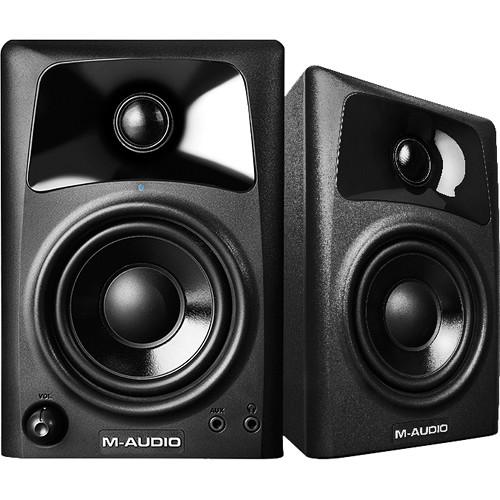

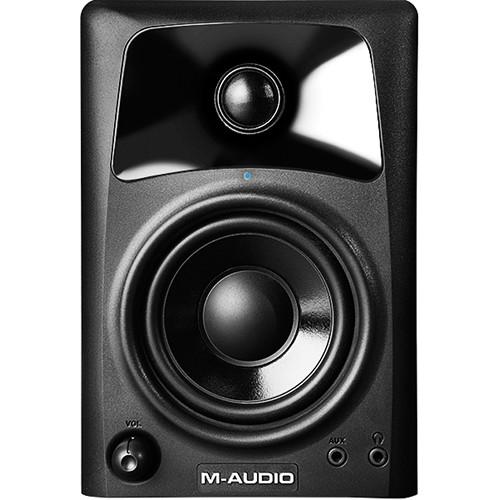

Product description The M-Audio AV32 Compact Desktop Speakers for Professional Media Creation (Pair) use acoustically-inert MDF cabinets to eliminate resonances, and 10W per Channel into 4 ohms per channel into a 3" polypropylene woofer in a bass reflex design. The woofer is complemented by a 1" wave-guided ferrofluid cooled silk dome tweeter to deliver a frequency response of 80 to 20,000 Hz and an RMS SPL level of 101.5 dB at 1 meter.

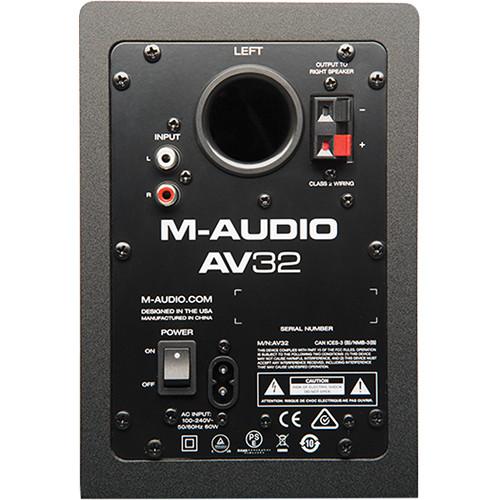

The rear panel of the monitors feature RCA inputs for connecting gaming systems, DJ gear, mixers and more. A front panel 1/8" (3.5mm) stereo auxiliary input allows for the connection of a laptop, smartphone, or other mobile device. A front panel 1/8" headphone output allows you to monitor directly using headphones. The monitors are suitable for a wide range of professional and consumer applications. UPC: 694318017111 In the Box M-Audio AV32 Compact Desktop Speakers for Professional Media Creation (Pair) Power Cord Limited 1-Year Warranty User Manual PDF 905.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio AV32 Compact Desktop Speakers for Professional Media Creation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio AV32 Specs | Type | Two-way desktop reference speaker | | Input Connectors | 2x RCA (left and right line inputs)
1x 1/8" aux input | | Low Frequency Driver | 3.0" (7.6 cm) polypropylene-coated woofer with high-temperature voice coil | | High Frequency Driver | 1.0" (2.5 cm) silk cone tweeter | | Frequency Response | 80 to 20,000 Hz | | Crossover Frequency | 3.3 kHz | | RMS Level | 101.5 dB at 1 m | | SNR | >90 dB (typical, A-weighted) | | Polarity | Positive signal at "+" input produces outward low-frequency cone displacement | | Dynamic Power | 10 W per channel at 4 ohm | | Input Impedance | 10 kilOhm unbalanced | | Input Sensitivity | 100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum | | Protection | RF interference
Output current limiting
Over temperature
Turn on/off transient
Subsonic filter | | Indicators | Blue power LED for aligning wave guide | | Power Requirements | 100 to 120 V at 50/60 Hz
200 to 240 V at 50/60 Hz
Powered via detachable 2-conductor line cord | | Cabinet | Vinyl-laminated MDF | | Dimensions (H x W x D) | 7.9 x 5.3 x 6.3" (20.1 x 13.5 x 16.0 cm) | | Weight | 11.7 lb (5.3 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.3 x 9.8 x 8.2" |
