User Manual for M-Audio BX8 D3 8" 2-Way 150W Powered Studio Monitor Click to enlarge the picture
Contents of the user manual for the M-Audio BX8 D3 8" 2-Way 150W
- Product category: Studio Monitors M-Audio
- Brand: M-Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for M-Audio Studio Monitors
 |
User manual for the M-Audio BX8 D3 8" 2-Way 150W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any M-Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official M-Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a M-Audio product will considerably shorten its lifespan!
|

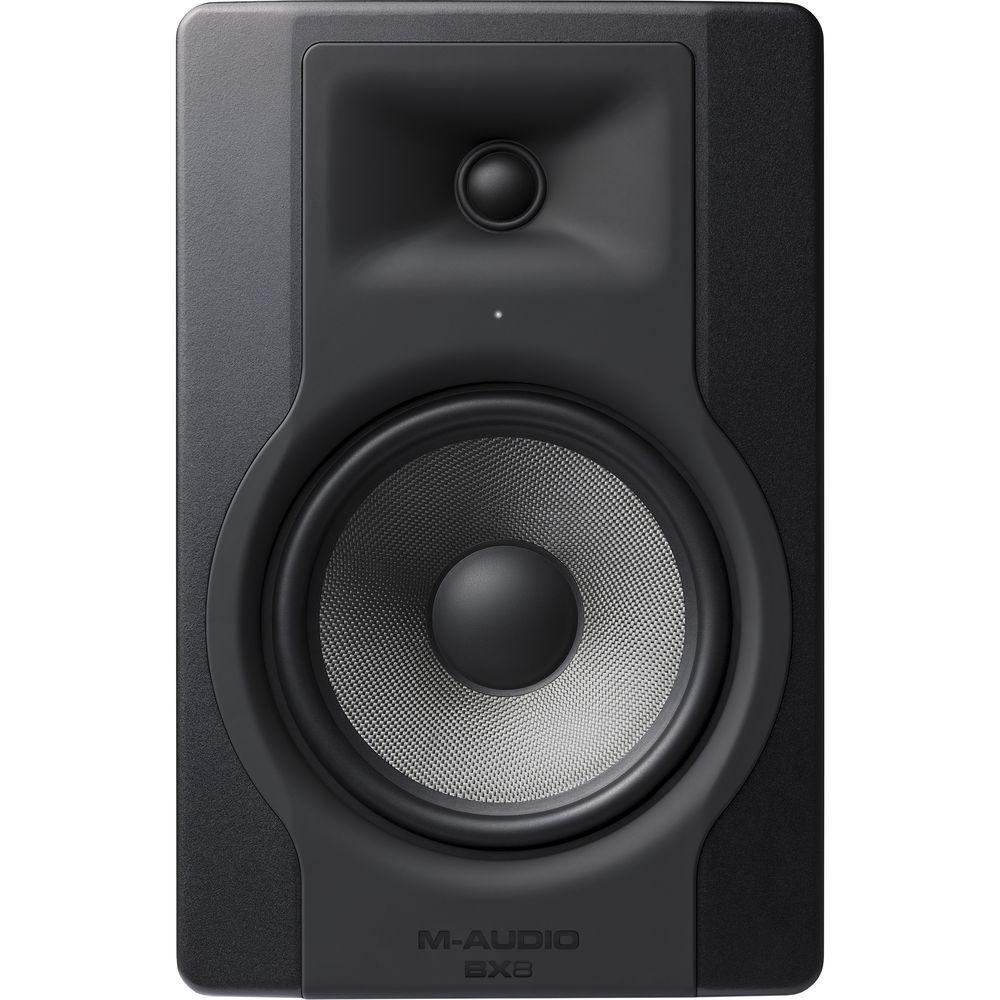

Product description The BX8 D3 from M-Audio is a 2-way, 150W powered studio monitor designed to offer a wide frequency response and easy configuration for mixers, DJs, producers, and recordists in small to medium control rooms, personal studios, and mobile rigs. The monitor produces a frequency response of 37 Hz to 22 kHz, thanks to two Class A/B amplifiers feeding an 8” Kevlar woofer and a 1.25” silk dome tweeter.A rear-mounted bass port delivers extended bass response, while the tweeter’s custom waveguide yields a wide sweet spot and minimized high-frequency scatter. Volume and low-frequency controls are provided so you can tune the monitor to cooperate with the sound of the room. Place the monitor on the supplied acoustic foam pad to decouple it from your table or stands, which aids in reducing unwanted bass vibrations.The BX8 D3 can interface with a variety of equipment, via balanced XLR and balanced/unbalanced 1/4” TRS input jacks. Setup is simple, due to the front-mounted LED, which appears brighter when you are at the ideal angle. - Drivers
- A magnetically shielded 8" military-grade Kevlar woofer provides durability and detailed transient response whilst negating unwanted "cone breakup." It has a high-temperature voice coil and damped rubber surround. The magnetically shielded 1.25" silk dome tweeter delivers high frequencies up to 22 kHz with minimal resonance.
- Enclosure

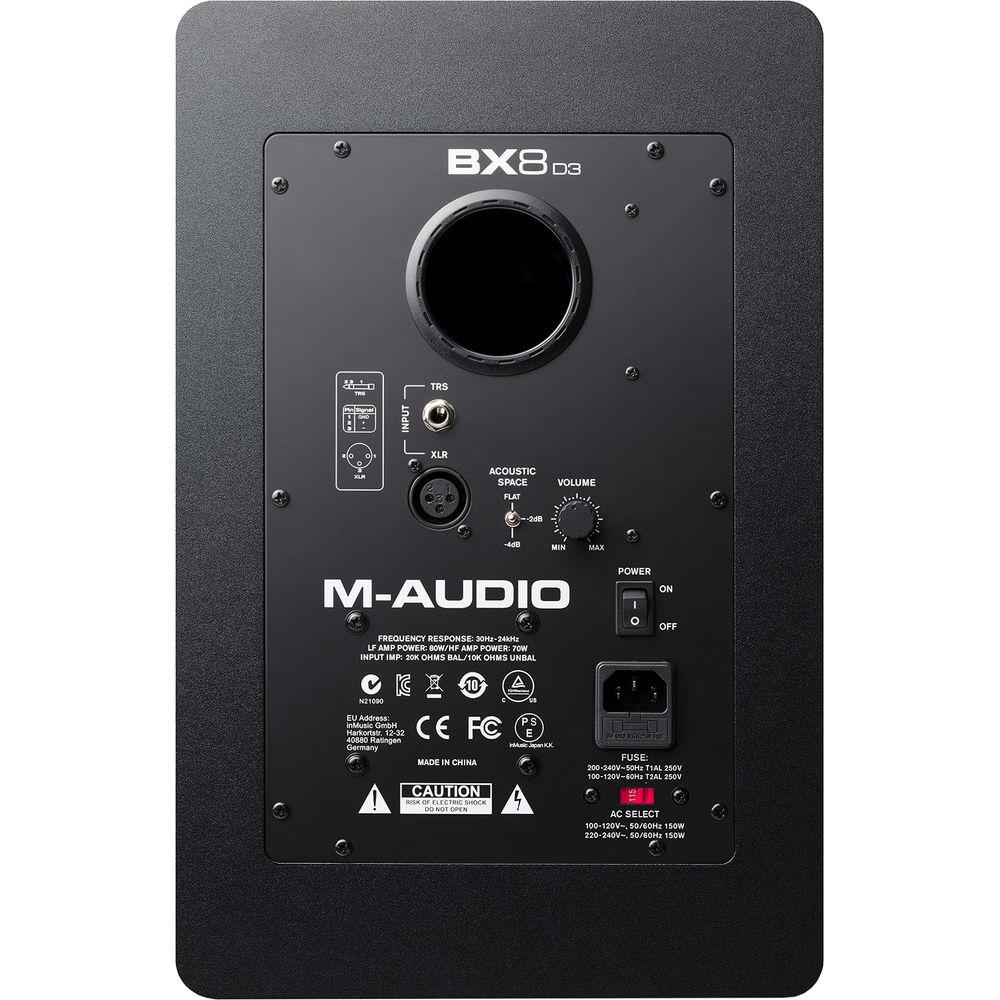

- The rear-mounted bass port yields extended bass response while reducing audible air turbulence that can occur at high sound pressure levels. The tweeter sits in a custom waveguide designed to lessen scatter and yield a wide sweet spot. The process of aligning the monitor's position is simplified, due to the front-mounted LED, which shines brightly when you're located at the ideal angle.
- Amplifiers
- The BX8 D3 has two Class A/B amplifiers, an 80W low-frequency amp and a 70W high-frequency amp. A crossover at 2 kHz ensures that the correct frequencies are fed to each driver.
- Controls
- In addition to adjustable volume, there is a low-frequency "Acoustic Space" control. Based upon the sound of your room, you may wish to tweak the bass response to achieve a certain frequency balance.
- Connectivity
- The BX8 D3 can accept a balanced line-level input at its XLR 3-pin connector. Route balanced or unbalanced signals into the monitor via the 1/4" TRS jack.
UPC: 694318022139 In the Box M-Audio BX8 D3 8" 2-Way 150W Powered Studio Monitor (Single) IEC Power Cable Acoustic Foam Pad Limited 1-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio BX8 D3 8" 2-Way 150W Powered Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio BX8 D3 Specs | Type | 2-way | | Inputs | 1 x XLR 3-pin (balanced)
1 x 1/4" TRS (balanced/unbalanced) | | Drivers | 1 x 8" / 203 mm Kevlar woofer
1 x 1.25" / 32 mm silk dome tweeter | | Amplifier Class | A/B | | Power Output | Low Frequency Amp: 80 W
High Frequency Amp: 70 W | | Magnetically Shielded | Yes | | Frequency Response | 37 Hz to 22 kHz | | Crossover Frequency | 2 kHz | | Input Sensitivity | -12 dBU | | Input Impedance | 10 kOhms (balanced)
20 kOhms (unbalanced) | | Maximum SPL | 114 dB (measured with full-bandwidth pink noise) | | Power | 100 to 120 V, 50/60 Hz
220 to 240 V, 50/60 Hz | | Consumption | 150 W | | Polarity | Positive signal at "Plus" input produces outward low-frequency cone displacement | | Electrical Protection | RF interference
Output current limiting
Over temperature
Turn on/off transient
Subsonic filter
External mains fuse | | Fuse | 100 to 120 V ~ T2AL 250 V
220 to 240 V ~ T1AL 250 V | | Cabinet | Vinyl-laminated, high-acoustic-efficiency MDF | | Dimensions (W x D x H) | 9.8 x 11.9 x 15.1" / 250 x 302 x 384 mm | | Weight | 23.1 lb / 10.5 kg | | | | Package Weight | 30.1 lb | | Box Dimensions (LxWxH) | 20.0 x 16.4 x 14.2" |
