User Manual for M-Audio Code 61 61-Key USB MIDI Keyboard Controller with X Y Touch Pad Click to enlarge the picture
Contents of the user manual for the M-Audio Code 61 61-Key USB MIDI
- Product category: Keyboard Controllers M-Audio
- Brand: M-Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for M-Audio Keyboard Controllers
 |
User manual for the M-Audio Code 61 61-Key USB MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any M-Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official M-Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a M-Audio product will considerably shorten its lifespan!
|

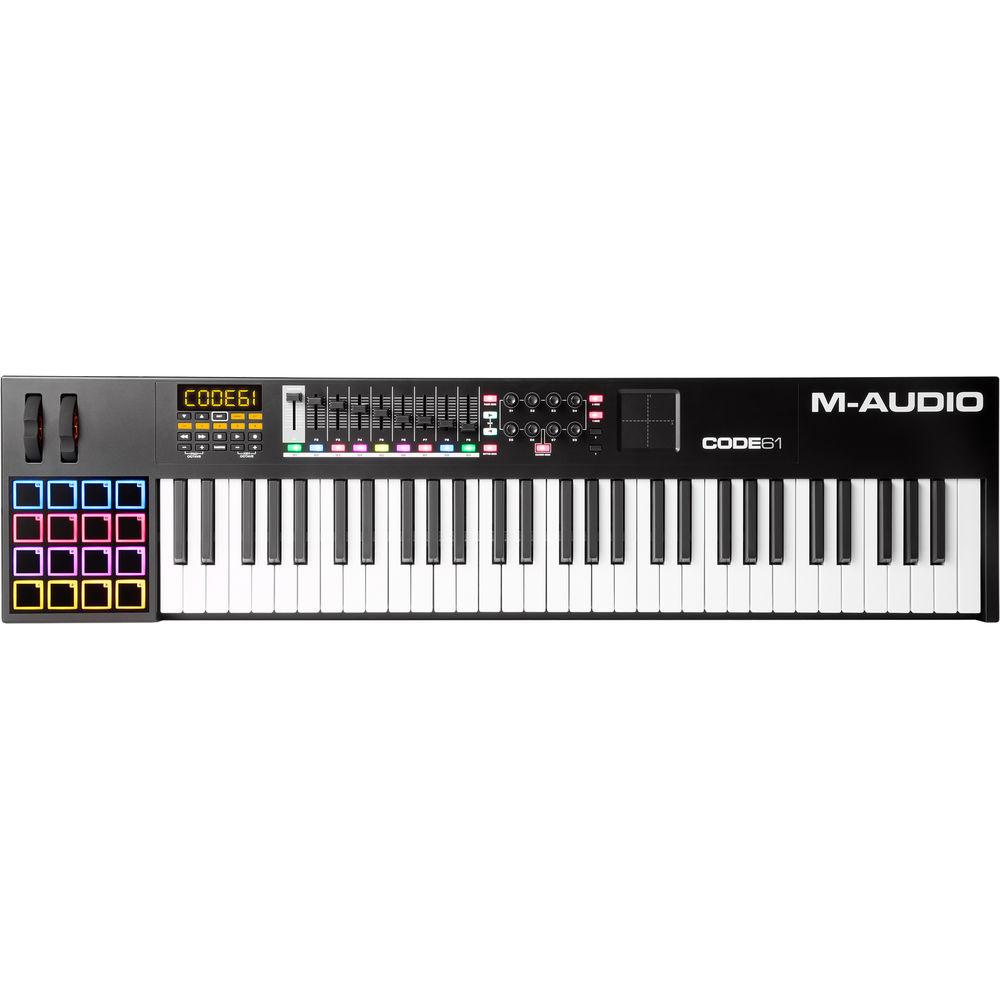

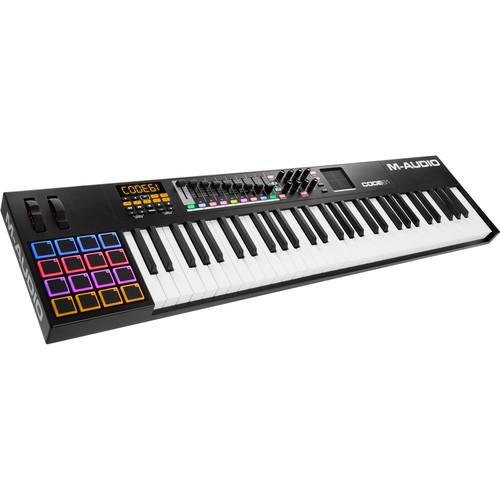

Product description The black Code 61 from M-Audio is a USB bus-powered MIDI keyboard controller that features 61 semi-weighted keys, 16 velocity-sensitive backlit trigger pads, and an X/Y touch pad. This controller is ideal for keyboardists, producers, and composers; it can be used in the studio or onstage.
Featuring a portable yet flexible design, the Code 61 is fitted with assignable pitch & mod wheels, knobs, and buttons. The keyboard can be split into four zones and features assignable faders, while the assignable transport buttons allow you to control your DAW's transport with Mackie Control and HUI modes. Additionally, the controller features sustain & volume pedal inputs and is USB-powered with 5-pin DIN I/O, which allows for sending MIDI data from your computer sequencer to your favorite hardware synths. The Code 61 includes Ableton Live Lite, Hybrid 3.0, Loom by AIR Music Technology, and it ships with a USB cable. -
- 61 full-size, velocity-sensitive keys with aftertouch and four assignable zones for splits and layering
- Fully assignable XY pad for HID control and a unique way for controlling multiple parameters in virtual instruments
- 16 x fully assignable velocity-sensitive trigger pads for beat production, clip launching, and more
- 8 x assignable 360° encoders for manipulating your DAW, virtual instruments, and plugins
- 9 x assignable faders let you control your DAW, virtual instruments, and plugins
- 9 x assignable buttons let you assign keyboard hotkey and MIDI messages for controlling your DAW and virtual instruments
- Mackie/HUI transport control enables for a simple setup with the most popular DAWs
- LCD provides instant parameter feedback
- Sustain and volume pedal input for further creative control
- USB-powered with 5-pin MIDI in and out allows for sending MIDI from computer sequencers to your favorite analog synth
- Includes Ableton Live Lite
- Includes Hybrid 3.0 and Loom by AIR Music Technology
UPC: 694318022351 In the Box M-Audio Code 61 61-Key USB/MIDI Keyboard Controller with X/Y Touch Pad (Black) USB Cable Ableton Live Lite Hybrid 3.0 and Loom by AIR Music Technology Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio Code 61 61-Key USB MIDI Keyboard Controller with X Y Touch Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio CODE 61 BLACK Specs | | | Keyboard | 61 Keys, Synth Action with Aftertouch and Velocity | | MIDI Control Surfaces | 1 x Wheel (Pitch-Bend)
1 x Wheel (Modulation)
16 x Pads (Velocity-Sensitive)
8 x Endless Rotary Encoders
9 x Sliders
9 x Buttons (Assignable)

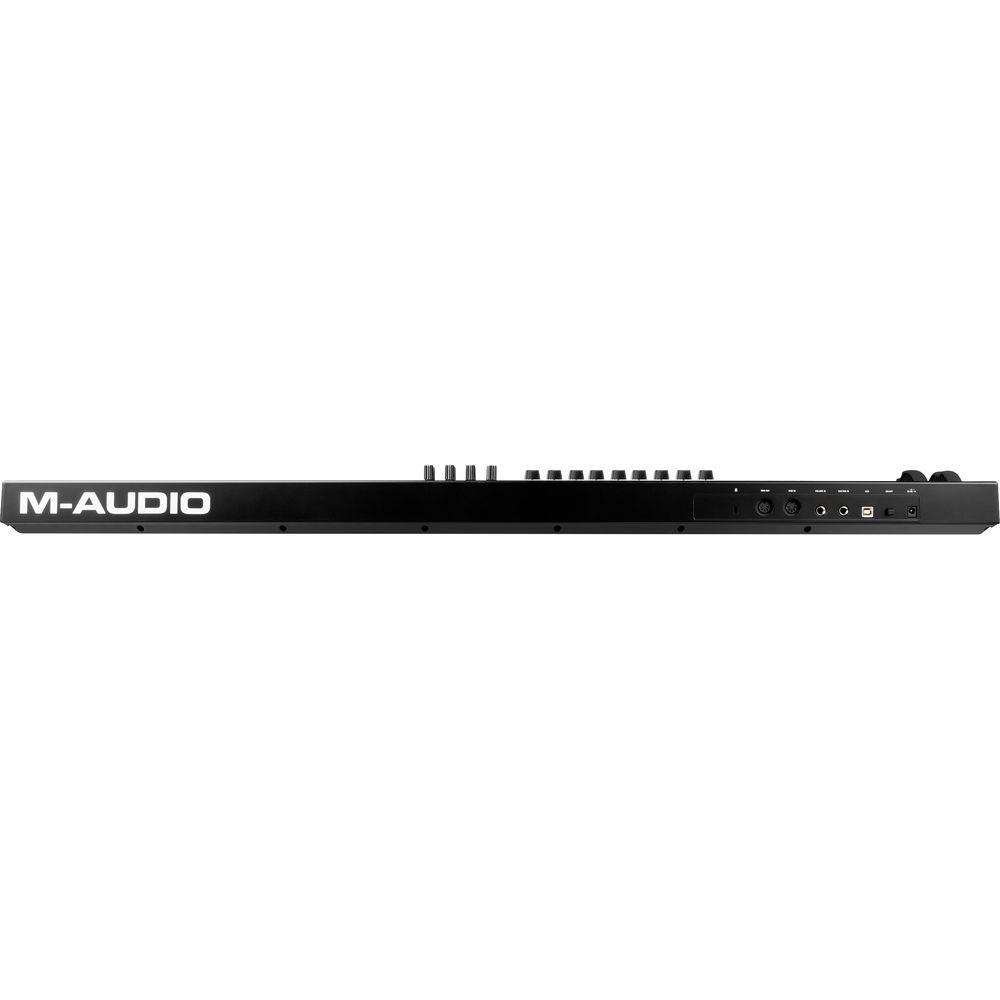

1 x X/Y Pad | | Performance Functions | Multi-Zone Programming, Octave Shift, and Transport Controls | | | | I/O | 1 x USB Type-B
1 x 1/4" (6.3 mm) TS Footswitch/Sustain Input
1 x 1/4" (6.3 mm) TRS Expression Pedal Input
1 x 5-Pin MIDI Input
1 x 5-Pin MIDI Output | | OS Compatibility | Windows 7 or Later
macOS 10.7.5 or Later 32 and 64-Bit | | | | Power Options | AC/DC Power Adapter (Not Included), USB Bus-Power | | AC/DC Power Adapter | 9 VDC at 1 A, Center-Positive (Not Included) | | | | Display | LCD | | Anti-Theft Features | Kensington Security Slot | | Dimensions (W x D x H) | 40.4 x 10.0 x 2.8" / 102.6 x 25.4 x 7.1 cm | | Weight | 11.5 lb / 5.2 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 45.0 x 13.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
