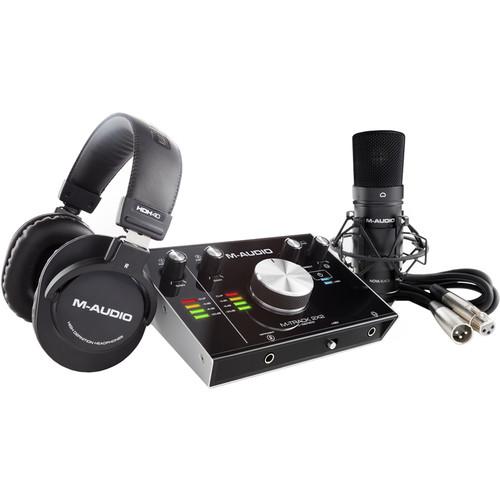

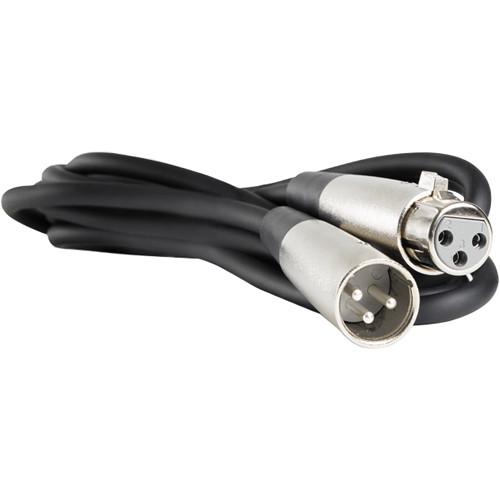

Product description The M-Audio M-Track 2X2 Vocal Studio Pro puts nearly everything you need to record vocals at your fingertips, including an audio interface, a pair of headphones, a condenser microphone, and an included software bundle. All you need to provide is the corresponding computer, an XLR cable, and some vocal cords.

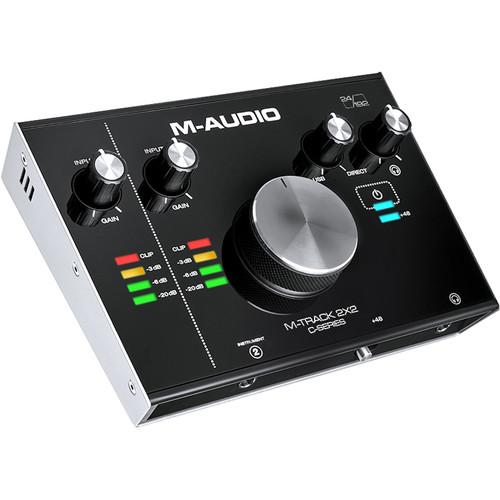

The included M-Track interface gives you two inputs and two outputs. It connects over USB to your computer, from which it also draws its power. Through the M-Track's low-noise preamps and A/D converters, you can capture studio-quality recordings. You'll note an XLR/TRS microphone/line combo input, as well as a 1/4" instrument input specifically designed for guitars or basses plugged directly into the interface.
The M-Track connects to a Mac or Windows computer via a standard USB or USB Type-C port using one of the two included cables. The Hi-Speed USB connection combined with the USB/Direct balance knob delivers zero-latency monitoring of the inputs, and an included software bundle provides everything needed for the solo artist to start recording.
Also included with this package is the Nova Black microphone, a cardioid condenser mic with a wide and smooth frequency response. A pair of HDH40 headphones can be used to monitor vocals as your recording, or can be used to listen back to what you've recorded as you mix with the included software bundle. - Key Features of the Interface
-
- 24-bit / 192 kHz resolution for professional recording and monitoring
- All new Crystal Preamps deliver pristine, transparent sound
- Phantom Power (+48V) to accommodate condenser microphones
- Hi-Speed USB connection with USB / Direct balance knob for zero-latency monitoring
- Includes both standard USB and USB-C connection cables
- Dedicated XLR-1/4" TRS combo input and 1/4"-instrument input
- Rugged metal chassis; large central control for easy volume adjustment; table-top design provides easy access to critical controls
- Stereo 1/4" outs
- 1/4" headphone out with independent level control

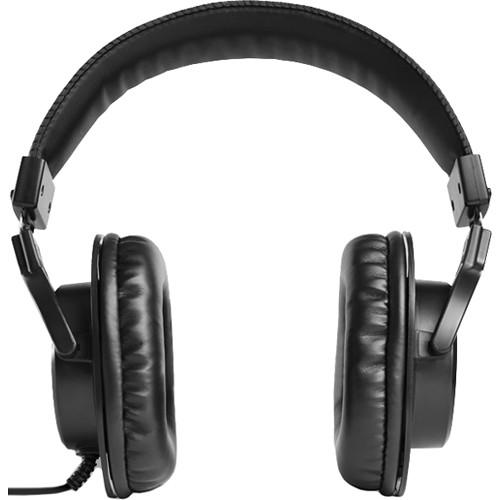

- HDH40 Headphones at a Glance
-
- 15 Hz - 22 kHz frequency response
- 40mm drivers with neodymium magnets for an immersive audio experience
- Plush leatherette cushioning with a comfortable over-the-ear design

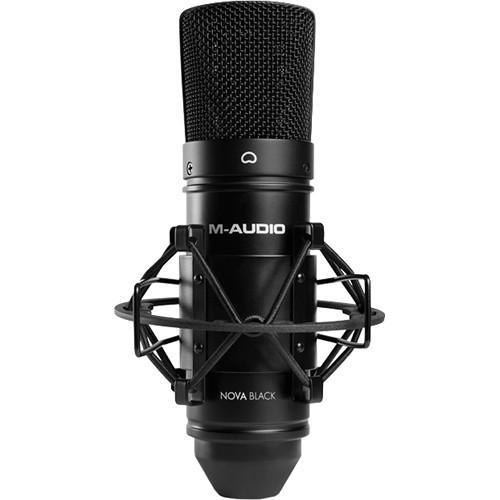

- Nova Black Condenser Microphone Features
-
- Studio-grade large-diaphragm condenser microphone with high sensitivity and low self-noise
- Cardioid polar pattern
- Smooth, wide-range frequency response
- Included Software:
AIR Creative FX collection (20 AU / VST FX plug-ins as made famous by Pro Tools)
AIR Strike
AIR Xpand!2
AIR Mini Grand
Steinberg Cubase LE UPC: 694318023167 In the Box M-Audio M-Track 2x2 Vocal Studio Pro Vocal Production Package Nova Black Microphone M-Track 2X2 USB Audio Interface svasvwyzstsffevyfbcy HDH40 Closed-Back Headphones USB Standard Cable USB Type-C Cable Software Downloads Limited 1-Year Warranty User Manual PDF 7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio M-Track 2x2 Vocal Studio Pro Vocal Production Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio M-Track 2X2 Vocal Studio Specs | | | Connections | 1 x XLR/TRS combo mic/line input
1 x 1/4" TS instrument input
2 x 1/4" TS main output (stereo)
1 x 1/4" TRS headphone output
1 x USB Type-C port | | EIN | -128 dBu (max gain, 150-Ohm source, A-weighted, mic input 1) | | Frequency Response | Mic Input 1: 20 Hz to 20 kHz (+0.05 dB)
Line Input 1: 20 Hz to 20 kHz (+0.05 dB)
Instrument Input 2: 20 Hz to 20 kHz (+0.05 dB)
Main Outputs (L/R): 20 Hz to 20 kHz (+0.06 dB) | | Dynamic Range | Mic Input 1: 104 dB (A-weighted)
Instrument Input 2: 100 dB (A-weighted)
Main Outputs (L/R): 102 dB (A-weighted) | | Signal / Noise | Mic Input 1: 104 dB (+1 dBu, A-weighted)
Line Input 1: 101 dB (1 kHz, +4 dBu, A-weighted)
Instrument Input 2: 102 dB (+4 dBu, A-weighted)
Main Outputs (L/R): 102 dB (A-weighted) | | THD & Noise | Mic Input 1: 0.003%
Line Input 1: 0.003%
Instrument Input 2: 0.004%
Main Outputs (L/R): 0.005%
Headphone Output: 0.005% | | Gain Range | Mic Input 1: 55 dB
Line Input 1: 55 dB
Instrument Input 1: 24 dB | | Maximum Input Level | Mic Input 1: +1.5 dBu
Line Input 1: +16 dBu
Instrument Input 2: +6 dBu | | Maximum Output Level | +7 dBu (1 kHz, -1 dBFS) | | Impedance | Instrument Input 2: 1 MOhm
Headphone Output: 10 Ohms | | Power | Bus-powered over USB | | Dimensions (W x D x H) | 6.0 x 2.8 x 7.8" / 15.2 x 7.1 x 19.8 cm) | | | | Type | Back Electret condenser microphone | | Element | aluminum-diaphragm capsule, 0.7" / 18 mm | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -38 dB (0 dB = 1 V/Pa at 1 kHz) | | Rated Impedance | 200 Ohms | | Phantom Power Requirements | 48 V | | Signal to Noise Ratio | 77 dB | | Current Consumption | 3 mA | | | | Type | Dynamic, closed | | Driver | 1.6" / 40 mm | | Frequency Response | 15 Hz to 22 kHz | | Sensitivity | 95 dB ±3 dB | | Rated Impedance | 32 Ohms | | Earpads | Letherette | | Cable Length | 9.8' / 3 m | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 22.25 x 11.0 x 5.5" |
