User Manual for M-Audio M-Track Eight - 8-Input USB Audio Interface Click to enlarge the picture
Contents of the user manual for the M-Audio M-Track Eight - 8-Input USB
- Product category: Audio Interfaces & Systems M-Audio
- Brand: M-Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for M-Audio Audio Interfaces & Systems
 |
User manual for the M-Audio M-Track Eight - 8-Input USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any M-Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official M-Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a M-Audio product will considerably shorten its lifespan!
|

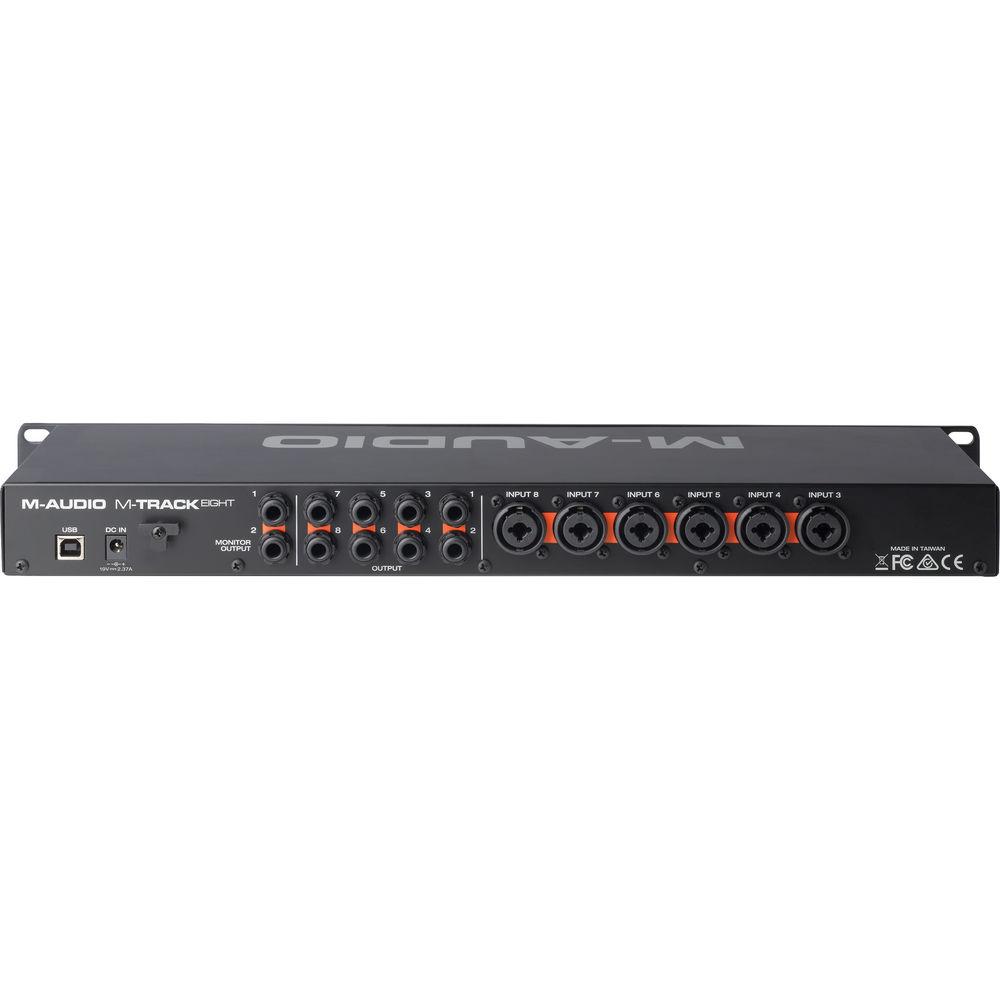

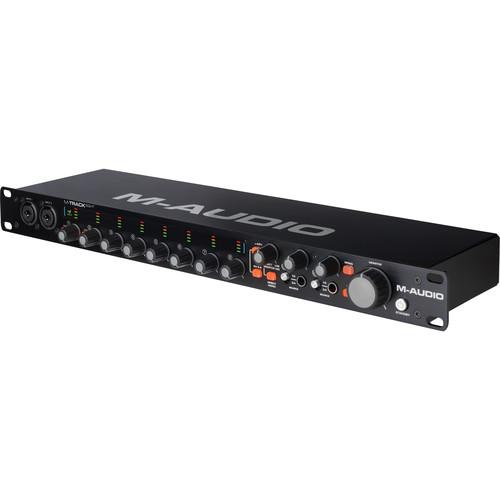

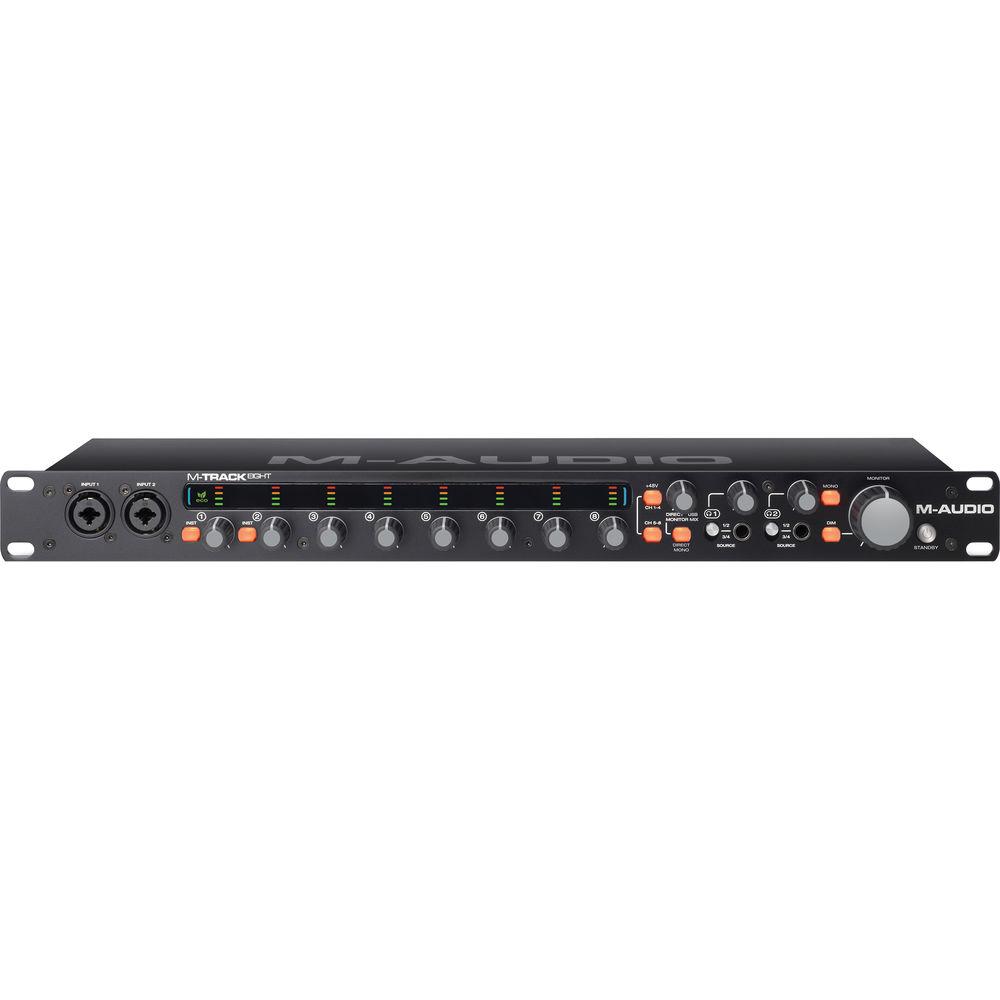

Product description The M-Track Eight from M-Audio is an 8-input USB audio interface that is designed for recording high-quality audio in your home or professional studio. Eight combo XLR+1/4" inputs accommodate a multitude of sources, from phantom-powered microphones, to guitars, to keyboards. Eight balanced 1/4" outputs offer versatile routing to monitoring and outboard equipment, plus it features dual headphone outs with selectable source for separate mixes and monitoring.
M-Track Eight features audio recording with up to 24-bit/96 kHz resolution, and also offers ultra-low latency monitoring of the input signal either through the speakers or headphones. The interface connects to your computer via USB 2.0 and easily integrates into your studio space with its standard 1U 19" rack size.
Cubase 7 LE comes bundled with the M-Track Eight for out-of-the-box music creation, giving you a powerful software environment to record, edit, and mix your songs. - Features:
-
- 8-channel USB audio interface
- 8 XLR+1/4″ combo inputs with individual metering
- Pristine and precise audio recording with up to 24-bit/96 kHz resolution
- High-headroom inputs with Octane Preamp Technology
- Dedicated line-input circuitry for clean, professional recordings
- 2 front-panel instrument inputs for easy access
- Selectable phantom power (Channels 1-4; 5-8) for using condenser microphones
- Dual headphone outs with selectable source for custom mixes and monitoring
- 8 balanced 1/4″ outputs and dedicated control room output
- Zero-latency monitoring with USB/Analog Direct Balance control
- Standard 1U 19" rack size with durable metal construction
- Includes Cubase 7 LE for out-of-the-box music creation and up to 8 channels of simultaneous audio recording
UPC: 694318015872 In the Box M-Audio M-Track Eight - 8-Input USB Audio Interface USB Cable Limited 1-Year Warranty User Manual PDF 2.3mbebayyxyebffqdbadfffcwrctetuyxazy Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio MTRACK8XUS Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | None | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Hi-Z Inputs:
20 Hz to 20 kHz +0.2 dB
Interface:
20 Hz to 20 kHz +0.1 dB
Line Inputs:
20 Hz to 20 kHz +0.1 dB
Line Outputs:
20 Hz to 20 kHz +0.1 dB
Monitor Outputs:
20 Hz to 20 kHz +0.1 dB | | Gain Range | Hi-Z Inputs:
30 dB
Line Inputs:
29 dB
Mic Inputs:
58 dB | | Max Input Level | Line Inputs:
+16 dBu
Hi-Z Inputs:
+9 dBu
Mic Inputs:
+12 dBu | | Max Output Level | Line Outputs:
+10 dBu
Monitor Outputs:
+28 dBu | | Dynamic Range | Hi-Z Inputs:
112 dBA
Interface:
111 dBA
Line Inputs:
112 dBA
Line Outputs:
113 dBA
Monitor Outputs:
112 dBA | | Impedance | Hi-Z Inputs:
1 MOhm
Line Outputs:
51 Ohms | | THD+N | Hi-Z Inputs:
0.001%
Line Inputs:
0.002%
Line Outputs:
0.004%
Monitor Outputs:
0.003% | | THD | 0.002% | | SNR | Hi-Z Inputs:
111 dBA
Interface:
111 dB
Line Inputs:
111 dBA | | EIN | Mic Inputs:
-132 dBu (A-Weighted)
-126 dBu | | | | AC/DC Power Adapter | 19 V at 2.37 A, Center-Positive (Included) | | | | Dimensions | 19 x 5.9 x 1.7" / 48.3 x 15 x 4.3 cm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 21.4 x 9.5 x 3.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
