User Manual for M-Audio M3-8 3-Way Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the M-Audio M3-8 3-Way Active Studio Monitor
- Product category: Studio Monitors M-Audio
- Brand: M-Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for M-Audio Studio Monitors
 |
User manual for the M-Audio M3-8 3-Way Active Studio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any M-Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official M-Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a M-Audio product will considerably shorten its lifespan!
|

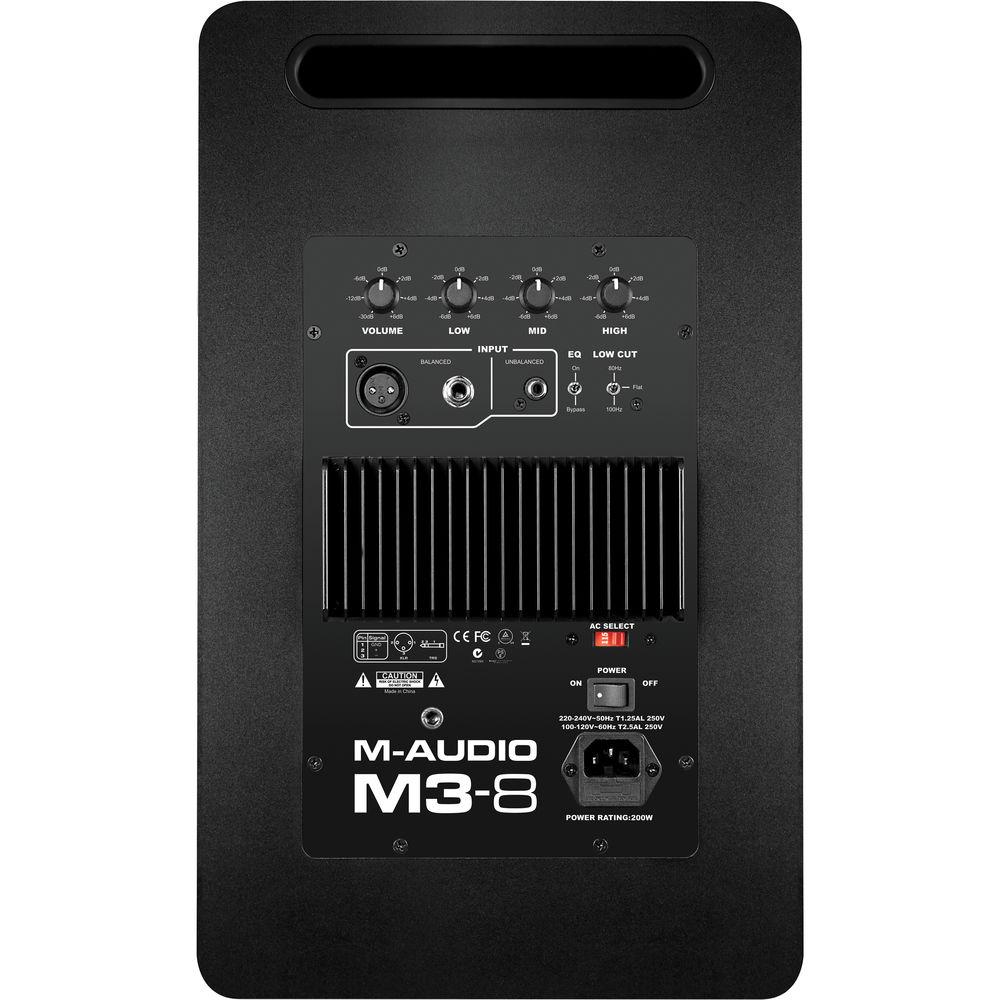

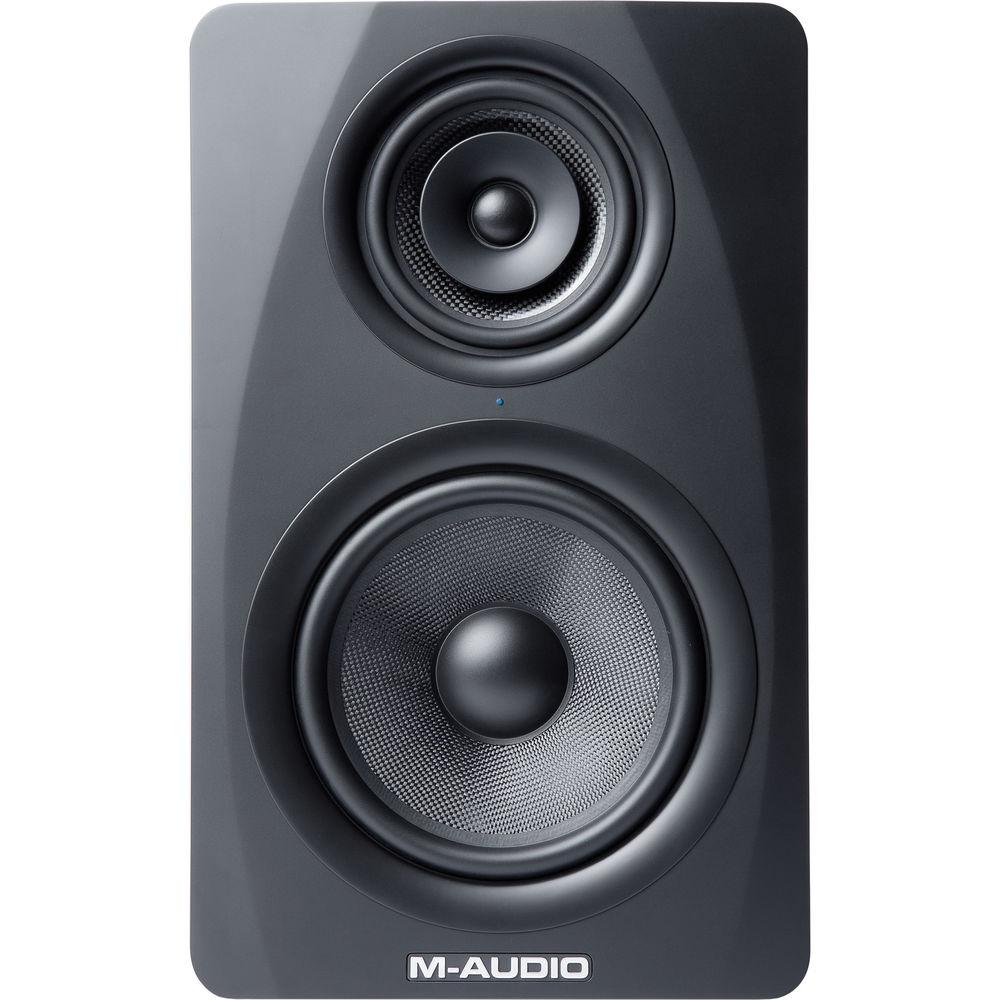

Product description The single M3-8 3-Way Active Studio Monitor from M-Audio is designed to bring your mixes to the next level utilizing three individual class A/B amplifiers; high-quality low-, mid-, and high-frequency drivers; and a precision-designed cabinet and baffle. Whether you're mixing a dynamic 100-piece full orchestra, a full-throttle rock band, or high-energy electronic music, this monitor enables you to make confident and precise adjustments to your recordings.It is built with an 8" woven Kevlar low-frequency woofer, a 5" woven Kevlar midrange driver, and a 1" silk dome tweeter with an integrated waveguide. There are XLR and 1/4" balanced inputs and a RCA unbalanced input on the rear panel. In addition, there is a 3-band EQ with bypass and a switchable low-cut filter also on the rear panel.The M3-8 monitor delivers three-way sound with midrange detail, higher power-handling, and broader sound coverage—from the same size cabinet as a standard two-way monitor. - In-Line MF/HF Design
- The midrange and tweeter are mounted in-line with each other at precisely the same point in space. This means the sound of the two drivers (midrange and treble) reaches your ears at the same time

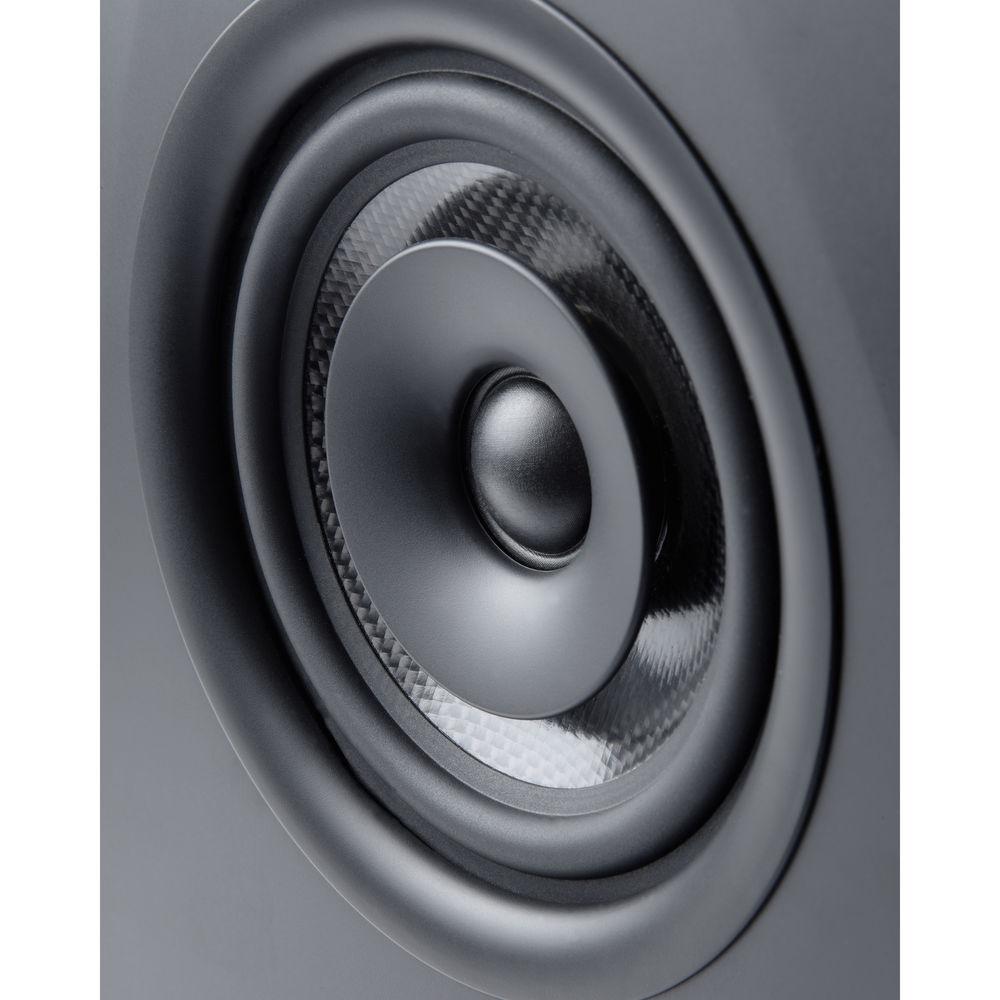

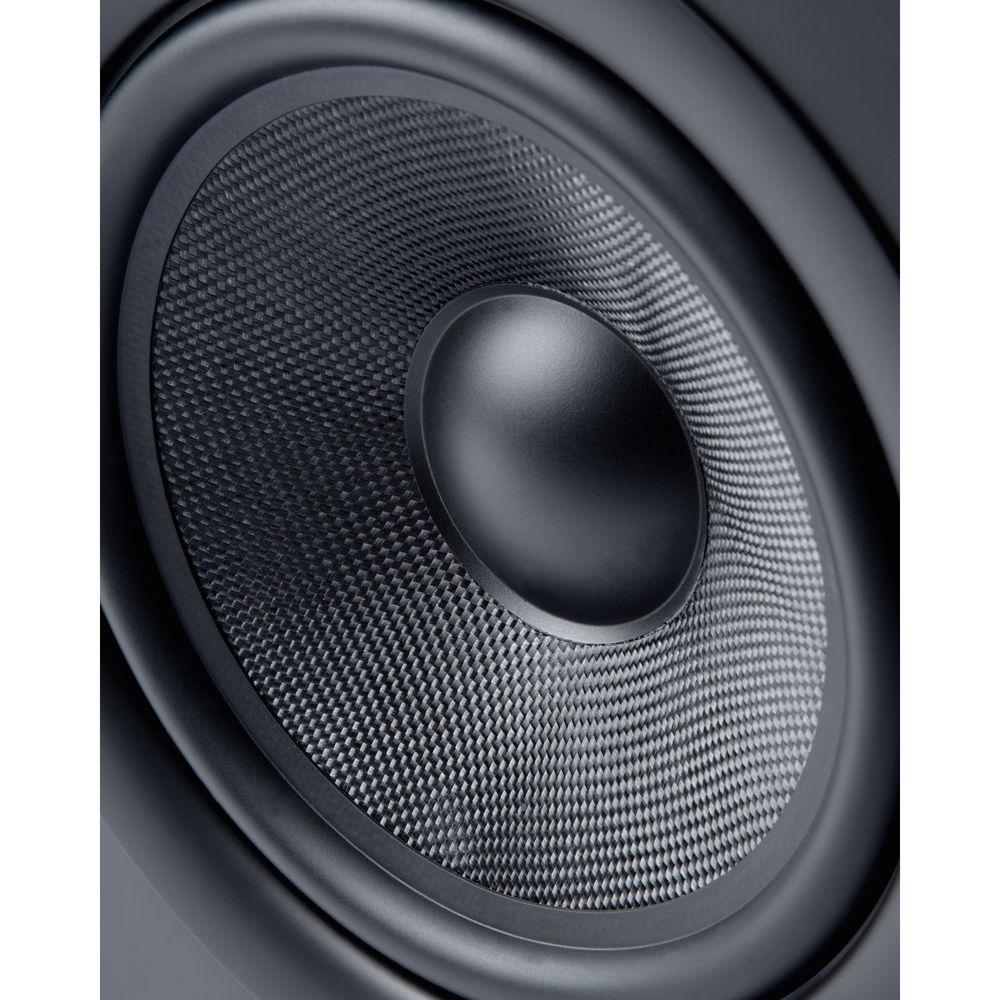

- Kevlar Low and Mid-Frequency Drivers
- Kevlar is used in both the M3-8's 8" woofer and the 5" midrange, giving those units fast transient attack, sensitivity, and resistance to cone flexing
- Silk Dome Tweeter with Ferro-Fluid Cooling
- The 1" woven silk dome tweeter uses Ferro-fluid voice coil cooling for added reliability and delivers no harshness or listening fatigue
- Custom Waveguide
- The tweeter is mounted in an integrated waveguide. It focuses and directs the treble energy into the listening field and ensures a solid and stable sonic image, which minimizes random acoustic scatter that distracts from the recording's playback
- Precision-Designed Baffle and Cabinet
- The baffle is chamfered at the top edges to add in dispersion and reduce edge diffraction. The cabinet's internal bracing provides a solid platform for the drivers to launch their sound, and the port has been calibrated for the optimum bass response
- Three Individual Class A/B Amplifiers
- Three individual internal amplifiers provide power to each of the three speaker elements. They are tailored to the drivers and are matched for smooth operation and system management. A total of 220 watts of Class A/B amplification empowers the M3-8 with ample headroom for even the loudest mixes
In the Box M-Audio M3-8 3-Way Active Studio Monitor (Single) AC Power Cable Limited 1-Year Warranty User Manual PDF 1.2mbzcwuqwdereudzqdzfffqdvzfavscdwbzdrssbd Table of Contents
|
Upload User Manual
Have you got an user manual for the M-Audio M3-8 3-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersM-Audio M3-8 Specs | Material of Construction | Wood front baffle with vinyl-laminated cabinet | | Frequency Response | 38 Hz to 22 kHz | | Crossover Frequency | Low to Mid: 450 Hz
Mid to High: 3.9 kHz | | Amplifier Power | Low-Frequency: 150 W
Mid Frequency: 35 w
High-frequency: 35 W
LF Cutoff Switch: Flat, 60 Hz, 80 Hz | | EQ Controls | LF: ± 6 dB boost/cut at 100 Hz
MF: ± 6 dB boost/cut at 1 kHz
HF: ± 6 dB boost/cut at 10 kHz
Bypass switch | | Polarity | Positive signal at + input produces outward LF cone displacement | | Input Impedance | 20 kOhms balanced
10 kOhms unbalanced | | Input Sensitivity | 85 mV pink noise input produces 90 dBA output SPL at 1 meter (volume at max.) | | Protection | Output current limiting; over-temperature; transient on/off protection to prevent speaker "pops"; subsonic filter; external mains fuse | | Dimensions (W x H x D) | 10.6 x 17.1 x 11.2" (268 x 434 x 285 mm) | | Weight | 28.2 lb (12.8 kg) | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 21.4 x 15.7 x 14.6" |
