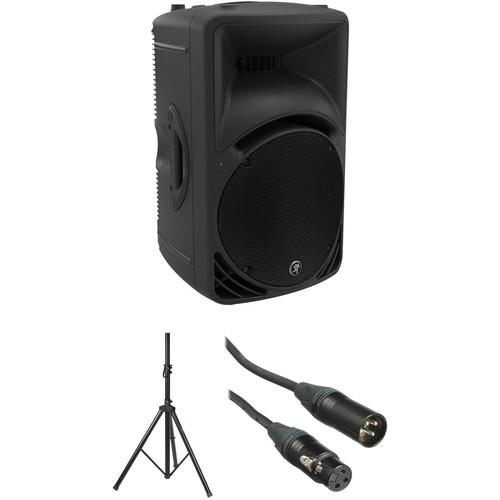

User Manual for Mackie 1000W Portable Powered Loudspeaker With Stand and XLR Cable Kit Click to enlarge the picture
Contents of the user manual for the Mackie 1000W Portable Powered Loudspeaker With
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
|
User manual for the Mackie 1000W Portable Powered Loudspeaker With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description This Kit consists of a Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker as well as a steel speaker stand for supporting the loudspeaker and a XLR-3M to XLR-3F cable for connecting the speaker to your mixer or other compatible audio source. The system is suitable for small crowd live sound reinforcement applications such as public speaking, concerts, or DJing where a single mono source is sufficient. - Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker The Mackie SRM450 is a powered loudspeaker that features a 12" high-output woofer and a 1.4" titanium dome compression driver. With 1000 watts of power, you get the high output you need in a package that is designed to be tough, lightweight and portable.
Featuring one-button speaker mode selection for scenario-specific voicing (PA, DJ, Monitor and Soloist), the speaker allows you to customize your sound to best fit your application. Complete with an integrated, gain adjustable 2-channel mixer that features two XLR/TRS Combo inputs and a stereo RCA input, the SRM450 can handle anything from mics to guitars to MP3 players and more. - Features:
-
- 12" high-output woofer
- 1.4" titanium dome compression driver
- Eliminate feedback with one-button automatic "Feedback Destroyer"
- Precision 2-way crossover
- Driver time alignment & phase correction
- System protection / limiting
- Monitor-specific angle and voicing mode perfect for cutting through on stage
- Flyable for permanent install, both vertically and horizontally
- Durable, portable design
- Weight: 37.0 lb (16.8 kg)
UPC: 663961044225 - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - SRM450 - 1000W 12" Portable Powered Loudspeaker suqfrrzwec
- Limited 3-Year Warranty for Electronics
- Limited 2-Year for Drivers
- Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1000W Portable Powered Loudspeaker With Stand and XLR Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker
| | | Configuration | Active | | Total Power Capacity | 500 W RMS
1000 W Peak | | Amplifier Power Rating | LF:
400 W RMS
800 W Peak
HF:
100 W RMS
200 W Peak | | Amplifier Class | LF:
Class-D
HF:
Class-AB | | | | HF Driver | 1 x 1.4" / 36 mm Titanium Tweeter | | LF Driver | 1 x 12" / 304.8 mm Woofer | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 47 Hz to 20 kHz -3 dB
42 Hz to 23 kHz -10 dB | | Maximum SPL | 128 dB SPL | | Coverage Angle | 90° H x 45° V | | I/O Impedance | Input:
8 kOhms (Balanced)
10 MOhms (Unbalanced)
25 kOhms (Unbalanced) | | THD | <1% | | Protections | Power Supply, RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Stereo RCA Input
1 x XLR Male Balanced Thru Passive when the Ch 1 / Mix switch is in the "out" (Ch 1) position. Active when the Ch 1 / Mix switch is in the "in" (Mix) position | | | | Crossover | 3 kHz | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 160 W | | | | Mounting | 1 x Pole Socket
3 x M10 | | Cooling | Convection | | Construction Material | Metal Grille, Polypropylene | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 26.1 x 16.0 x 14.8" / 663.0 x 406.0 x 376.0 mm | | Weight | 37 lb / 16.8 kg | | | | Box Dimensions (LxWxH) | 27.5 x 16.5 x 15.0" | - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
