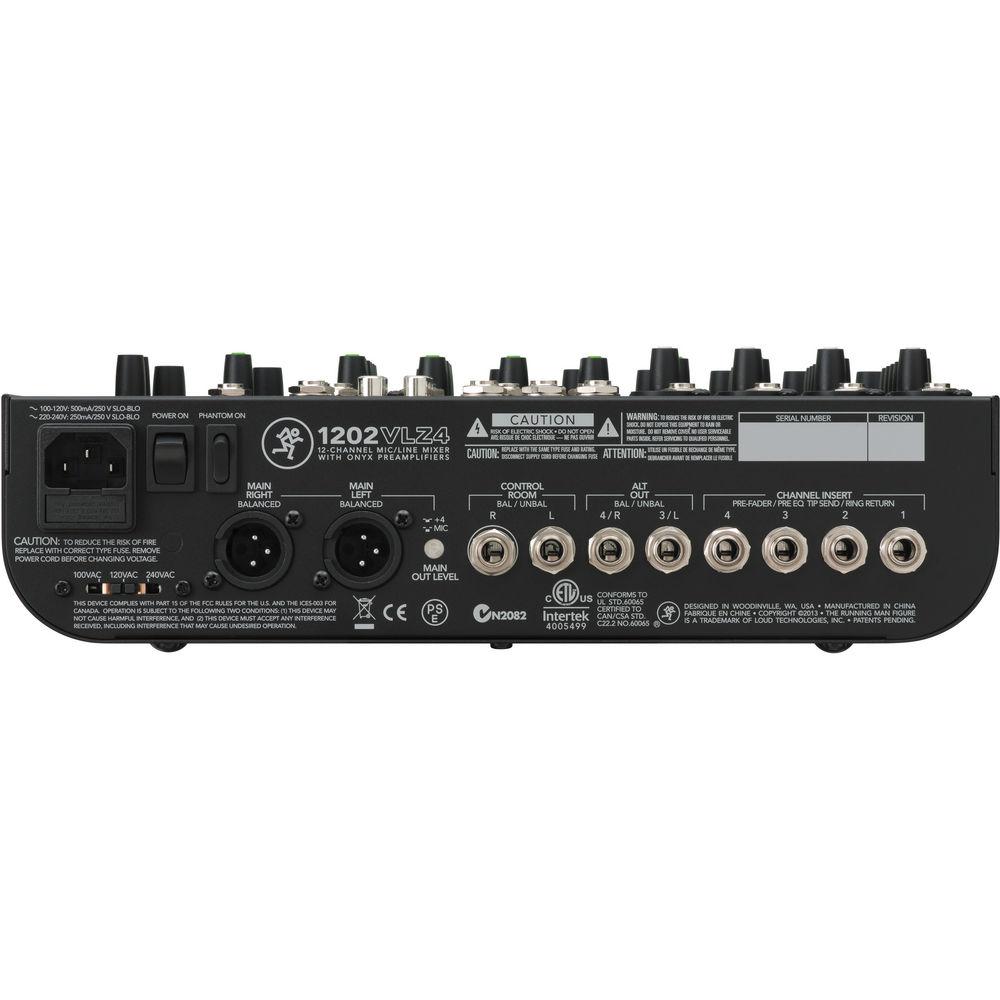

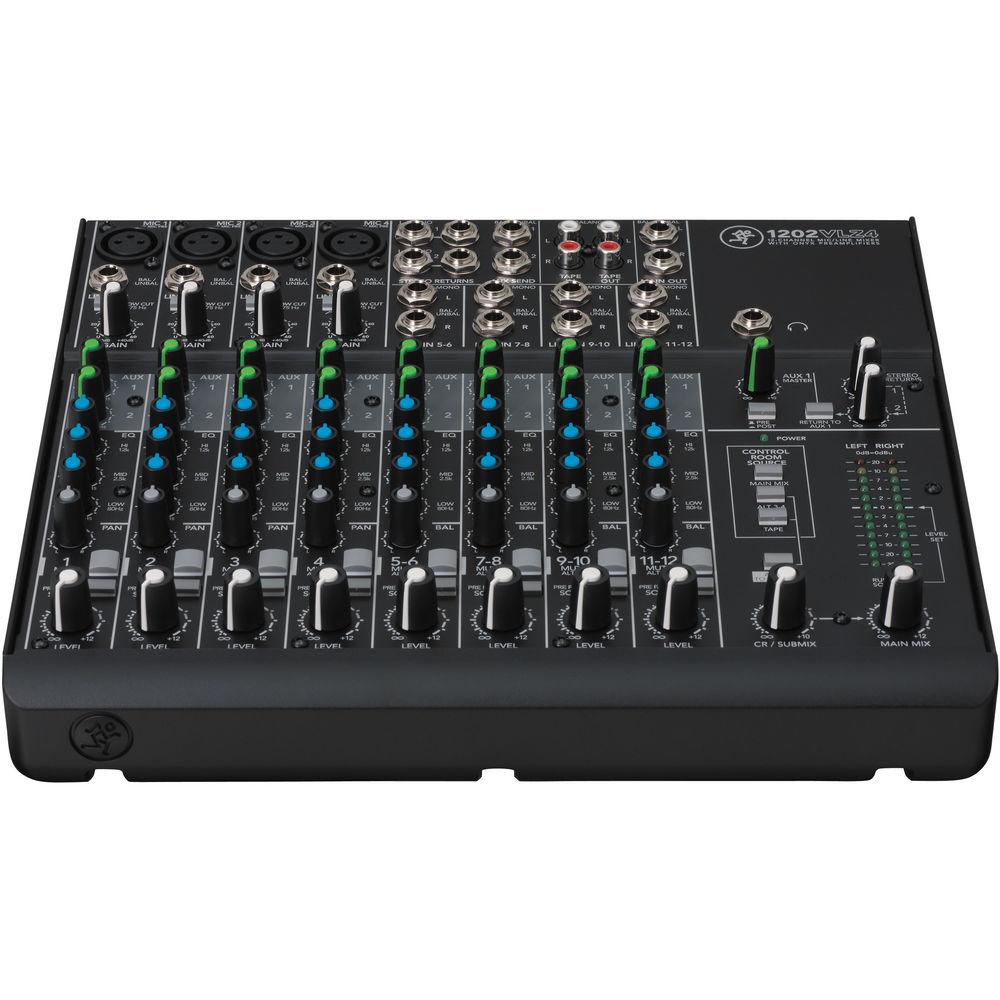

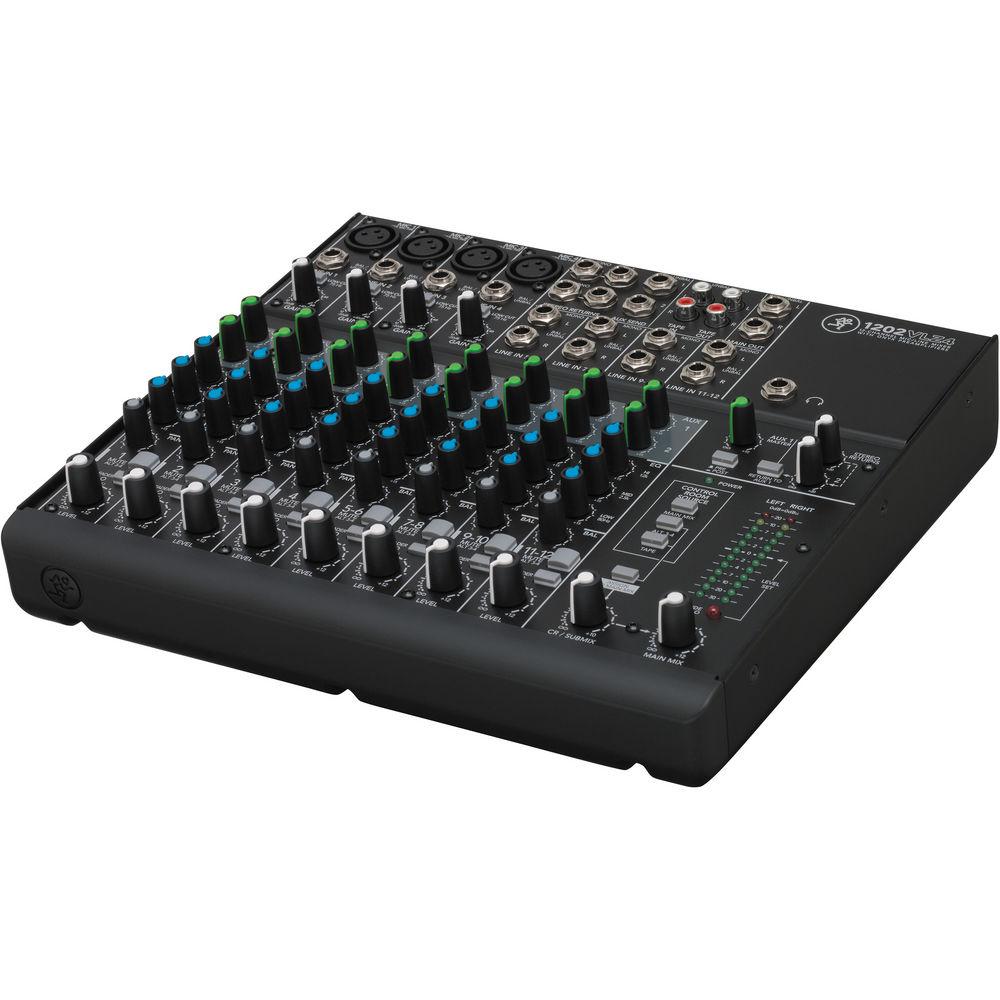

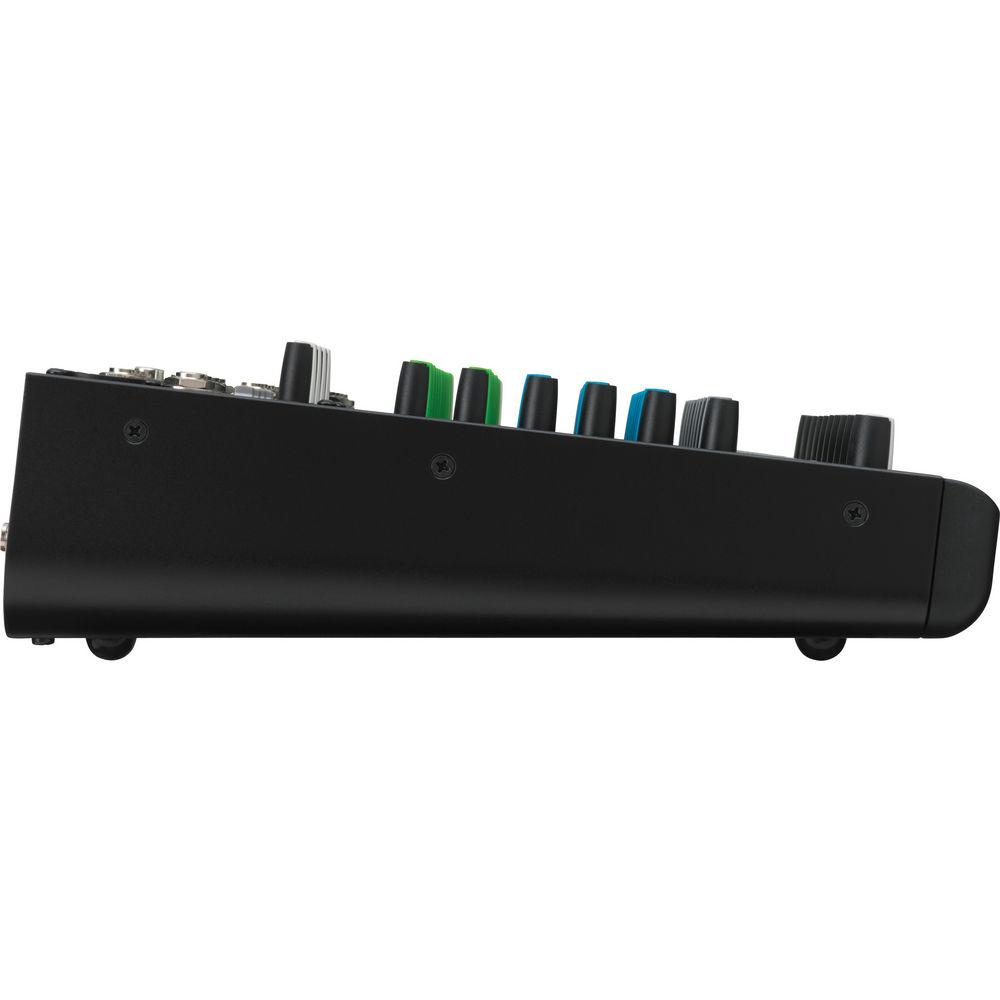

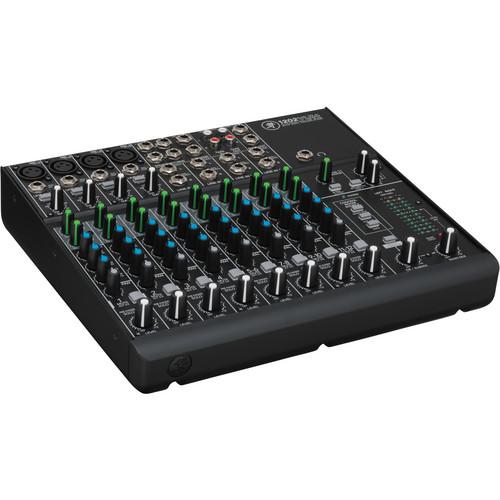

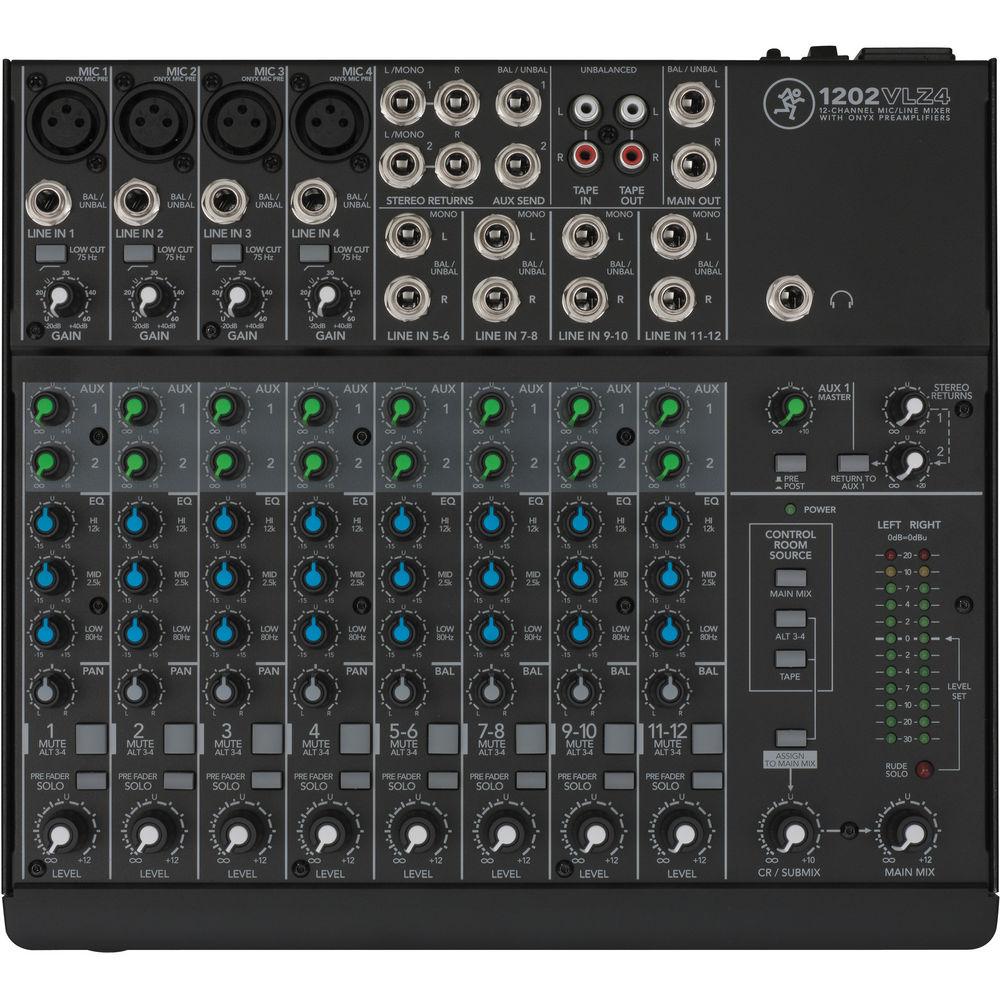

Product description The Mackie 1202VLZ4 12-Channel Compact Mixer features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like a dedicated control room section, it offers a step up in flexibility and performance that is suitable for your professional applications. - 12-Channel mixer featuring signature high-headroom, low-noise design
- 4 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 12 High-headroom line inputs
- 3-Band EQ (80 Hz, 2.5 kHz, 12 kHz)
- 18 dB/octave, 75 Hz low-cut filter on microphone input channels
- AUX send, level, pan, and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Rack-mountable design using a rack ear kit (sold separately)
- Applications:
Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more UPC: 663961039771 In the Box Mackie 1202VLZ4 12-Channel Compact Mixer Power Supply Limited 1-Year Warranty User Manual PDF 5mbaucrvctaavdvwesxy Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1202VLZ4 12-Channel Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 1202VLZ4 Specs | Noise | Main Mix Noise:
Main Mix Knob Down, Channel Gain Knobs Down: -100 dBu
Main Mix Knob @ Unity, Channel Gain Knobs Down: -86.5 dBu (90 dB signal to noise ratio, ref +4 dBu)
Main Mix Knob @ Unity, Channel Gain Knobs @ Unity: -84.5 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1 to 4, gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4 panned right) | | Total Harmonic Distortion (THD) | Microphone Pre @ Insert: <0.0007%
(1 kHz @ 30 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -85 dBu
Channel Gain Knob Down: -87 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) | | Frequency Response | Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ohms Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | | Maximum Level | Microphone In: +22 dBu
Tape In: +16 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.5 kOhms
Channel Insert Return: 2.5 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1.1 kOhms
All Other Outputs: 120 Ohms | | Equalizer | High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz | | Power Consumption | 25 W, 100 to 120 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Fuse Rating | 100 to 120 V: 500 mA slo blo, 5 x 20 mm
220 to 240 V: 250 mA slo blo, 5 x 20 mm | | Dimensions (H x W x D) | 10.7 x 11.9 x 3.0" (273.0 x 303.0 x 75.0 mm) | | Weight | 6.5 lb (3.0 kg) | | | | Package Weight | 10.6 lb | | Box Dimensions (LxWxH) | 14.0 x 13.4 x 6.1" |
