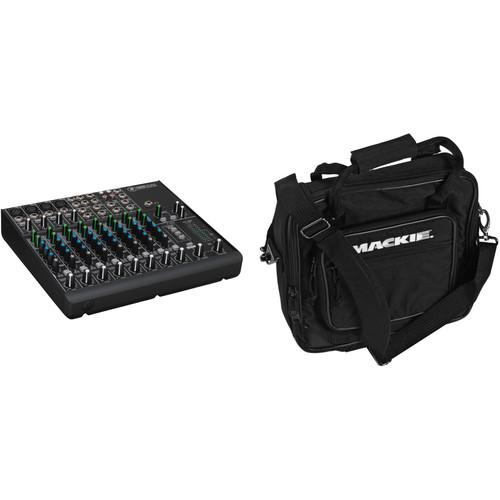

User Manual for Mackie 1202VLZ4 Mixer Kit with Bag Click to enlarge the picture
Contents of the user manual for the Mackie 1202VLZ4 Mixer Kit with Bag
- Product category: Analog Recording Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Analog Recording Mixers
|
User manual for the Mackie 1202VLZ4 Mixer Kit with Bag contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Mackie 1202VLZ4 12-channel compact mixer with a mixer bag to provide a mobile professional audio mixing solution with protection from on-the-road wear and tear. The 1202VLZ4 features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand. Built like a tank with a rugged solid-steel chassis, the mixer features high-contrast controls for discernible tactile control. The mixer provides a dedicated control-room section, which provides a step up in flexibility and performance that is suitable for your professional applications.
The mixer bag is made to carry and protect the 1202VLZ mixer and offers high-impact, high-density rigid internal foam, which provides drop protection. The tote features a large front zippered pocket. - Mackie 1202VLZ4 12-Channel Compact Mixer The Mackie 1202VLZ4 12-Channel Compact Mixer features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like a dedicated control room section, it offers a step up in flexibility and performance that is suitable for your professional applications. - 12-Channel mixer featuring signature high-headroom, low-noise design
- 4 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 12 High-headroom line inputs
- 3-Band EQ (80 Hz, 2.5 kHz, 12 kHz)
- 18 dB/octave, 75 Hz low-cut filter on microphone input channels
- AUX send, level, pan, and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Rack-mountable design using a rack ear kit (sold separately)
- Applications:
Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more UPC: 663961039771 - Mackie 1202 VLZ D Mixer Bag The Mackie 1202 VLZ D Mixer Bag is a mixer tote bag made to carry and protect the 1202 VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.
- Large front zippered pocket with a zipper slip pocket on front
- Compatible with;
-
- Mackie 1202 VLZ Pro mixer
UPC: 889406825710 In the Box - 1202VLZ4 12-Channel Compact Mixer wbraqeasxdcf
- Power Supply
- Limited 1-Year Warranty
- 1202 VLZ D Padded Mixer Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1202VLZ4 Mixer Kit with Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie 1202VLZ4 12-Channel Compact Mixer
| Noise | Main Mix Noise:
Main Mix Knob Down, Channel Gain Knobs Down: -100 dBu
Main Mix Knob @ Unity, Channel Gain Knobs Down: -86.5 dBu (90 dB signal to noise ratio, ref +4 dBu)
Main Mix Knob @ Unity, Channel Gain Knobs @ Unity: -84.5 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1 to 4, gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4 panned right) | | Total Harmonic Distortion (THD) | Microphone Pre @ Insert: <0.0007%
(1 kHz @ 30 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -85 dBu
Channel Gain Knob Down: -87 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) | | Frequency Response | Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ohms Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | | Maximum Level | Microphone In: +22 dBu
Tape In: +16 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.5 kOhms
Channel Insert Return: 2.5 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1.1 kOhms
All Other Outputs: 120 Ohms | | Equalizer | High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz | | Power Consumption | 25 W, 100 to 120 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Fuse Rating | 100 to 120 V: 500 mA slo blo, 5 x 20 mm
220 to 240 V: 250 mA slo blo, 5 x 20 mm | | Dimensions (H x W x D) | 10.7 x 11.9 x 3.0" (273.0 x 303.0 x 75.0 mm) | | Weight | 6.5 lb (3.0 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 13.4 x 6.1" | - Mackie 1202 VLZ D Mixer Bag
| Material | Interior: High-impact, high-density rigid internal foam | | Type of Closure | Zippers | | Interior Dimensions | 11.8 x 11.2 x 2.6" (29.97 x 28.45 x 6.6 cm) (WxDxH) Approximately | | Carrying/Transport Options | Carrying handle | | Weight | Not specified | | | | Box Dimensions (LxWxH) | 15.6 x 14.45 x 3.6" |
