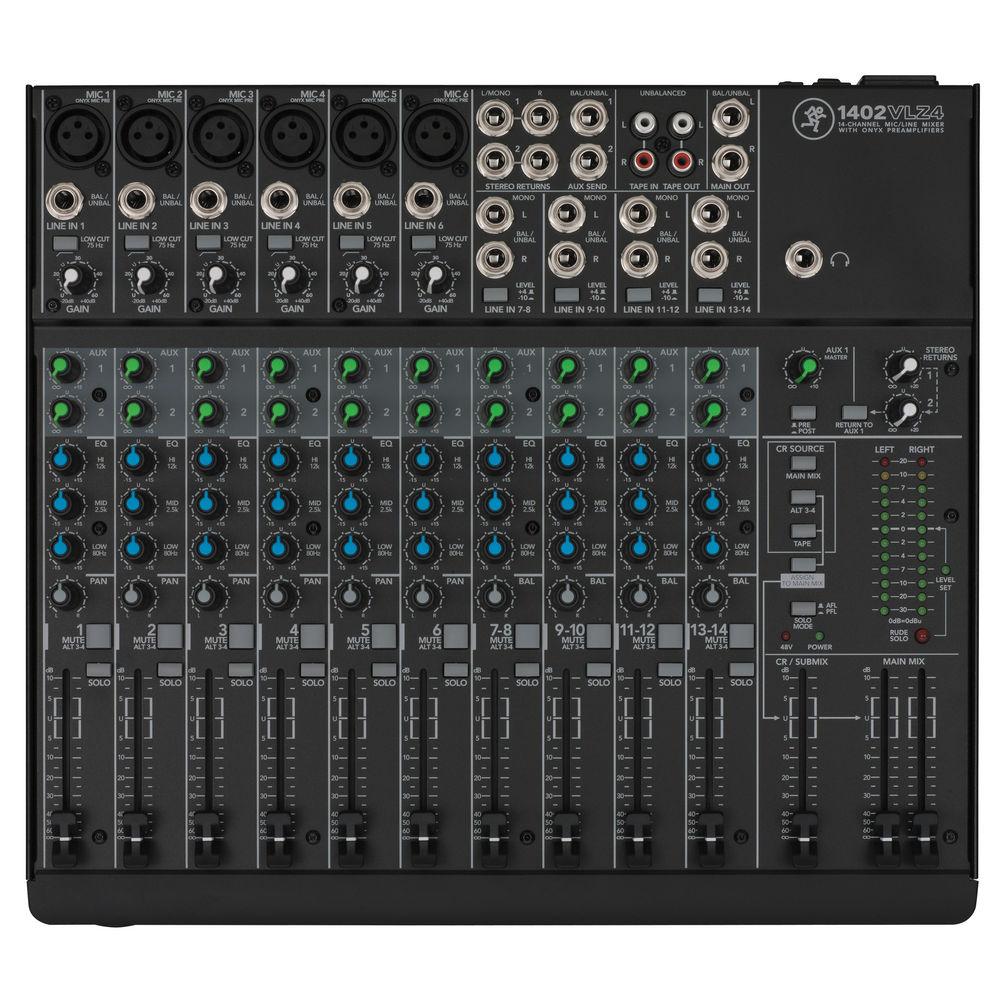

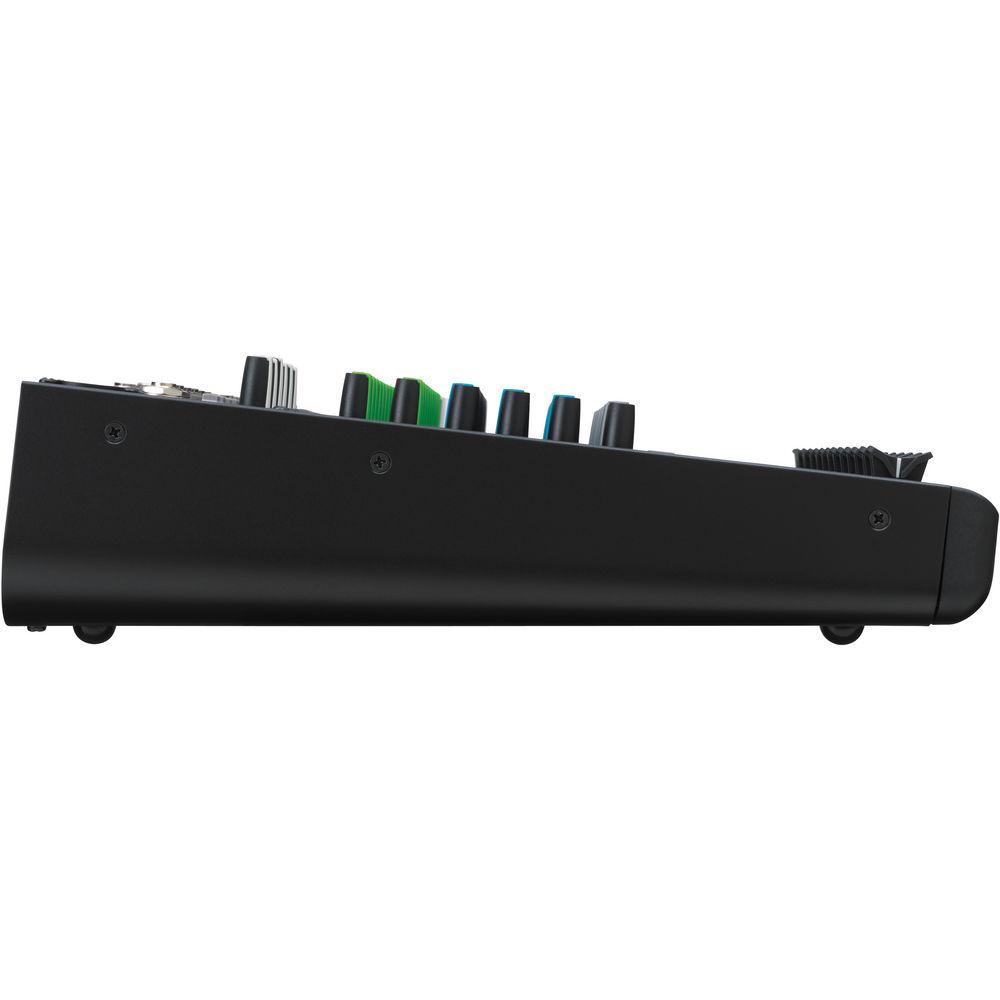

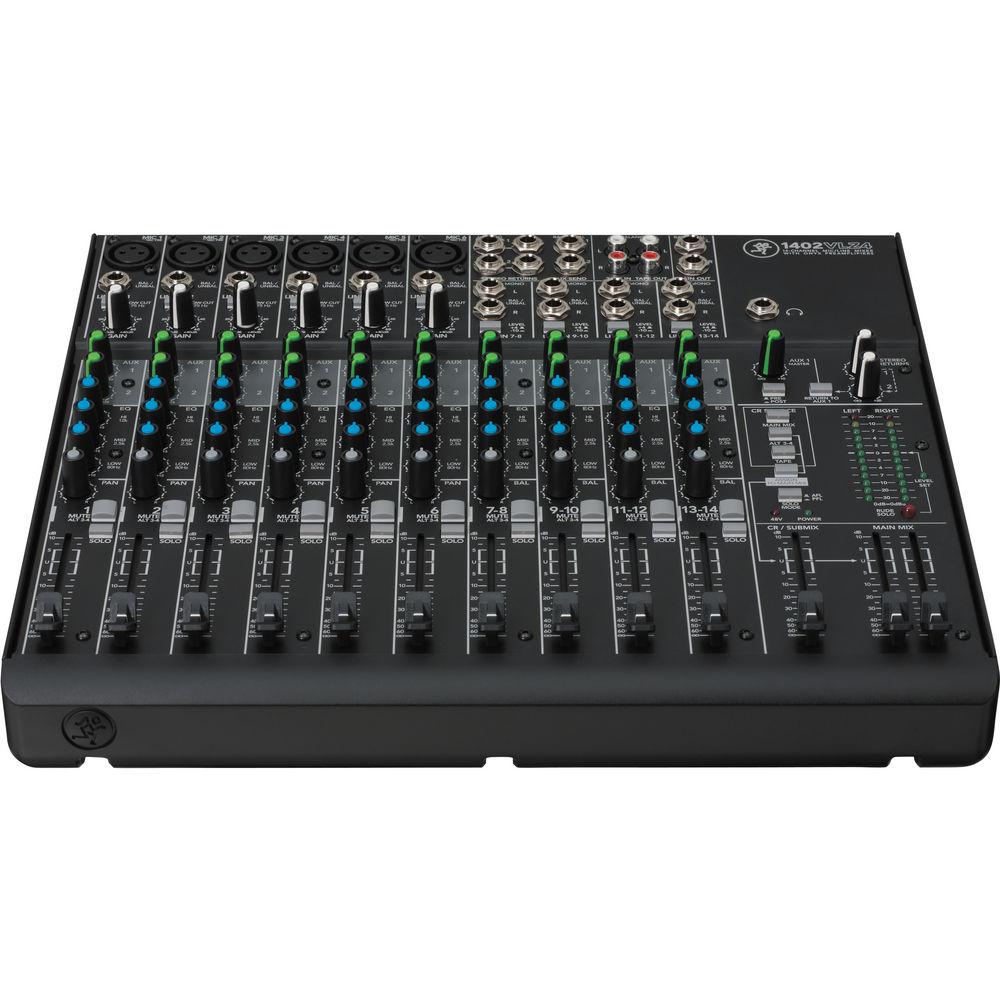

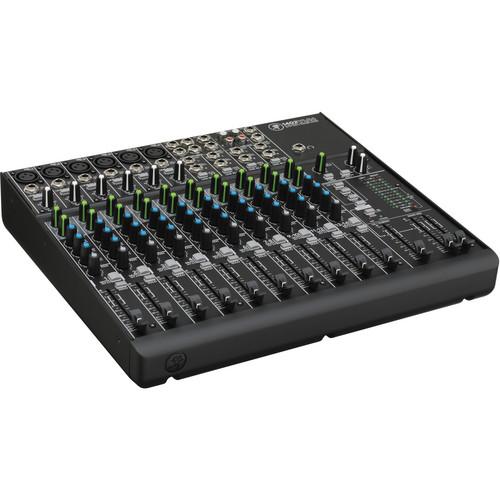

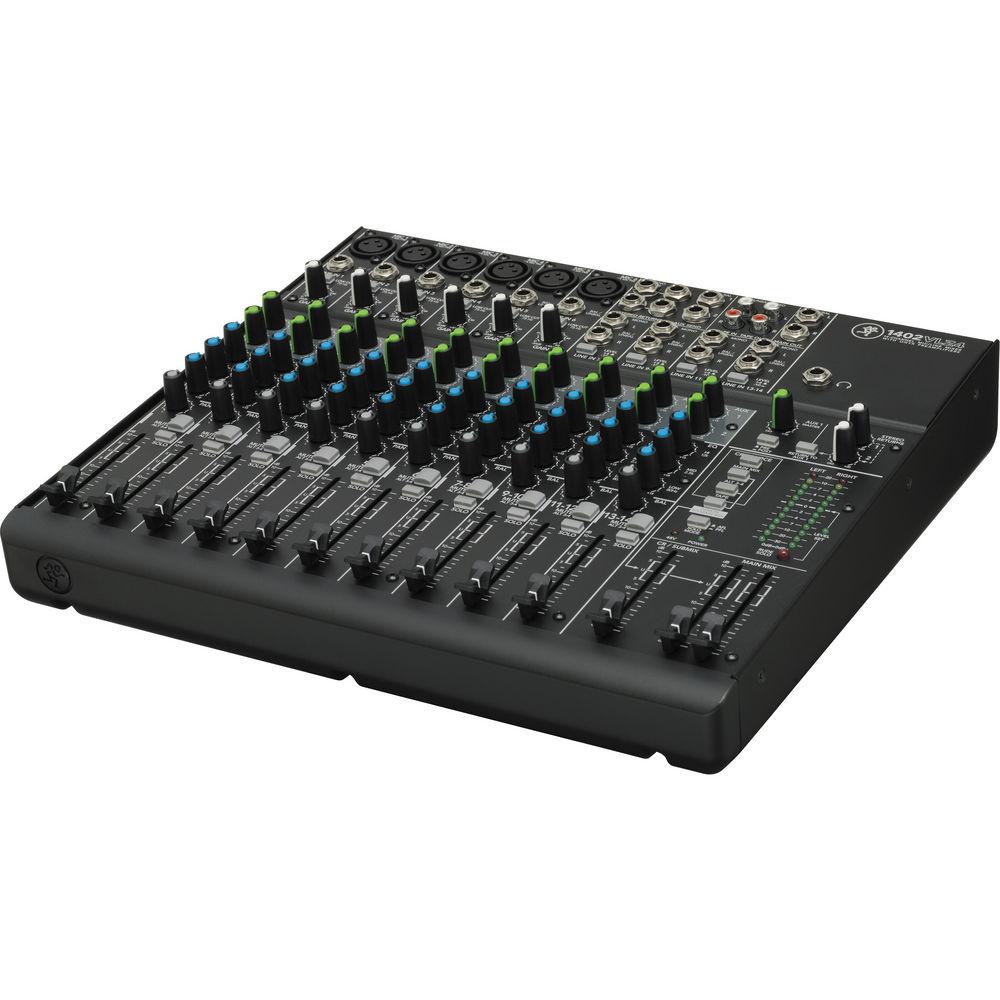

Product description The Mackie 1402VLZ4 14-Channel Compact Mixer features Onyx preamps in a professional compact mixer used for applications that demand flexibility. From every input to every output, the mixer provides the highest headroom and lowest noise for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like a dedicated control room section and smooth, accurate fader control, the 1402VLZ4 14-Channel Compact Mixer is a good choice for anybody who demands a professional performance. - 14-Channel mixer featuring signature high-headroom, low-noise design
- 6 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 14 High-headroom line inputs with +4/-10 operation control
- 3-Band EQ (80 Hz, & 2.5 and 12 kHz)
- 18 dB/octave 75 Hz low-cut filter on microphone input channels
- Two AUX sends, and level, pan, and PFL solo on each channel
- 60mm long-wearing log-taper faders
- Two stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Rack-mountable design using a rack ear kit (sold separately)
- Multi-voltage power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more
UPC: 663961039795 In the Box Mackie 1402VLZ4 14-Channel Compact Mixer Power Supply Limited 1-Year Warranty User Manual PDF 5.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1402VLZ4 14-Channel Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 1402-VLZ4 Specs | Noise | Main Mix Fader Down, Channel Faders Down: -101 dBu
Main Mix at Unity, Channel Faders Down: -91 dBu (95 dB signal to noise ratio, ref +4 dBu)
Main Mix Fader at Unity, Channel Faders at Unity: -86 dBu 20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1 to 6, gain at unity, channel EQs flat, all channels assigned to main mix, channels 1, 3, and 5 panned left, 2, 4, and 6 panned right | | Total Harmonic Distortion (THD) | Microphone Pre @ Insert: <0.0007% 1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth | | Crosstalk / Attenuation | Main Mix Fader Down: -100 dBu
Channel Alt / Mute Switch Engaged: -90 dBu
Channel Fader Down: -90 dBu 1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity | | Frequency Response | Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | | Maximum Level | Microphone In: +22 dBu
Tape In: +16 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω | | Equalizer | High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz | | Power Consumption | 25 W, 100 to 120 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Fuse Rating | 100 to 120 V: 500 mA slo blo, 5 x 20 mm
220 to 240 V: 250 mA slo blo, 5 x 20 mm | | Dimensions (H x W x D) | 12.5 x 14.0 x 3.2" (317.0 x 356.0 x 81.0 mm) | | Weight | 9.5 lb (4.5 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 16.1 x 15.1 x 6.7" |
