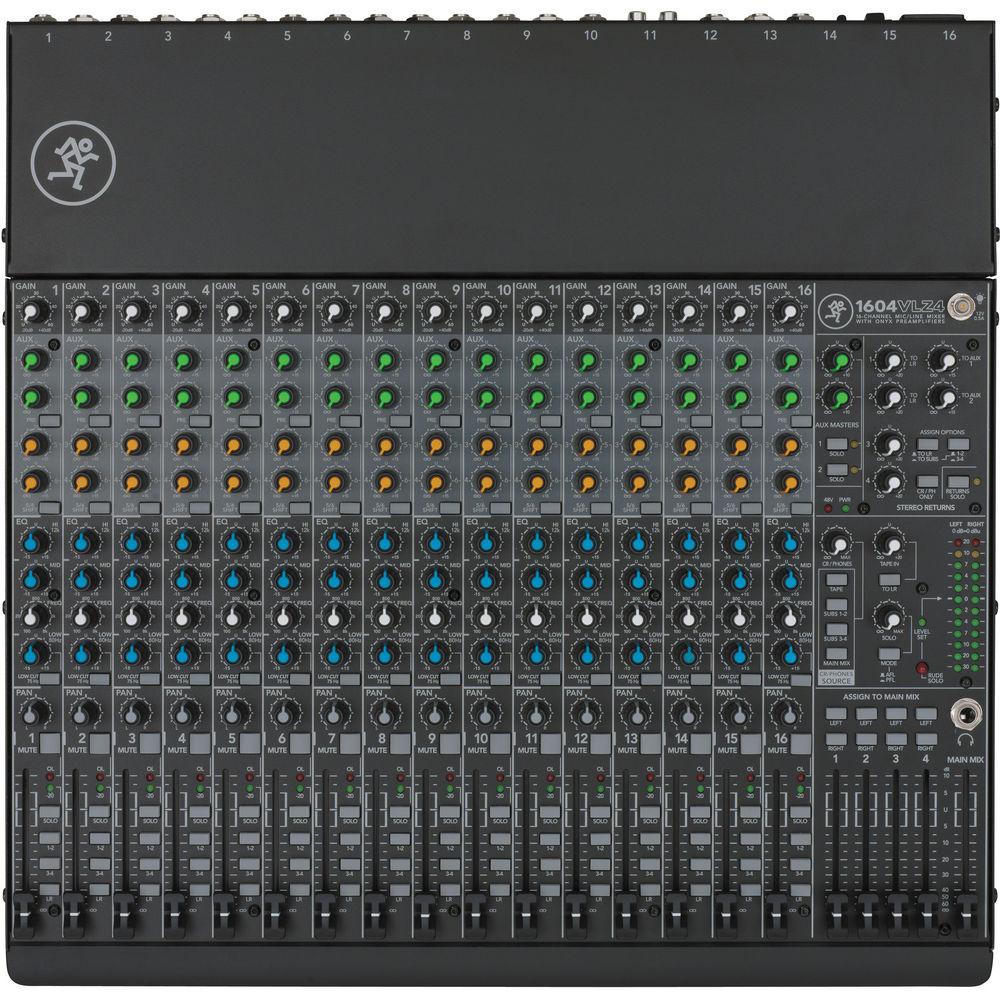

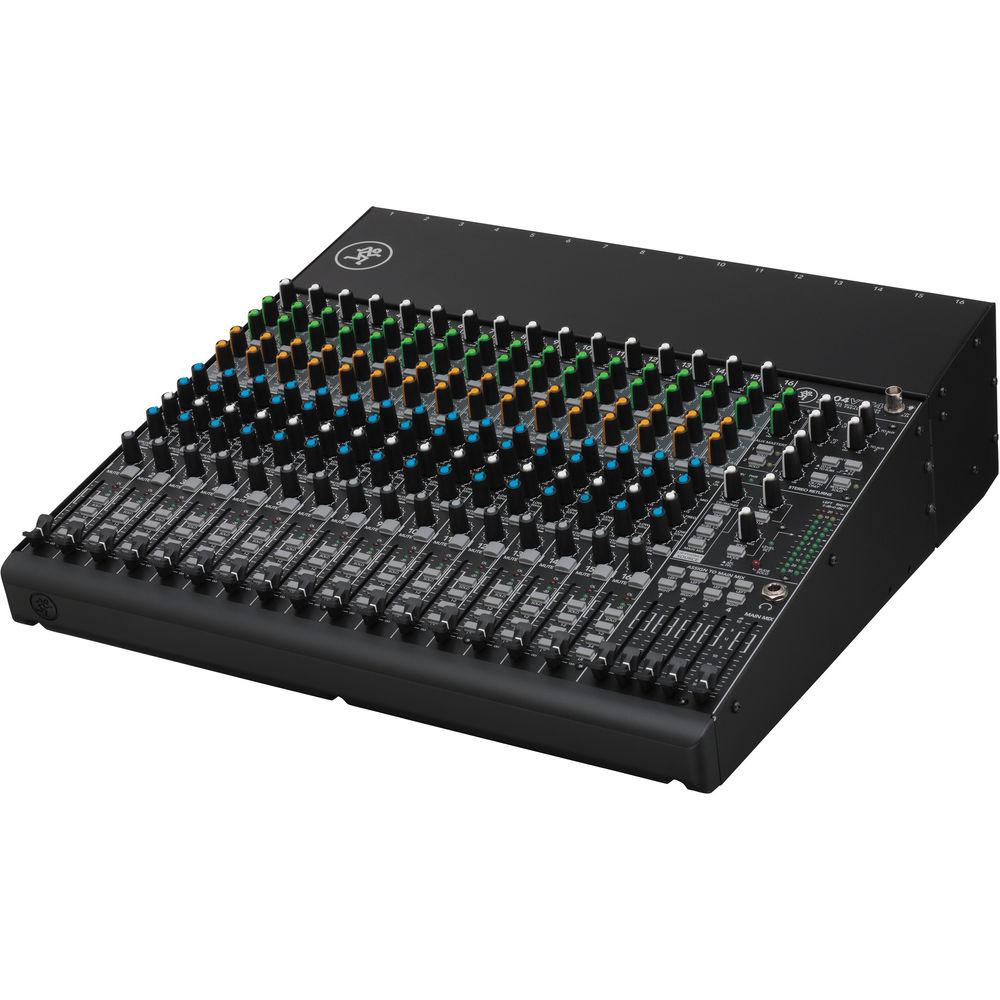

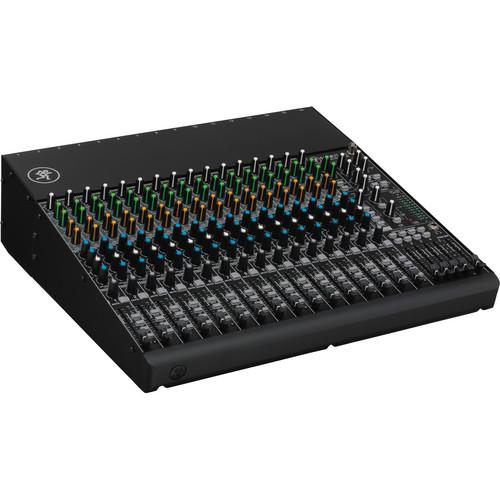

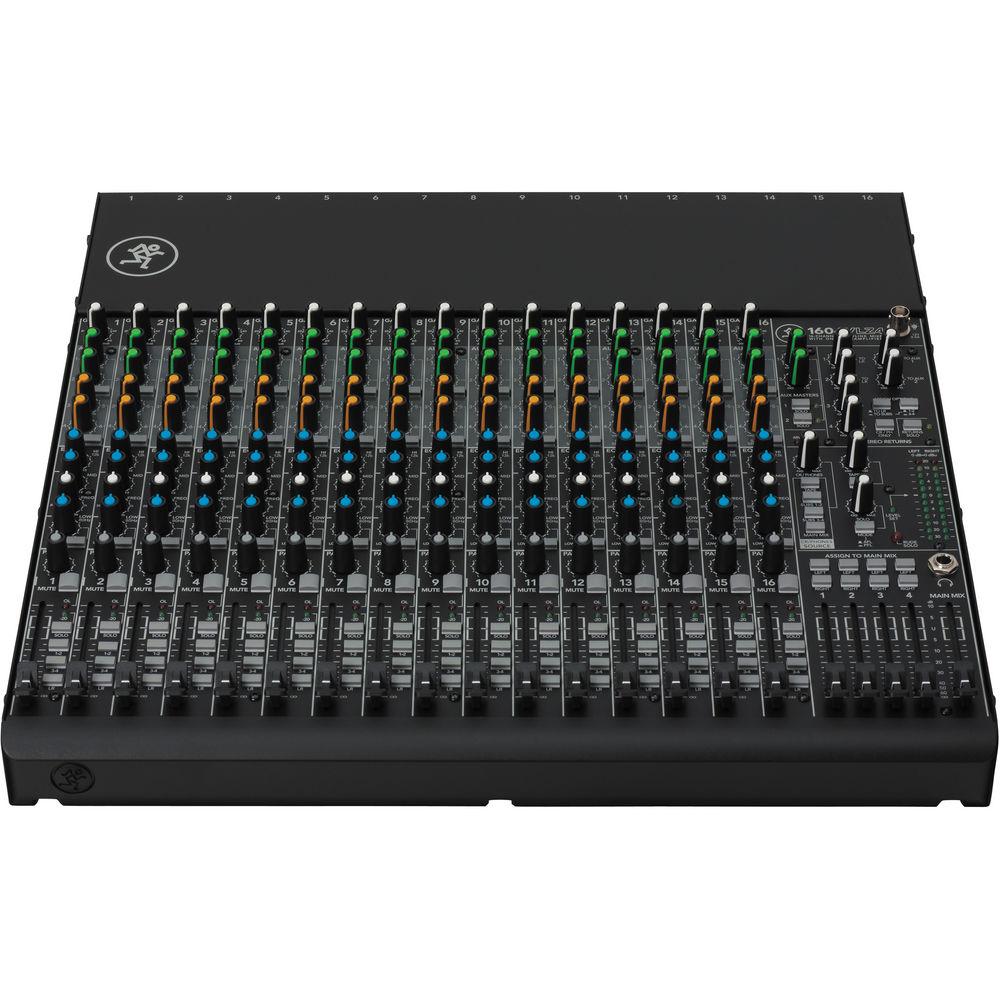

Product description The Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature an Onyx microphone preamplifier, line input and insert in a compact 4-bus design built for application flexibility and professional performance.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities. - 16-Channel mixer featuring high-headroom, low-noise design
- 16 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 16 high-headroom line inputs with +4 / -10 operation control
- 16 balanced inserts suitable for integrating outboard gear
- 3-band EQ with sweepable midrange
- 18 dB/octave 75 Hz low-cut filter on microphone input channels
- Four AUX sends, level, pan and solo and overload / mute LEDs on each channel

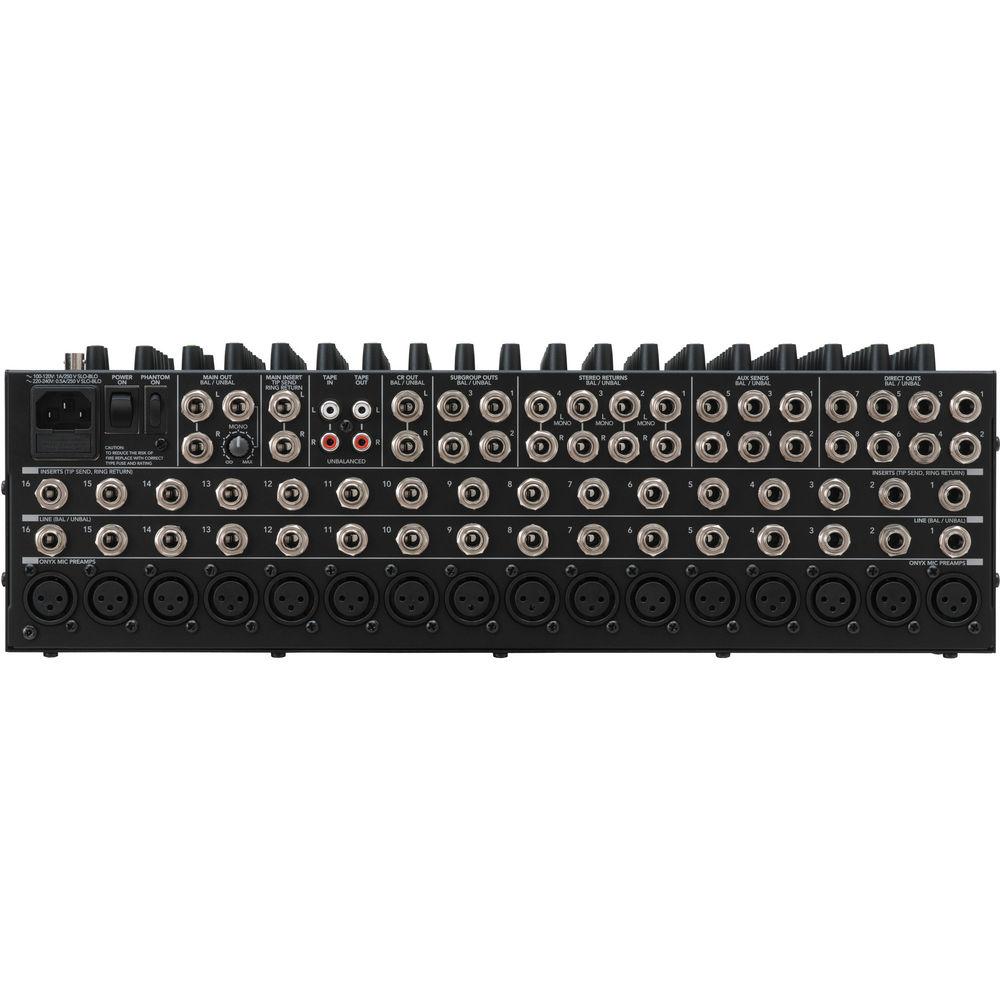

- Four stereo returns, eight direct outs and four group / bus outputs
- 60mm long-wearing log-taper faders
- Control room / phones multi-input source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime

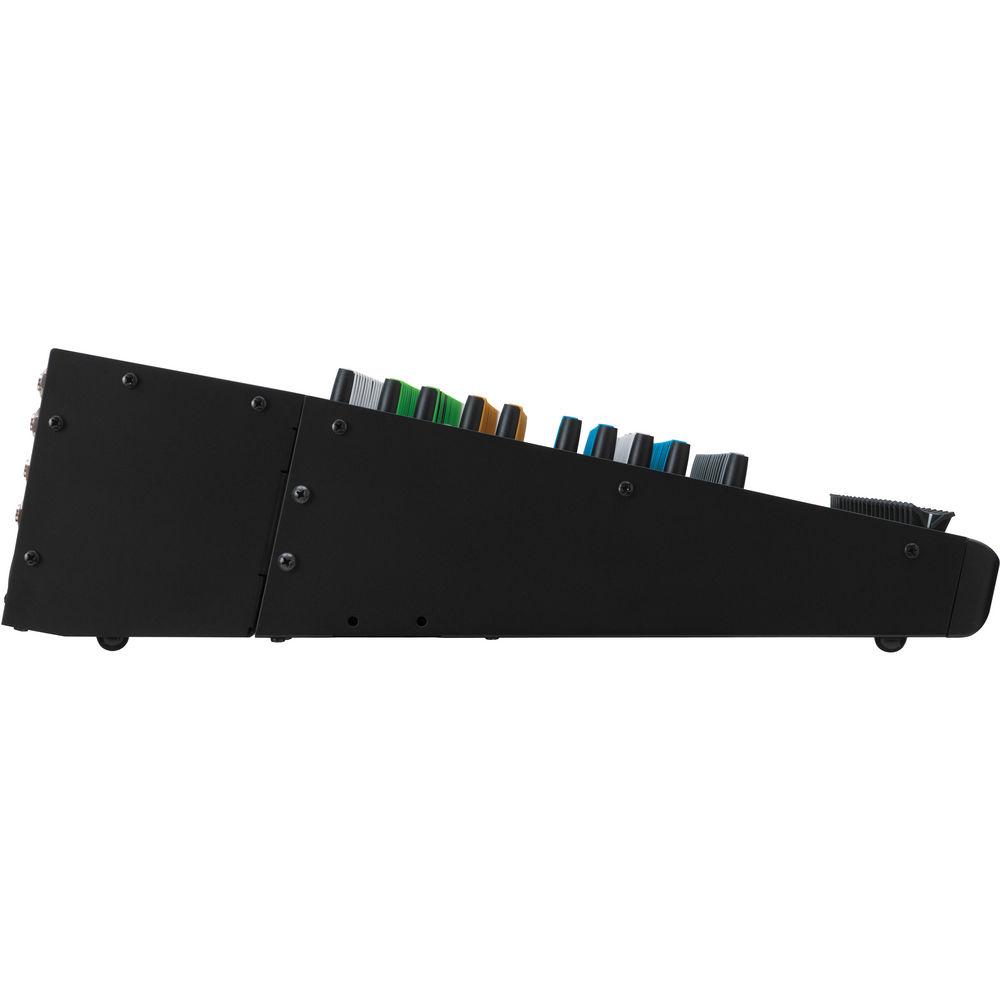

- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Rack-mountable design with 3 physical configurations via Rotopod accessory (sold separately)
- Multi-voltage power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multi-track studio and field recording, video post-production, multimedia applications, broadcast, and many more
UPC: 663961039818 In the Box Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer Power Supply Limited 1-Year Warranty User Manual PDF 9.2mbxrbctfzatdafqtwrcbbscrbzffazrzurwyw Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 1604-VLZ4 Specs | Noise | Main Mix Noise:
Main Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
Main Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) | | Total Harmonic Distortion (THD) | Microphone In to Insert Send: <0.0007%
Microphone In to Main Out: <0.005%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Channel Mute Switch Engaged: -84 dBu
Channel Gain Knob Down: -84 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity) | | Frequency Response | Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | | Maximum Level | Microphone In: +22 dBu
All Other Inputs: +22 dBu
Main Mix TRS Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω | | Equalizer | High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
Low Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz | | Power Consumption | 50 W, 100 to 120 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Fuse Rating | 100 to 120V: 1 A slo blo, 5 x 20 mm
220 to 240V: 0.5 A slo blo, 5 x 20 mm | | Dimensions (H x W x D) | 17.0 x 17.3 x 5.1" (433.0 x 440.0 x 129.0 mm) | | Weight | 20.0 lb (9.1 kg) | | | | Package Weight | 29.2 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 10.0" |
