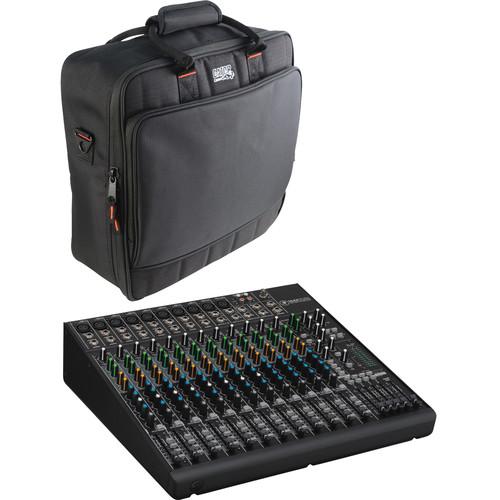

Product description The Mackie 1642VLZ4 16-Channel Mixer and Mixer Bag Kit from includes a 16-channel 1642VLZ4 mixer and a padded bag that can be used for transport and storage. The 1642VLZ4 features 10 of Mackie's Onyx preamps in addition to 16 line inputs. The mic and line inputs have a 3-band EQ, while the mixer has 4 Aux sends and returns for integrating external effects and processors. The mixer is designed for high RF rejection, allowing it to be used in broadcast applications.
The included bag has 5mm of padding for protection and features an exterior storage pocket for accessories such as cables and power cords. - Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance. - 16-Channel mixer featuring high-headroom, low-noise design
- 10 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 16 High-headroom line inputs with +4 / -10 operation control
- 3-Band EQ (80 Hz, 2.5 and 12 kHz)
- 18 dB/octave 75 Hz low-cut filter on microphone input channels
- Four AUX sends, level, pan and PFL solo on each channel
- Four stereo returns for connecting FX processor or other stereo source
- 60mm long-wearing log-taper faders
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Rack-mountable design using optional rack ear kit (sold separately)
- Multi-voltage power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multi-track studio and field recording, video post-production, multimedia applications, broadcast, and many more
UPC: 663961039726 - Gator Cases G-MIXERBAG-1818 Padded Nylon Mixer/Equipment Bag (18.0 x 18.0 x 5.5") The Gator Cases G-MIXERBAG-1818 is a padded nylon mixer/equipment bag designed to safely house a mixer or other equipment for musicians, audio engineers, DJs, and A/V techs in live stage applications, clubs, and mobile-recording rigs. The durable nylon exterior guards against moisture and dust while the 10mm dual-layer padding and tricot interior lining keep your gear snug and safe. External storage pockets with integrated cord management straps are ideal for accessories such as cables, adapters, and tools. The webbed carry handles and removable shoulder strap enable versatile and comfortable transport. Zipper closure ensures easy access when packing and unpacking your valuables.
- 10mm dual-layer padded protection
- Protective tricot-lined interior
- Removable shoulder strap and comfortable webbed handles
- External storage pockets with cord management
UPC: 716408536996 In the Box - 1642VLZ4 16-Channel 4-Bus Compact Mixer zqvftvyezzutzdfrrtzyfz
- Power Supply
- Limited 1-Year Warranty
- Gator Cases - G-MIXERBAG-1818 Padded Nylon Mixer/Equipment Bag (18.0 x 18.0 x 5.5")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 1642VLZ4 16-Channel Mixer and Mixer Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer
| Noise | Main Mix Noise:
Main Mix Fader @ Unity, Channel Faders Down: -86.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
Main Mix Fader @ Unity, Channel Faders @ Unity: -86 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) | | Total Harmonic Distortion (THD) | Microphone In to Insert Send: <0.0007%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Channel Mute Switch Engaged & Channel Gain Knob Down: -82 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity) | | Frequency Response | Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | | Maximum Level | Microphone In: +22 dBu
All Other Inputs: +22 dBu
Main Mix TRS Out & XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω | | Equalizer | 3-Band EQ (Channel 1 to 8):
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
Low Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
4-Band EQ (Channel 9 to 16):
High Shelving: ±15 dB @ 12 kHz
Hi Mid Peaking: ±15 dB @ 2.5 kHz
Low Mid Peaking: ±15 dB @ 400 Hz
Low Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz | | Power Consumption | 50 W, 100 to 120 VAC/ 200 to 240 VAC, 50 to 60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Fuse Rating | 100 to 120V: 1 A slo blo, 5 x 20 mm
220 to 240V: 0.5 A slo blo, 5 x 20 mm | | Dimensions (H x W x D) | 16.7 x 16.6 x 5.2" (425.0 x 421.0 x 131.0 mm) | | Weight | 18.2 lb (8.3 kg) | | | | Box Dimensions (LxWxH) | 20.5 x 20.5 x 9.5" | - Gator Cases G-MIXERBAG-1818 Padded Nylon Mixer/Equipment Bag (18.0 x 18.0 x 5.5")
| Material | Nylon exterior
Tricot-lined interior | | Type of Closure | Zipper | | Interior Dimensions | 18.0 x 18.0 x 5.5" / 45.7 x 45.7 x 14.0 cm | | Exterior Dimensions | 19.0 x 19.0 x 5.5" / 48.3 x 48.3 x 14.0 cm | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 20.8 x 19.2 x 6.0" |
