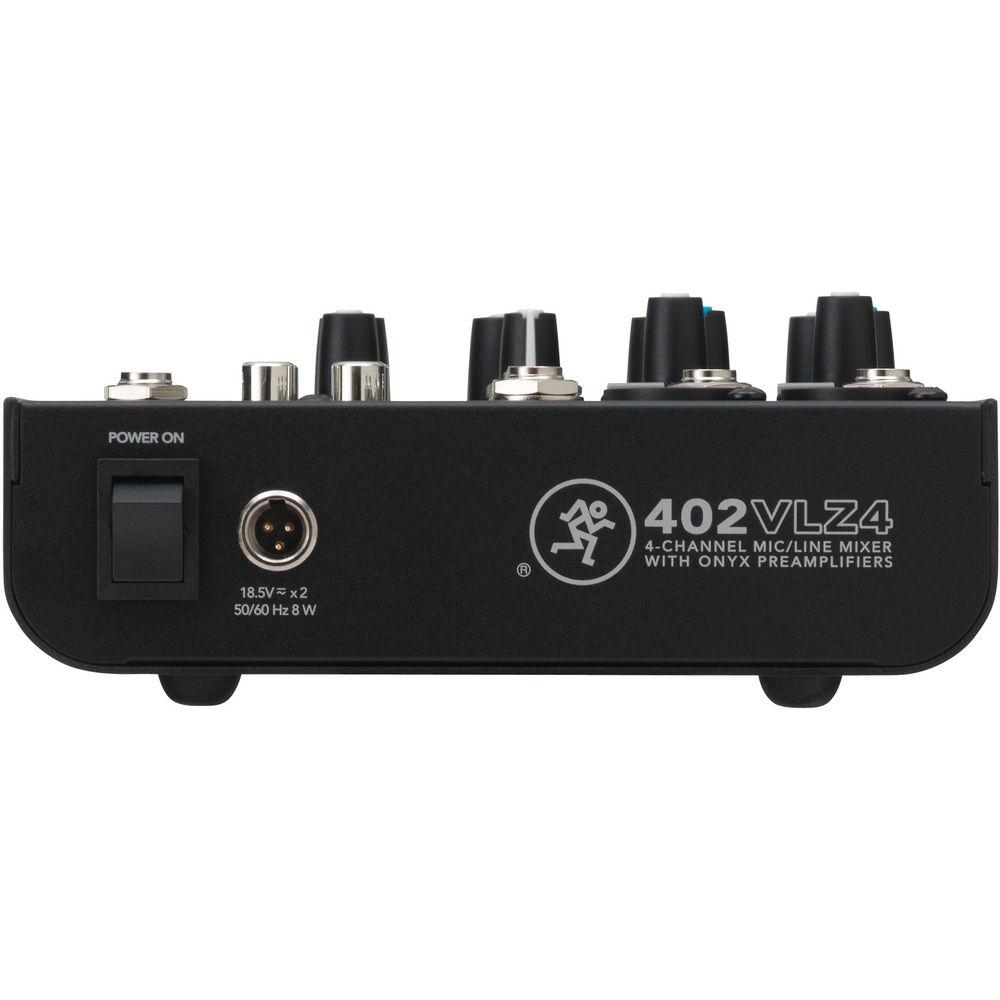

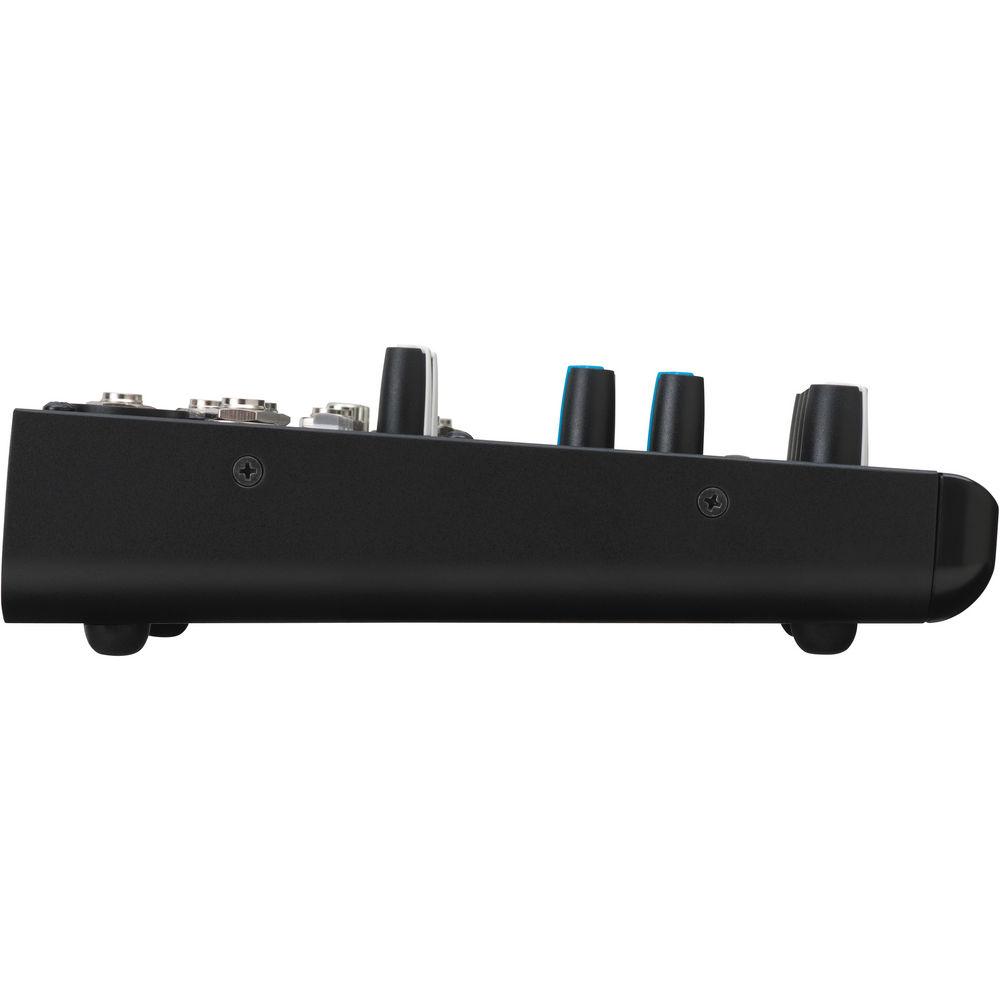

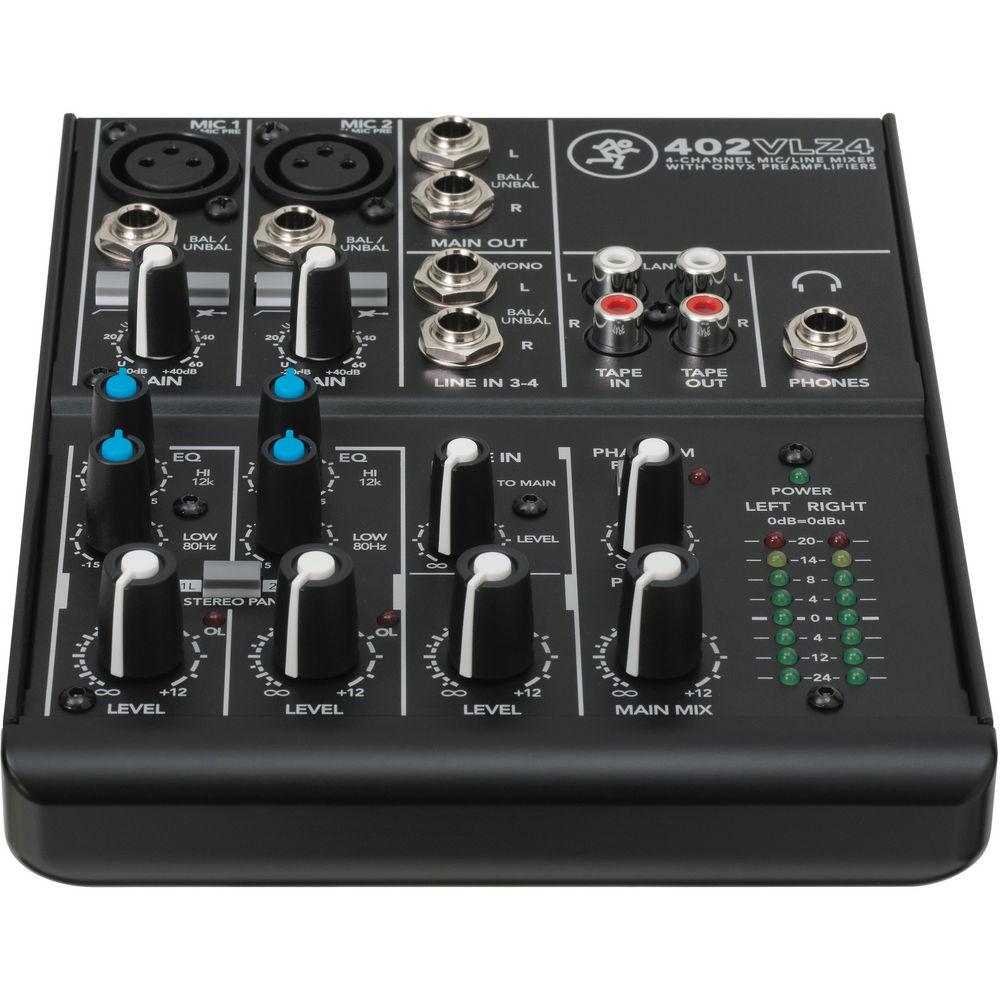

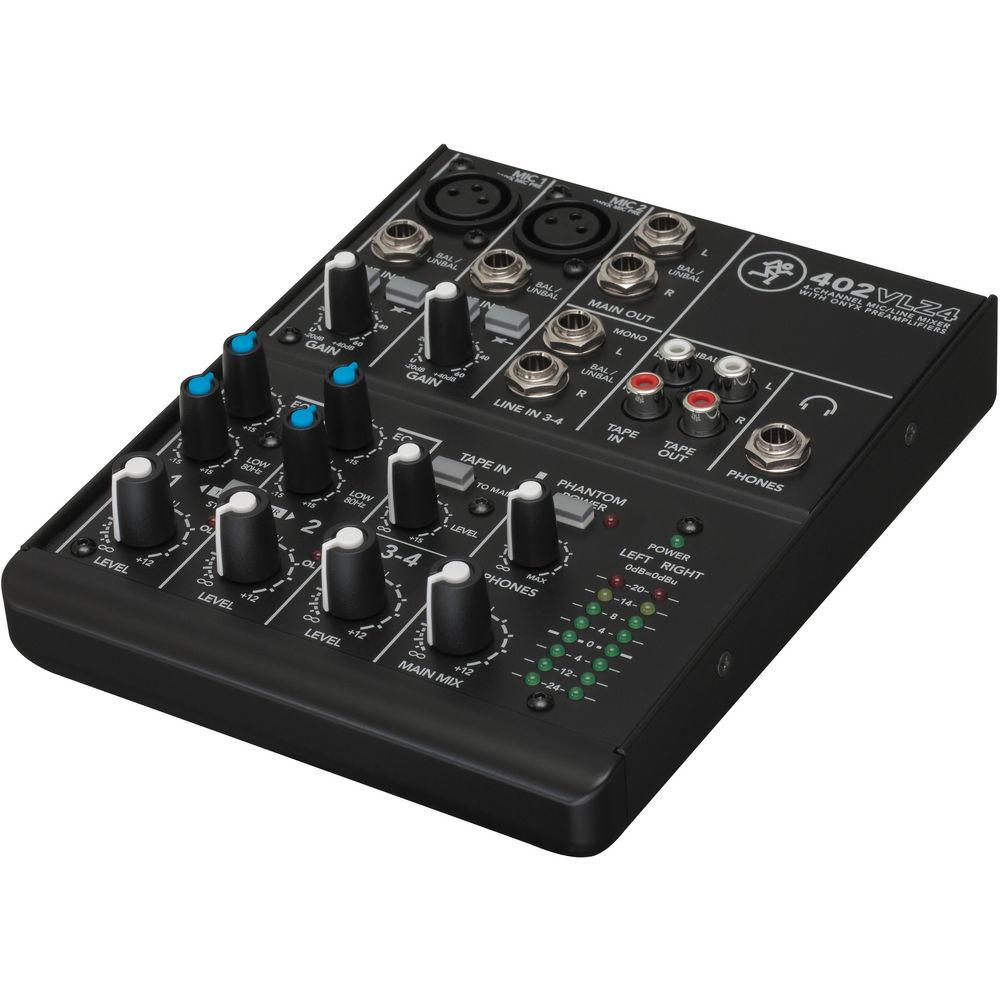

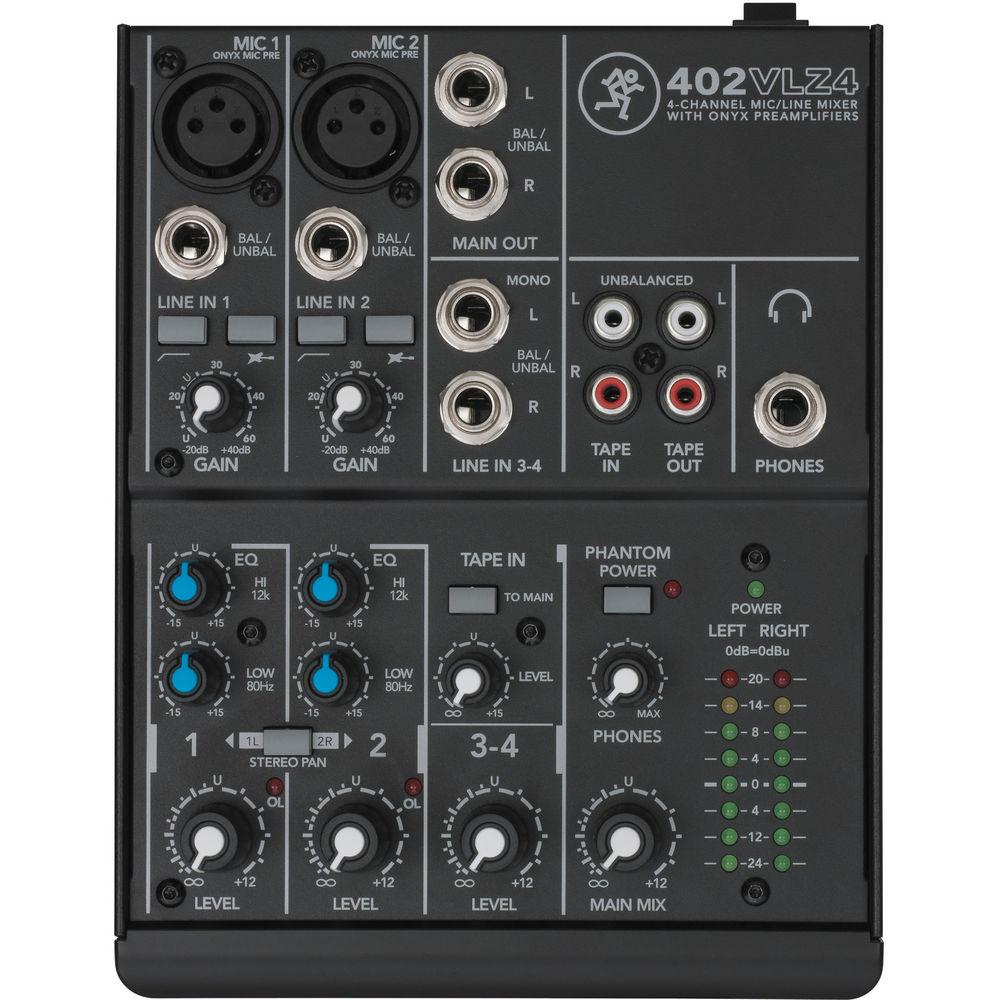

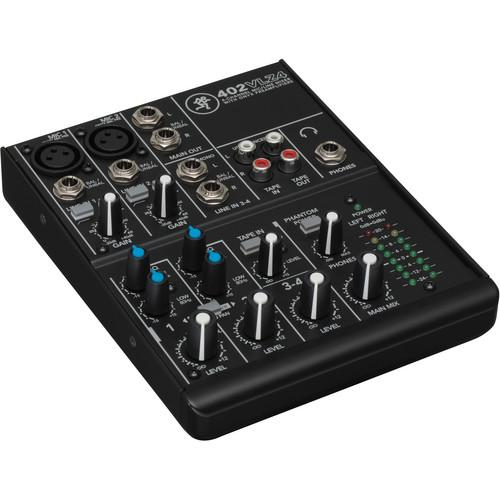

User Manual for Mackie 402VLZ4 4-Channel Ultra-Compact Mixer Click to enlarge the picture
Contents of the user manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer
- Product category: Analog Recording Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Analog Recording Mixers
 |
User manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The Mackie 402VLZ4 4-Channel Ultra-Compact Mixer features Onyx microphone preamps in an ultra-compact design and is suitable for professional low-input applications. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built like a tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like instrument level inputs, phantom power, and level metering, the 402VLZ4 4-Channel Ultra-Compact Mixer is a good choice for anybody who is big on performance, but light on inputs. The bottom panel of the mixer features has three non-threaded holes that allow it to be fitted with an optional microphone stand adapter (sold separately). This lets you support the mixer on a standard microphone stand and adjust its height and level to whatever suits your preferences. - 4-Channel mixer featuring high-headroom, low-noise design
- 2 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 4 high-headroom line inputs
- Selectable instrument inputs on first 2 channels; no DI box needed
- 2-band EQ (80 Hz and 12 kHz)
- 18 dB/octave 100 Hz low-cut filter on microphone input channels
- High-resolution 8-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Universal power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more
UPC: 663961039863 In the Box Mackie 402VLZ4 4-Channel Ultra-Compact Mixer Power Supply Limited 1-Year Warranty User Manual PDF 958kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 402-VLZ4 Specs | Noise | Main Mix Noise:
Main Mix Knob Down, Channel Level Knobs Down: -103 dBu
Main Mix Knob at Unity, Channel Level Knobs Down: -98 dBu
Main Mix Knob at Unity, Channel Level Knobs at Unity: -92 dBu
Signal-to-Noise Ratio, ref. +4 dBu 102 dB
(20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1-2 gain at unity, channel EQs flat, stereo-pan button in) | | Total Harmonic Distortion (THD) | 20 Hz to 80 kHz Bandwidth: <0.005%
20 Hz to 20 kHz Bandwidth: <0.003%
(1 kHz @ 35 dB gain) | | Crosstalk / Attenuation | Main Mix Knob Down: -70 dBu
Channel Level Knob Down: -94 dBu
(1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity) | | Frequency Response | Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ohms; Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone Input to Main Output, Maximum Gain | | Common Mode Rejection Ratio | Better than -70 dB at 1 kHz | | Maximum Level | Microphone In: +21 dBu
Tape In: +24 dBu
All Other Inputs: +22 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.55 kOhms
Instrument Input: 1 MOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhm
Phones Out: 60 Ohms
All Other Outputs: 120 Ohms | | Equalizer | High Shelving: ±15 dB at 12 kHz
Low Shelving: ±15 dB at 80 Hz | | Power Consumption | 8 W, 100 to 120 VAC, 50 to 60 Hz | | Power Supply | External AC Connector: 2-Pin IEC 250 VAC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 7.3 x 5.8 x 1.6" (186.0 x 147.0 x 41.0 mm) | | Weight | 3.0 lb (1.4 kg) with power supply
2.5 lb (1.1 kg) without power supply | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 12.6 x 9.0 x 4.3" |
