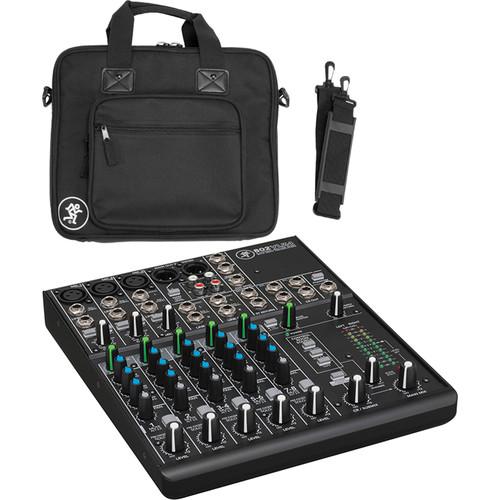

User Manual for Mackie 802VLZ4 Mixer Kit with Bag Click to enlarge the picture
Contents of the user manual for the Mackie 802VLZ4 Mixer Kit with Bag
- Product category: Analog Recording Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Analog Recording Mixers
|
User manual for the Mackie 802VLZ4 Mixer Kit with Bag contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Mackie 802VLZ4 8-channel compact mixer with a mixer bag to provide a mobile professional audio mixing solution with protection from on-the-road wear and tear. The 802VLZ4 features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand. Built like a tank with a rugged solid-steel chassis, the mixer features high-contrast controls for discernible tactile control. The mixer provides a dedicated control-room section, which provides a step up in flexibility and performance that is suitable for your professional applications.
The mixer bag is made to carry and protect the 802VLZ mixer and offers high-impact, high-density rigid internal foam, which provides drop protection. The tote features a large front zippered pocket. - Mackie 802VLZ4 8-Channel Ultra-Compact Mixer The Mackie 802VLZ4 8-Channel Ultra-Compact Mixer features Onyx microphone preamps in a desk-friendly, ultra-compact design, suitable for professional applications with a lower input need. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like instrument level inputs, phantom power, and level metering, the 802VLZ4 offers a true step-up performance and durability that is suitable for your professional applications. - 8-Channel mixer featuring high-headroom, low-noise design
- 3 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- Eight high-headroom line inputs
- Selectable instrument inputs on first 2 channels; no DI box needed
- 3-Band EQ (80 Hz, 2.5 and 12 kHz)
- 18 dB/octave 100 Hz low-cut filter on microphone input channels
- AUX send, level, pan, and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Universal power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more
UPC: 663961039832 - Mackie Bag for 802-VLZ3 Mixer The Mackie Bag for 802-VLZ3 Mixer is designed to protect and carry a Mackie 802-VLZ3 mixer. The tote bag has a main compartment, an outer accessories pocket, and zippered closures. It can be carried using the two interlocking carry handles or the included removable, padded, adjustable shoulder strap.
- Bag Basics
-
- Main compartment with outer accessories pocket
- Zippered closures
- Carrying Options
-
- Two interlocking carry handles
- Removable, padded, adjustable shoulder strap
UPC: 663961034226 In the Box - 802VLZ4 8-Channel Ultra-Compact Mixer fezvxyvradtzucwdcqve
- Power Supply
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie 802VLZ4 Mixer Kit with Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
| Noise | Main Mix Noise:
Main Mix Knob Down, Channel Level Knobs Down:
XLR: -95 dBu
TRS: -101 dBu
Main Mix Knob at Unity, Channel Level Knobs Down:
XLR: -90 dBu
TRS: -96 dBu
Main Mix Knob at Unity, Channel Level Knobs at Unity:
XLR: -84 dBu
TRS: -90 dBu
(20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered) | | Total Harmonic Distortion (THD) | Microphone Pre at Insert: <0.001%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -100 dBu
Channel Level Knob Down: -100 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) | | Frequency Response | Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ohms; Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB at 1 kHz | | Maximum Level | Microphone In: +21 dBu
Tape In: +22 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.55 kOhms
Channel Insert Return: 5 kOhms
All Other Inputs: 17 kOhms or greater
Tape Out: 1 kOhm
Phones Out: 60 Ohms
All Other Outputs: 120 Ohms | | Equalizer | High Shelving: ±15 dB at 12 kHz
Mid Peaking ±15 dB at 2.5 kHz
Low Shelving: ±15 dB at 80 Hz | | Power Consumption | 13 W, 100 to 120 VAC, 50 to 60 Hz | | Power Supply | External (AC Connector): 2-Pin IEC 250 VAC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (H x W x D) | 10.7 x 8.9 x 1.8" (273.0 x 227.0 x 47.0 mm) | | Weight | 5.5 lb (2.5 kg) with power supply
4.5 lb (2.0 kg) without power supply | | | | Box Dimensions (LxWxH) | 15.8 x 12.2 x 4.3" | - Mackie Bag for 802-VLZ3 Mixer
| Material | Not specified by manufacturer | | Type of Closure | Zippered with pull tabs | | Exterior Dimensions | Not specified by manufacturer | | Interior Dimensions | Not specified by manufacturer | | Carrying/Transport Options | Interlocking top carry handles; removable, padded, adjustable shoulder strap | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 14.9 x 13.1 x 2.7" |
