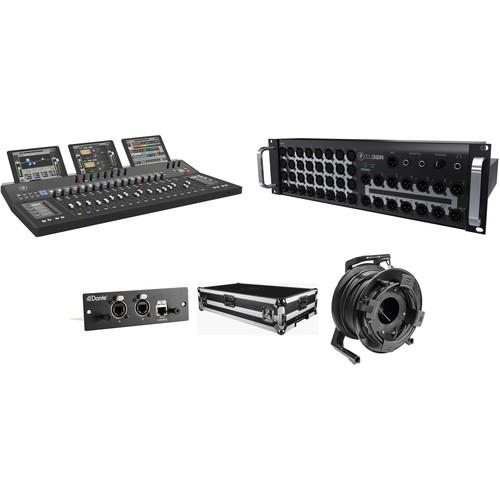

Product description This B&H Kit combines the Mackie DL32R Digital Mixer, DC16 Control Surface and Hard Case, DL Dante Expansion Card, and an Etherflex etherCON Cable Reel to create the primary components of the AXIS Digital Mixing System, well suited for touring applications for live bands, event halls, schools, or anyone needing a professional mobile digital mixing setup. The DL32R is a 32-channel wireless digital audio mixer and USB 2.0 audio interface that allows the entire process of live sound mixing to be controlled with an iPad, and enables personal monitor mixing with any iOS device, such as an iPhone or iPod touch. It delivers a live sound mixing experience that takes advantage of the iOS touchscreen and wireless control capabilities, while providing a wealth of professional features to accommodate a wide variety of sound reinforcement and recording applications.
The DC16 is a Dante-connected control surface; when combined with the DL32R digital mixer and Master Fader iOS control app, it completes the make-up of the AXIS Digital Mixing System. The DC16 features 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per-channel encoders. The DL Dante Expansion Card is designed to connect the DL32R with any Dante audio network. Once installed, this expansion card provides 32x32 channels of I/O. The hard case is designed to protect the DC16 from the rigors of on-the-road wear and tear, while the easily transportable etherCON cable reel provides 262.5' / 80.0m of digital connection between the mixer and control surface. - Mackie DC16 Axis Digital Mixing Control Surface The DC16 from Mackie is a Dante-connected control surface that, when combined with the DL32R digital mixer and Master Fader iOS control app, completes the AXIS Digital Mixing System. The DC16 features 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per-channel encoders. The ergonomic layout provides a generous working space with a dedicated selected channel section with controls for quick access to the most important parameters. Large, full-color back-lit channel ID screens provide flexible channel labeling which includes name, color, and icon. There are 6-segment LED channel meters and 3-segment GR meters per channel, while the dedicated show display offers snapshot control.
The DC16 uses SmartBridge, a surface to wireless mixing function that automatically senses the presence of up to three iPad devices to deliver tight integration and customized functionality. The central iPad follows the dedicated hardware controls for the selected channel and can be connected via a wired connection, which affords direct recording and playback.
The control surface provides additional I/O for the AXIS system and includes 4x4 Dante via dual locking etherCON, an XLR talkback mic input, 1/8" stereo input, and 1/4" control room and headphone outputs. The DC16 ships with a power cord and dust cover. - DCI6 Control Surface
-
- Dedicated Dante-connected control surface for the AXIS system
- 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per-channel encoders
- Dedicated selected channel section with controls for fast access to important parameters
- Mix selector and view groups deliver innovative navigation without preset banks
- Ergonomic layout with generous working space for easy access to all controls
- Extensive Visual Feedback
- Large, full-color backlit channel ID screens with class-leading readability
- Flexible channel labeling including name, color and icon
- 6-segment LED channel meters and 3-segement GR meters per channel
- Dedicated show display with snapshot control
- Surface to Wireless Mixing via SmartBridge
- Automatically senses presence of up to three iPad devices and changes Master Fader operation to deliver tight integration and customized functionality
- Central iPad follows dedicated hardware controls for selected channel
- Unique history and fixed display iPad modes provide flexible workflow options
- Control up to four channels simultaneously from control surface and iPad devices
- Grab any iPad and go for instant wireless mixing from anywhere in the venue
- Wired recording and playback to central iPad
- Built-in charging for all three iPad devices
- Dedicated Wi-Fi router connection point
- Tough Professional Hardware
- All-steel chassis with aluminum front and back extrusions
- Low profile, compact design fits seamlessly into any workspace
- Additional I/O for Your Axis System
- 4 input, 4 output Dante via dual locking etherCON
- XLR talkback input
- 1/8" stereo input
- Control room/phones outputs
UPC: 663961045222 - Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer The Mackie DL32R is a 32-channel wireless digital audio mixer and USB 2.0 audio interface that allows the entire process of live sound mixing to be controlled with an iPad, and allows for personal monitor mixing with any iOS device, such as an iPhone or iPod touch. It delivers a live sound mixing experience that takes advantage of the iOS touch screen and wireless control capabilities, while providing a wealth of professional features to accommodate a wide variety of sound reinforcement and recording applications.
The DL32R features 32 microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps, capable of handling full bands that include guitars, full drum sets, vocals, and much more. It also has 14 fully assignable XLR outputs for connection to amplifiers, powered speakers, wireless transmitters for in-ear monitoring. The DL32R also allows up to 10 performing musicians to mix their own monitors using their iPhone, iPad or iPod touch.
In addition to sound reinforcement, the unit also provides 24-bit/48 kHz audio capture and playback for recording in live situations or in the studio. As an audio interface, the DL32R can be paired with your Mac or PC computer, or you can record directly to a USB 2.0 hard drive without a computer. Featuring three stereo FX processors with reverbs and delays, and dedicated sends & returns, the DL32R can function as a versatile, all-in-one mixing and recording solution. - Features at a Glance:
-
- Master Fader iPad app for complete wireless control and frequent updates via App Store
- Supports up to 10 separate iOS devices at once
- 32 Microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps
- 14 Fully assignable XLR outputs
- 36 Input channels with 4-band PEQ + HPF, gate and compression
- 28 Output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay
- 3 Stereo FX processors with tons of great-sounding reverbs and delays plus dedicated sends & returns
- 6 VCAs
- 6 Mute groups
- Stereo AES digital output
- Card slot for Dante expansion
- Total recall for all settings
UPC: 663961044607 - Mackie DL Dante Expansion Card for DL32R Mixer Designed to work with the Mackie DL32R 32-channel live sound mixer, the DL Dante Expansion Card is designed to enable the aforementioned mixer to connect with any Dante audio network. Once installed, this expansion card provides 32x32 channels of I/O, allowing you to route disparate types of audio signal--from loudspeaker to microphone--to and from the DL32R. The card sports two Dante ports, either for daisy-chaining or system redundancy, while a dedicated Wi-Fi control port renders the need for an Ethernet switch unnecessary in many situations. Included with this expansion car is the Dante Virtual Sound Card, enabling multi-tracking recording and playback between Dante networks and computers, either in Mac or PC platforms.
- 32x32 channels of 48 kHz digital audio, connecting the Mackie DL32R to a Dante network using Cat5e connections
- Route any signal to the network from the DL32R using Master Fader control software
- Dual Ethercon connection points for Dante daisy-chaining or redundant Dante mode
- Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
- Automatic device discovery and custom channel naming with easy one-click routing using Dante Controller software for Mac and PC
- Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
- Use simultaneously with DL32R USB I/O for total routing and recording control
- Simple two-screw user installation
UPC: 663961045840 In the Box - DC16 Axis Digital Mixing Control Surface ddrczbstxuvaatbausrrescedsawabwbyqddt
- Power Cord
- Dust Cover
- Limited 1-Year Warranty
- DL32R 32-Channel Wireless Digital Live Sound Mixer ddrczbstxuvaatbausrrescedsawabwbyqddt
- DL Dante Expansion Card for DL32R Mixer
- Tour-Ready Wood Case for DC16 Control Surface
- Rugged CAT5e Etherflex Cable Reel (262.5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie AXIS Digital Mixing System Touring Kit with DL32R, DC16, DL Dante Expansion, Hard Case, and etherCON Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie DC16 Axis Digital Mixing Control Surface
| Digital | Sample Rate: 48 kHz
A/D/A Bit Depth: 24-bit
0 dBFS Reference: +22 dBu | | Frequency Response | All Inputs and All Outputs: ±0, -1 dB, 20 Hz to 20 kHz | | Stereo Input | Connector: 1/8" / 3.5 mm unbalanced
Input Impedance: 10 kOhms
Max Input Level: +16 dBu | | Talkback Mic | Connector: XLR balanced
XLR Mic Pre: Onyx
Input Impedance: 3 kOhms
Max Input Level: +21 dBu
Gain: 0 to 60 dB | | Analog Monitor Out (L/R) | Connectors: 1/4" / 6.3 mm TRS impedance balanced (Supports balanced / unbalanced operation)
Output Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Max Output Level: +21 dBu | | Headphone Output | Connector: 1/4" / 6.3 mm TRS stereo
Max Output Level: +18 dBu into 600 Ohms, +19.5 dBu max into 100 kOhms | | iPad | Connection: USB-A for Lightning iPads
Connectors: 1 x USB-A (Control, audio and charging), 2 x USB-A (Charging only)
Control: Full control
Audio: Digital streaming, 2 in / 2 out
| | Networking | Connection: 1 x RJ45 Gigabit Ethernet | | Dante Interface | Connection: 2 x etherCon Gigabit Ethernet
Sample Rate: 48 kHz
Bit Depth: 24-bit
Transmit / Receive Channels: 4 / 4
Supports Dante Switch modes
Configuration via Dante Controller | | Supported Devices | iOS Version Requirement: For optimal performance, we suggest using the latest iOS version (iOS 8.0 minimum)
iPad Version Requirement Wired: iPad (4th generation), iPad mini, iPad mini 2, iPad mini 3, iPad Air, iPad Air 2, Future iPad devices
Control Application: Mackie Master Fader App requires Master Fader V4.5 Mackie indicates they will try to ensure the DC16 will support future iPad devices, but cannot guarantee it. | | Power | Power Consumption: 102 W
Power Requirements: 100 - 240 VAC, 50/60 Hz (universal supply)
Output Voltage: 12 VDC
Current: 8.5 A
Connector: Locking multi-pin
Line Cord: User-replaceable IEC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (H x W x D) | 3.3 x 36.8 x 17.6" / 84 x 935 x 447 mm | | Weight | 38 lb / 17 kg | | | | Box Dimensions (LxWxH) | 41.0 x 22.0 x 9.5" | - Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer
| Sample Rate | 48 kHz | | Bit Depth | 24-bit | | System Latency | 1.5 ms (Analog Input > Main Bus > Analog Output) | | Reference Level | 0 dBFS Reference: +22 dBu | | Frequency Response | ±0, -1 dB, 20 Hz to 20 kHz | | Distortion (THD) | Mic Input to Main Output (1 kHz, -1 dBFS): <0.005% | | Equivalent Input Noise | 150 ohm termination: -128 dBu | | Crosstalk | Analog XLR input-input: <-105 db @ 1 khz (min. gain), <-80 (max. gain)
Analog XLR / TRS output-output: <-100 dB @ 1 kHz | | Signal-to-Noise Ratio | 92 dB (ref +4 dBu, one channel and main fader at unity, A-weighted) | | Output Noise | Muted Output: -90 dBu (A-weighted) | | Dynamic Range | Analog Input to Analog Output: 109 dB (one channel and main fader at unity, A-weighted)
Analog Input: 111 dB (unity gain, to analog clipping, -60 dBFS signal, A-weighted)
Analog Output: 111 dB (to analog clipping, -60 dBFS signal, A-weighted) | | Analog Inputs | Channels 1-24: XLR balanced
Channels 25-32: Combo XLR / TRS balanced | | Mic Preamps | Onyx+ | | Analog Input Impedance | Channels 1-24: 3 kOhms
Channels 25-32: 3 kOhms mic [XLR], 30 kOhms line [1/4"] | | Max Input | XLR: +21 dBu
1/4": +30 dBu | | Gain | Gain (digitally controlled analog): XLR: 0 to 60 dB [3 dB steps], 1/4": -20 to 40 dB [3 dB steps] | | Phantom Power | (XLR): 48 VDC, 10 mA max per mic, with up to 16 simultaneously. 5 mA max per mic, with up to 32 simultaneously. Individual digital controller per channel | | Analog Outputs | XLR balanced (Analog Outputs 1-12)
1/4" TRS impedance balanced (Analog Monitor Outputs L/R, supports balanced / unbalanced operation)
1/4" TRS Stereo (Analog Headphone Out) | | Output Impedance | 600 ohms (Analog Outputs 1-12)
240 ohms balanced, 120 ohms unbalanced (Analog Monitor Outputs L/R) | | Max Output | +21 dBu (Analog Outputs 1-12)
+21 dBu (Analog Monitor Outputs L/R)
+18 dBu into 600 ohms (Analog Headphone Out) | | AES Output | Format: AES3 professional, 48 kHz, 24-bit stereo
Connector: XLR Balanced
Output Impedance: 110 ohms | | Streaming | Connection: USB 2.0 High Speed (as a device)
Connector: USB-B
Supported MS Windows [Driver installation required]: Windows 7, 8
Supported Mac OS [Audio Class 2.0 Compliant, no driver required]: OS X 10.8.4, 10.9
Audio: 32 in / 32 out, 48 kHz, 16-/24-bit | | Recording/Playback | Connection: USB 2.0 High Speed (as a host)
Connector: USB-A
Audio: 1-24 channel, 48 kHz, 16-/24-bit (multichannel .wav)
Supported Devices: USB 2.0 / 3.0 Class Compliant HDD
HDD Format: FAT32
Bus Power: 5 V, 1 A max | | Networking | Connection [Using Basic Network Option Card]: 100 Mb Ethernet
Control: Complete
Simultaneous Control: 10 iOS Devices | | iPad | iOS Version Requirement: 7.1 or greater required
iPad Version Requirement for Wireless: iPad 2, iPad (3rd generation), iPad (4th generation), iPad mini, iPad mini retina, iPad Air
Control Application: Mackie Master Fader App, Master Fader 3.0 or greater required | | DSP | 36 input channels with 4-band PEQ + HPF, gate and compression (32 stereo-linkable input channels, 4 stereo-linkable return channels with PEQ and compression only)
28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay (14 stereo-linkable aux sends, 6 stereo-linkable matrix busses, 6 stereo-linkable subgroups with PEQ and compression only, Main L/R busses)
6 VCAs and 6 mute groups
3 stereo FX processors (2 reverb, 1 delay) with dedicated sends and returns
Full I/O routing with A/B sources per channel
Modern and Vintage options per processor | | Power | Power Requirements: 100 VAC - 240 VAC, 50 - 60 Hz, Universal Supply
Power Consumption: 100 W max
Line Cord: User-replaceable IEC
Operating Temperature: 32 - 104˚F (0 - 40˚C) | | Rack Spaces | 3U rack spaces | | Dimensions | 5.4 x 19.0 x 17.5" (138 x 483 x 443 mm) | | Weight | 18.0 lb (8.2 kg) | | | | Box Dimensions (LxWxH) | 21.6 x 21.5 x 9.3" | - Mackie DL Dante Expansion Card for DL32R Mixer
| Connectors | 2 x Ethercon Gigabit Ethernet Dante ports
1 x RJ45, Gigabit Ethernet Wi-Fi control port | | Channels | 32 receive / 32 transmit | | Resolution | 24-bit | | Sampling Rate | 48 kHz | | Configuration | Via Dante controller | | Dimensions (H x W x D) | 1.7 x 5.8 x 4.8" / 44 x 147 x 122 mm | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 2.9" | - Mackie Tour-Ready Wood Case for DC16 Control Surface
| | | Type | Shipping case | | Recommended Use | For audio mixer | | Carrying Strap | Side handles | | Closure Type | 4x latches | | Telescopic Handle | Yes | | Wheels Included | Yes | | | | Box Dimensions (LxWxH) | 45.0 x 26.25 x 12.34" | - Mackie Rugged CAT5e Etherflex Cable Reel (262.5')
| | | Network Cable Type | Network cable - CAT 5e | | Features | Reel package | | Length | 262 ft |
