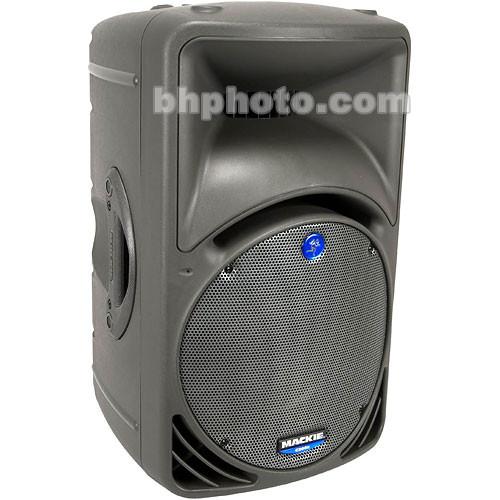

User Manual for Mackie C300z - Compact 300 Watt 2-Way Passive PA Speaker with Constant Directivity Horn Click to enlarge the picture
Contents of the user manual for the Mackie C300z - Compact 300 Watt
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie C300z - Compact 300 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

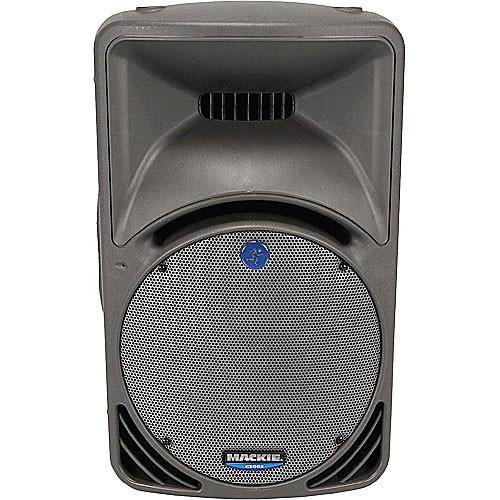

Product description The Mackie C300Z is a mid-priced 2-way speaker with a 12" woofer and a 1.75" compression driver housed in a wide-dispersion constant directivity horn, with a 300 Watt average power handling capacity. The asymmetrical design and internal damping of the C300Z contribute toward a natural sound reproduction free of phase anomalies, and the rugged enclosure may be pole-mounted, flown, or used as a floor monitor. C series speakers are tuned exclusively by the renowned EAW design team, and offer design concepts applied to elite loudspeaker systems at a fraction of the cost. - Portable Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
- HF compression driver mounted on multi-celled aperture, with constant directivity horn for wide 90° x 45° dispersion angle
- Accurate reproduction of upper mid-range and high frequencies, tuned Low Impedance Compensated Crossover(LICC) for matching driver beamwidth patterns
- Asymmetrical monocoque design with no parallel surfaces, causes reflection of mid and high frequency resonances at angles into internal damping materials, minimizes phase anomilies and other signal distortion
- Equally viable as floor monitor or mounted/flown PA speaker with natural frequency response and dispersion, free from feedback-causing transient spikes
- Dynamic protection for compression driver, 2nd order high-pass filter for over-excursion protection

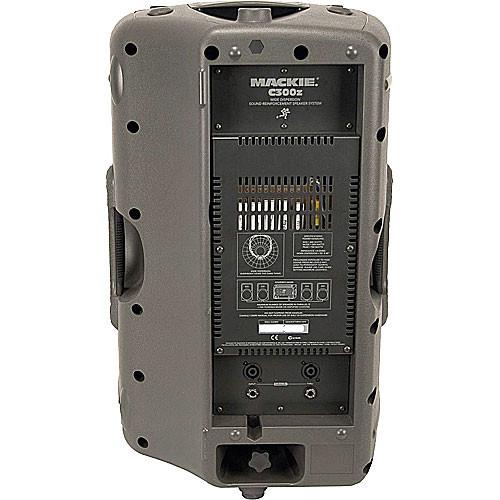

- Inputs and thruputs for parallel connection of up to 2 sets of speakers from single amp channel or powered mixer
- Rugged impact-resistant enclosure with sturdy side handles, pole-mount, and integrated rigging points for "flying" the speakers
UPC: 663961006780 In the Box Mackie C300z - Compact 300 Watt 2-Way Passive PA Speaker with Constant Directivity Horn 2 Year Warranty User Manual PDF 573.5kbevyettferbdysxxbwx Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie C300z - Compact 300 Watt 2-Way Passive PA Speaker with Constant Directivity Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie C300z Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 300 W RMS
500 W Program
750 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1.75" / 44 mm Horn-Loaded Titanium Tweeter | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 3" / 76 mm | | | | Frequency Response | 55 Hz to 18 kHz -3 dB | | Maximum SPL | 123 dB | | Speaker Sensitivity | LF:
98 dB
HF:
106 dB | | | | Audio I/O | 2 x speakON NL4
2 x 1/4" TS | | | | Crossover | 1.8 kHz, 24 dB/Octave | | | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 26.0 x 15.4 x 14.8" / 660.0 x 390.0 x 376.0 mm | | Weight | 43 lb / 19.5 kg | | | | Package Weight | 51.8 lb | | Box Dimensions (LxWxH) | 27.5 x 16.7 x 15.3" |
