User Manual for Mackie CR3 3" Woofer Creative Reference Multimedia Monitors Click to enlarge the picture
Contents of the user manual for the Mackie CR3 3" Woofer Creative Reference
- Product category: Studio Monitors Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Studio Monitors
 |
User manual for the Mackie CR3 3" Woofer Creative Reference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

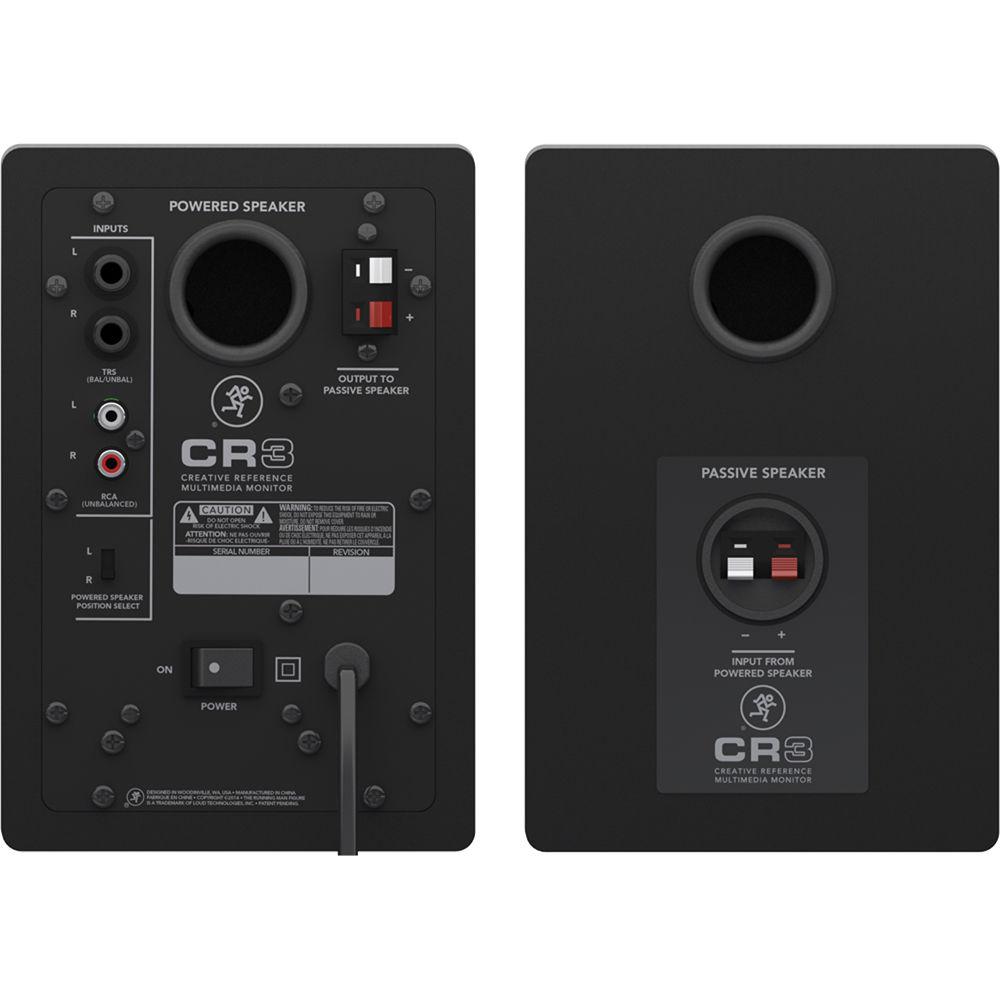

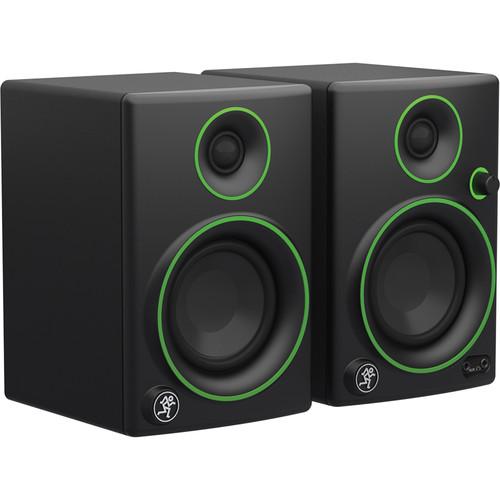

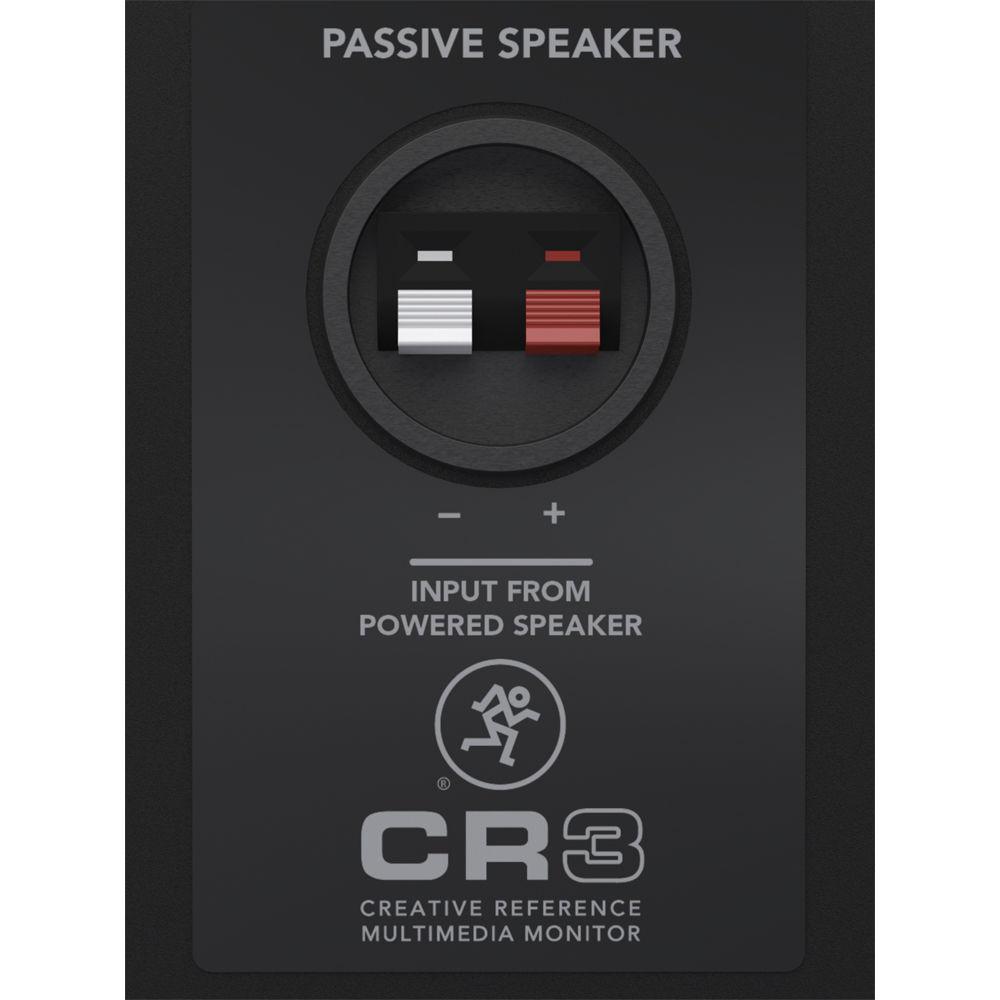

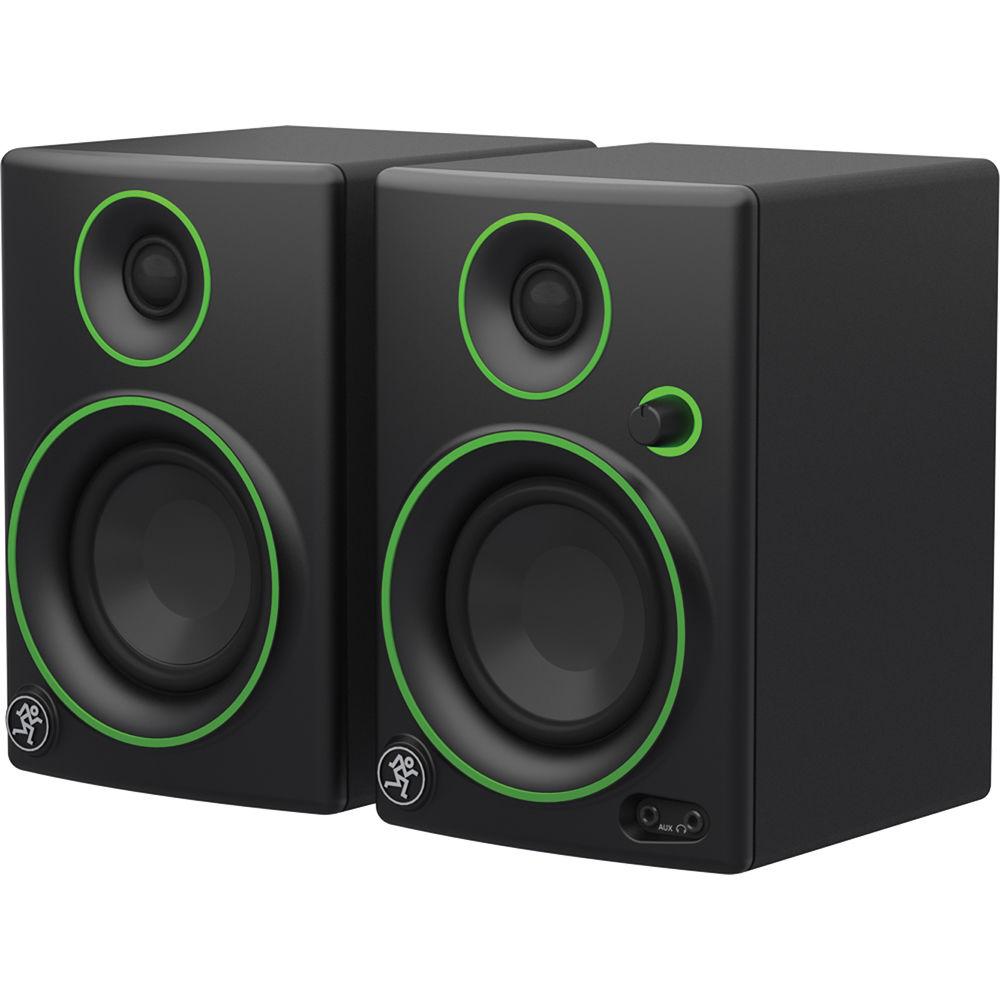

Product description The Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair) is a compact and portable solution for providing audio playback in home and studio environments. They're designed for multimedia work such as mixing music or post-production sound design. The pair consists of one passive unpowered speaker and one Class-AB amplifier powered speaker that connects with an included 6' stereo cable. The monitors use 3" polypropylene-coated woofers, a rear port tube for the low end, and 0.75" silk dome tweeters for the highs to deliver a frequency response of 80 Hz to 20 kHz with a maximum SPL of 97 dB.

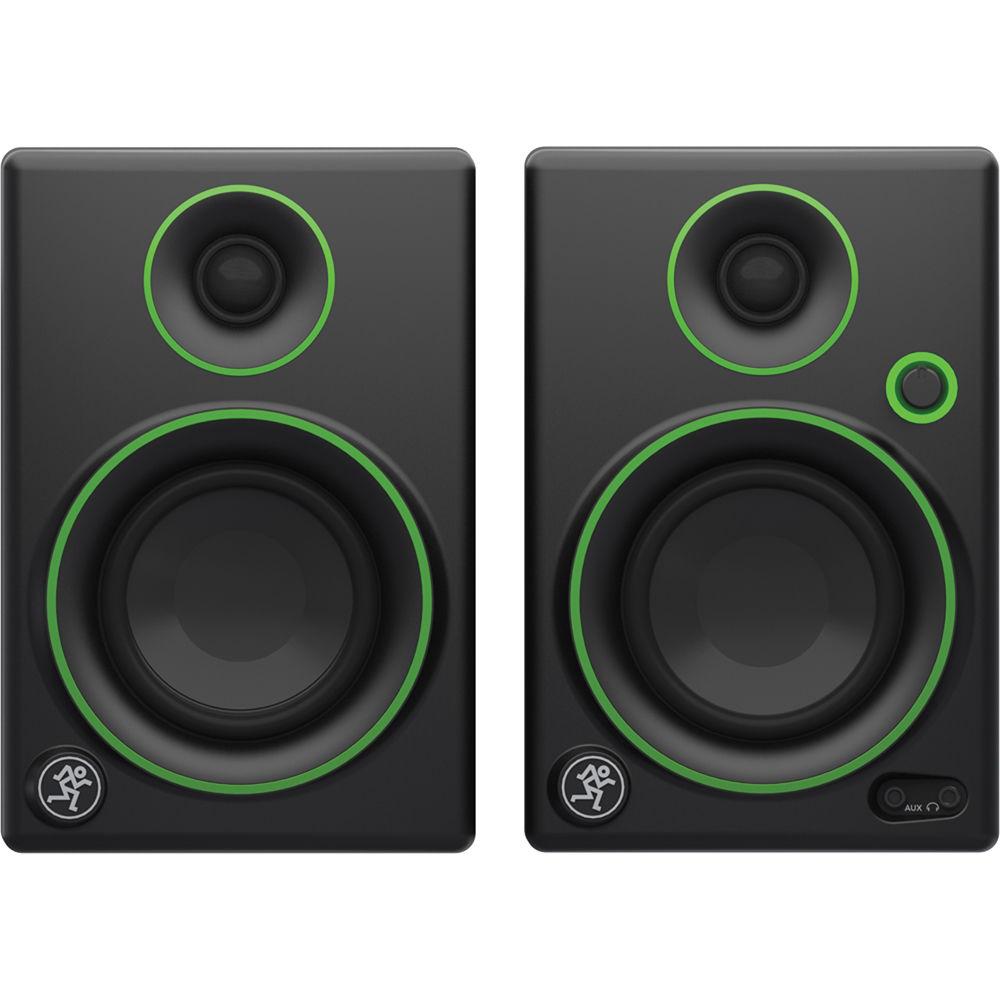

A switch allows you to select whether the powered speaker will function as the left or right speaker. This is helpful when having to position the speakers near power outlets or when deciding which side is preferable for the volume knob. A front-panel, LED power-ring illuminated on/off switch and volume knob allows you to control level. A dedicated front-panel headphone jack defeats the main speaker output and can be used to expand the system's monitoring versatility.

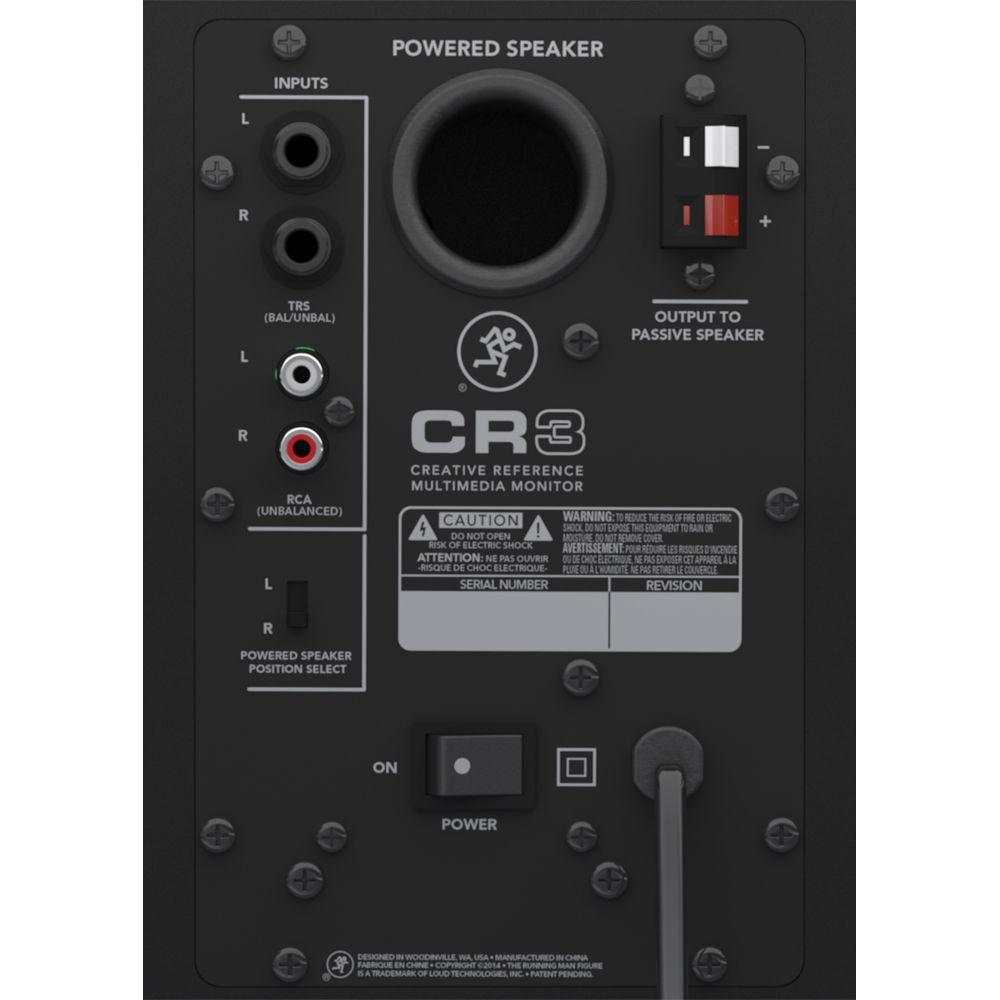

A front panel 3.5mm stereo input and included 3.5mm to 3.5mm cable allows you to connect your smartphone or other mobile device directly to the monitors. Other equipment such as audio interfaces, CD players, or mixers, can be connected to the rear panel's 1/4" TRS, 3.5mm TRS, or RCA inputs.The monitors come with a 3.5mm stereo-to-RCA cable for connecting to a computer. Also included are isolation pads for reducing the transmission of structural vibrations and for allowing the monitors to be tilted slightly up or down for a better listening angle. UPC: 663961044751 In the Box Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair) 3.5mm to Stereo RCA Cable 3.5mm to 3.5mm Cable for Connecting Smartphone to Monitor Speaker to Speaker Cable 2 x Monitor Isolation Pads Limited 3-Year Warranty on Enclosure and Electronics Limited 2-Year Warranty on Drivers User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie CR3 3" Woofer Creative Reference Multimedia Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie CR3 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 28 W RMS
50 W Peak | | Drivers | LF Driver: 1 x 3" / 7.62 cm Polypropylene Cone
HF Driver: 1 x 0.75" / 19.05 mm Silk Dome | | Amplification | Full-Range Amplifier: Class-AB Rated at 28 W RMS / 50 W Peak | | | | Frequency Range | 80 Hz to 20 Hz ± 10 dB | | Frequency Response | 70 Hz to 20 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 97 dB Per pair | | Phase Adjustment | None | | | | EQ | None | | Filters | None | | Parametric EQ | None | | | | Crossover Frequency | High-Pass Frequency: 3 kHz
Low-Pass Frequency: 3 kHz | | | | I/O | 1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Female Analog Input (20 kOhms)
1 x RCA Unbalanced Female Analog Input (10 kOhms)
1 x 1/8" (3.5 mm) TRS Unbalanced Female Analog Input
2 x Push Terminal Unbalanced Female Analog Output
1 x 1/8" (3.5 mm) TRS Unbalanced Female Analog Output | | | | AC Input Power | 120 VAC at 60 Hz | | Power Consumption | 72 W (Typical) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 5.5 x 8.2 x 6.2" / 140.0 x 208.0 x 158.0 mm (Each) | | Weight | 9.0 lb / 4.1 kg (Pair) | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 8.0" |
