User Manual for Mackie CR4BT - 4" Multimedia Monitors with Bluetooth Click to enlarge the picture
Contents of the user manual for the Mackie CR4BT - 4" Multimedia Monitors
- Product category: Studio Monitors Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Studio Monitors
 |
User manual for the Mackie CR4BT - 4" Multimedia Monitors contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

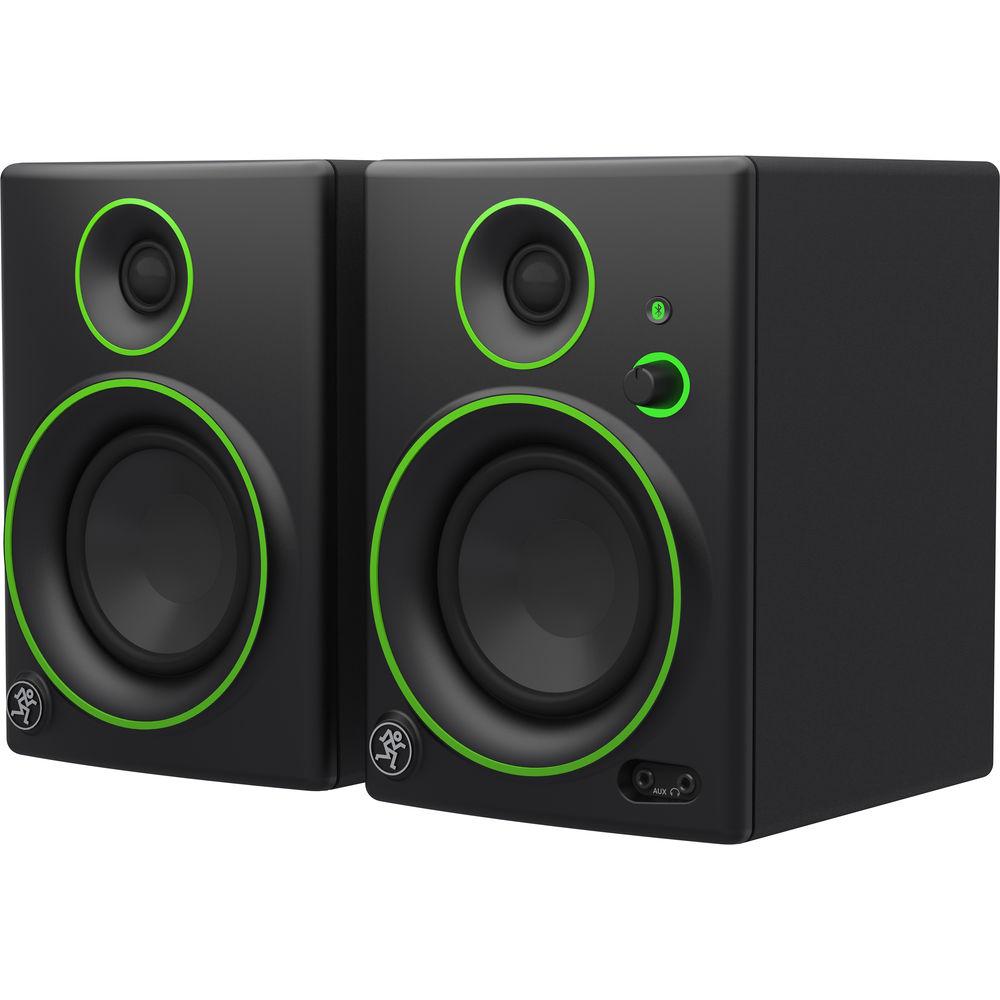

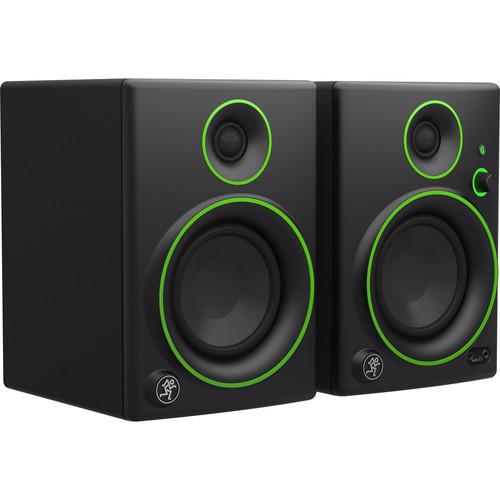

Product description Compact and portable at 12 lb, this pair of 50W CR4BT Multimedia Monitors from Mackie provides audio playback in home and studio environments. As such, they are useful for mixing music or post-production sound, and they boast Bluetooth capability to boot.

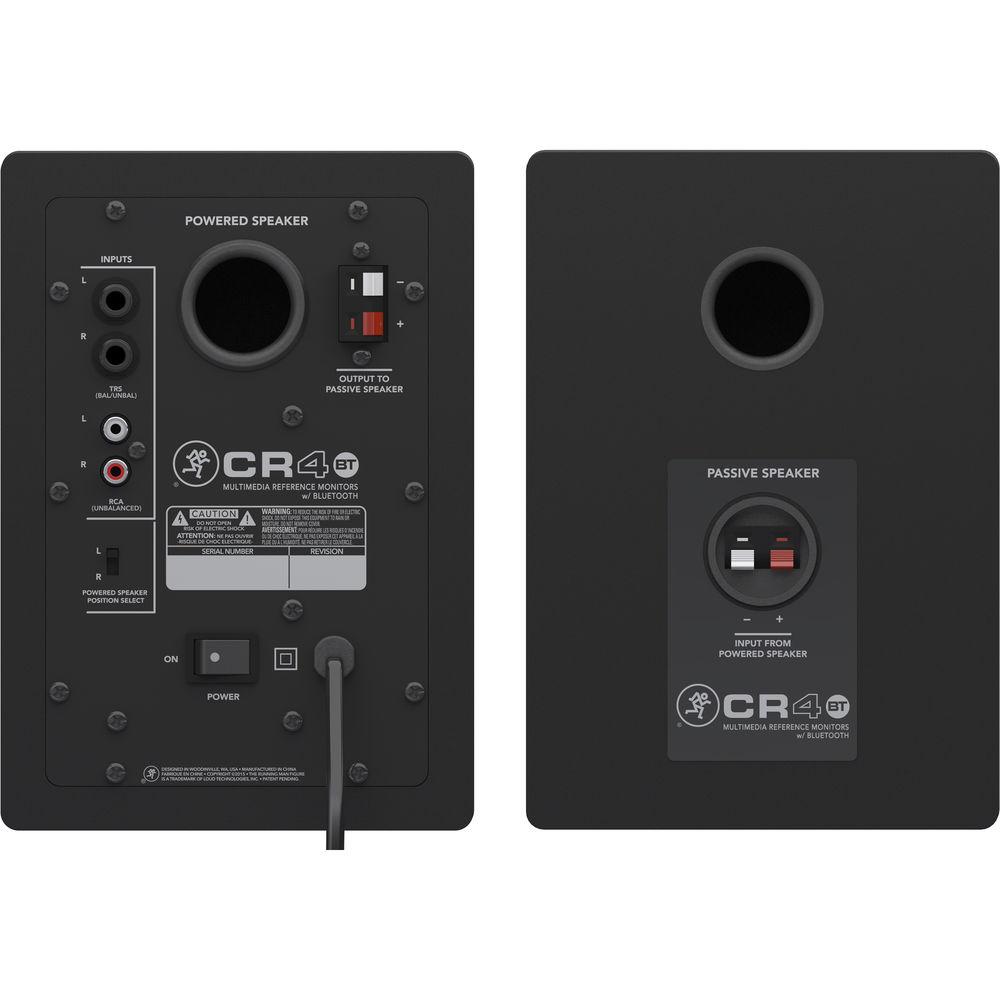

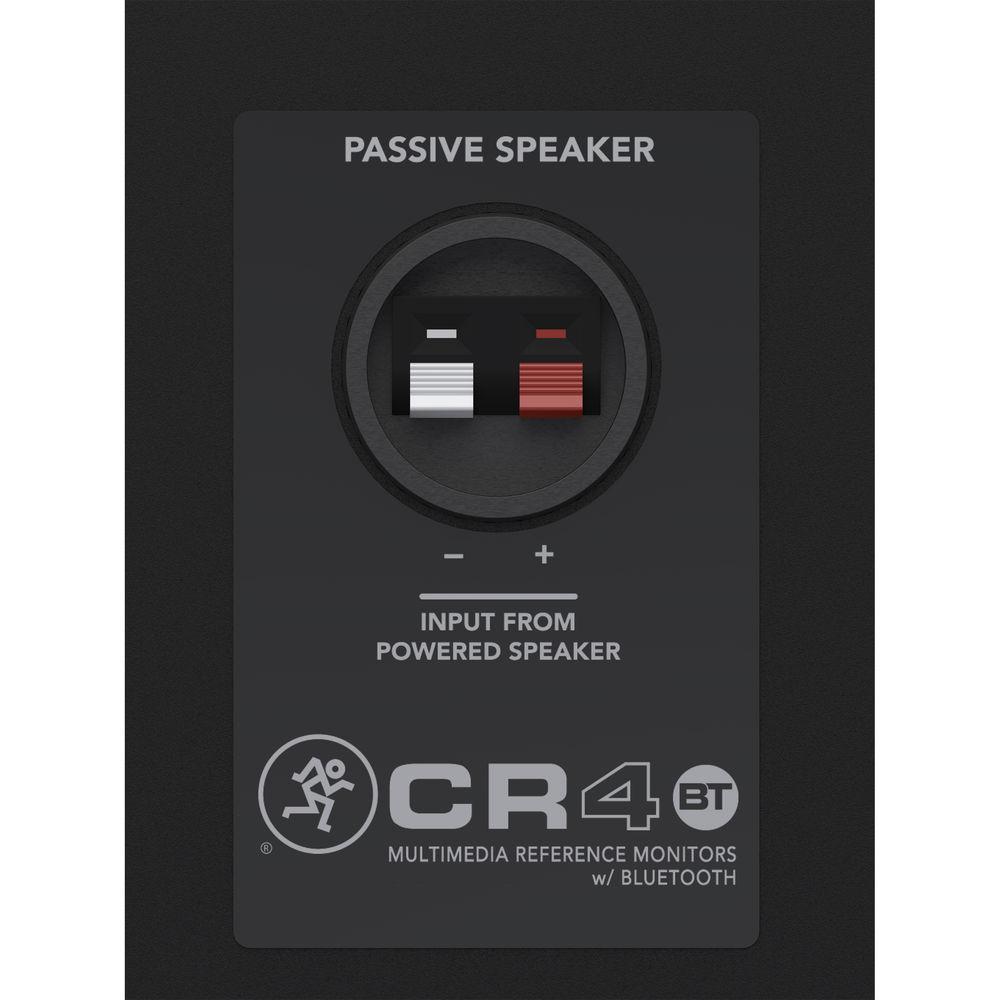

The pair consists of one Class AB amplifier-powered monitor and a passive un-powered monitor that you can connect with an included stereo cable. For the low-end, these speakers utilize 4" polypropylene-coated woofers and a rear port tube, while the highs are handled by 0.75" silk dome tweeters; all of this ensures a frequency response of 70 to 20,000 Hz with a maximum SPL of 100 dB.

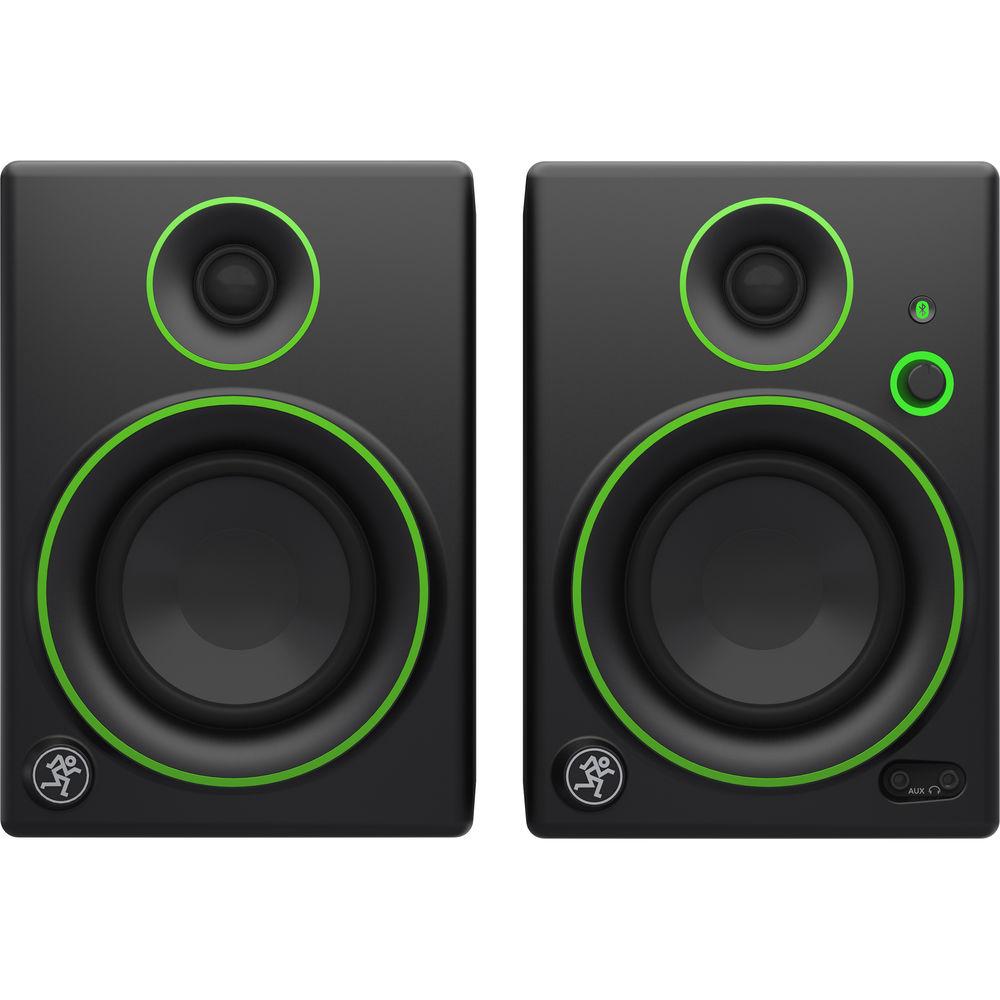

A switch allows you to select whether the powered speaker will function as the left or right monitor. This is particularly helpful when you must position the speakers near power outlets, or when you have to decide whether you'd rather have your front-panel volume knob situated on your left or right. Also adorning the monitor's front are an LED (indicating whether or not your monitors are on at any given time) and a dedicated headphone output (for private listening; please note that plugging your headphones in will silence the monitors themselves).

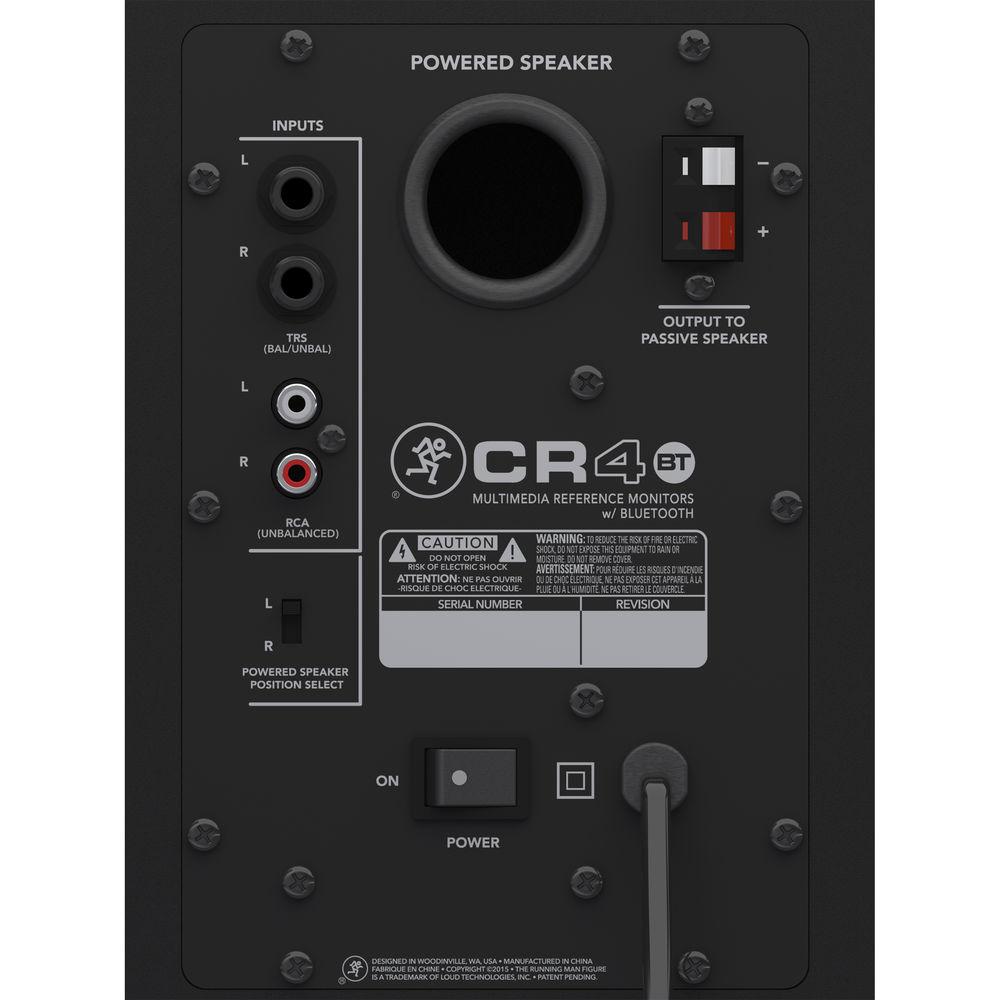

You can connect mobile devices and other devices directly to the monitors via 3.5mm, 1/4", or RCA inputs—but then again, feel free to skip all that and just go with Bluetooth. The monitors also come with isolation pads for reducing the transmission of structural vibrations. -
- 50W peak, 28W RMS
- RCA, 3.5mm, and 1/4" TRS balanced and unbalanced inputs
- Supports Bluetooth and stereo headphones
- Lightweight at 12 lb
- Switchable L/R configuration for convenience
- On-board volume knob
- Wood cabinet
- Multiple necessary cables included
- Acoustic isolation pads included
UPC: 663961048285 In the Box Mackie CR4BT - 4" Multimedia Monitors with Bluetooth (Pair) 1/8" to Stereo RCA Cable Speaker to Speaker Cable 2 x Monitor Isolation Pads Attached AC Line Cord Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie CR4BT - 4" Multimedia Monitors with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 4BT Specs | Frequency Response | 70 Hz to 20 kHz at -3 dB
60 Hz to 20 kHz at -10 dB | | Maximum SPL | 100 dB | | Crossover Frequency | 3 kHz | | Low Frequency Transducer | 4.0" / 102 mm polypropylene-coated woofer | | High Frequency Transducer | 0.75" / 19 mm silk dome tweeter | | Amplifier (Power) | 28 W RMS / 50 W Peak | | Class | AB | | Input Type | Balanced / unbalanced 1/4" TRS, unbalanced RCA (Rear), 1/8" TRS (Front) | | Input Impedance | 20 kOhms balanced bridging
10 kOhms unbalanced | | Output Type | 3.5 mm stereo headphones (front) | | Bluetooth | Bluetooth Protocol: 3.0
Bluetooth Function: Audio streaming | | Enclosure | Solid MDF | | Finish | Black vinyl wrap | | Port Configuration | Custom-tuned rear port tube | | Damping | Adiabatic batting | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Power Requirements | United States: 120 VAC, 60 Hz | | Power Consumption | 72 W with music, loud mix | | Dimensions ( H x D x W) | 8.8 x 6.1 x 7.3" / 224 x 155 x 185 mm | | Weight | 12 lb / 5.4 (pair) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 17.2 x 11.6 x 9.8" |
