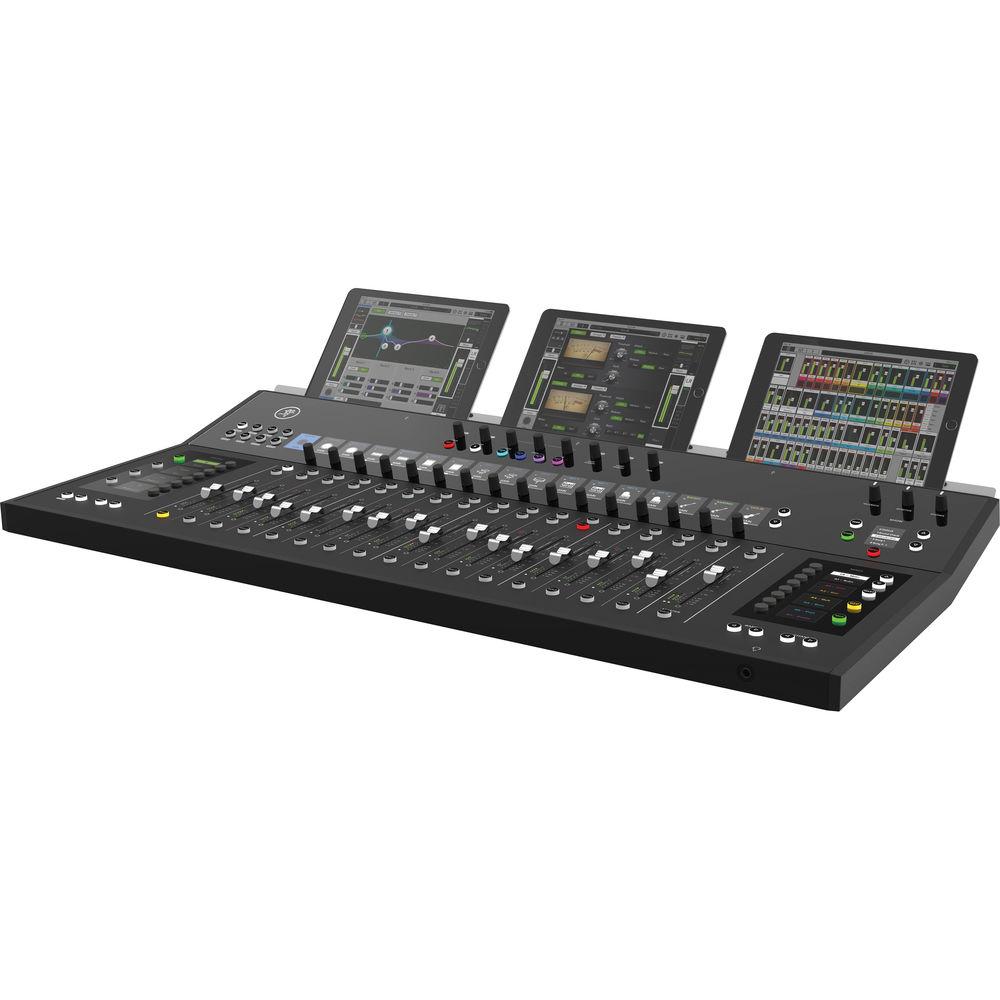

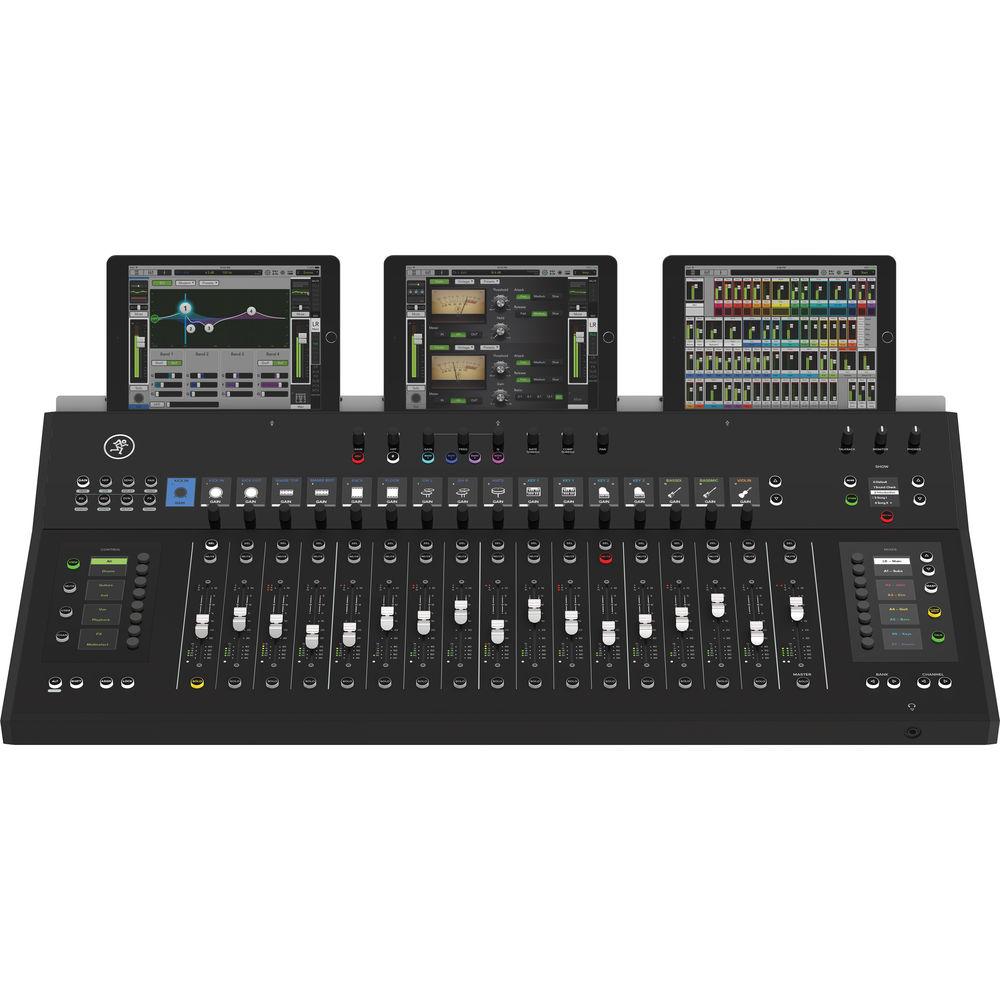

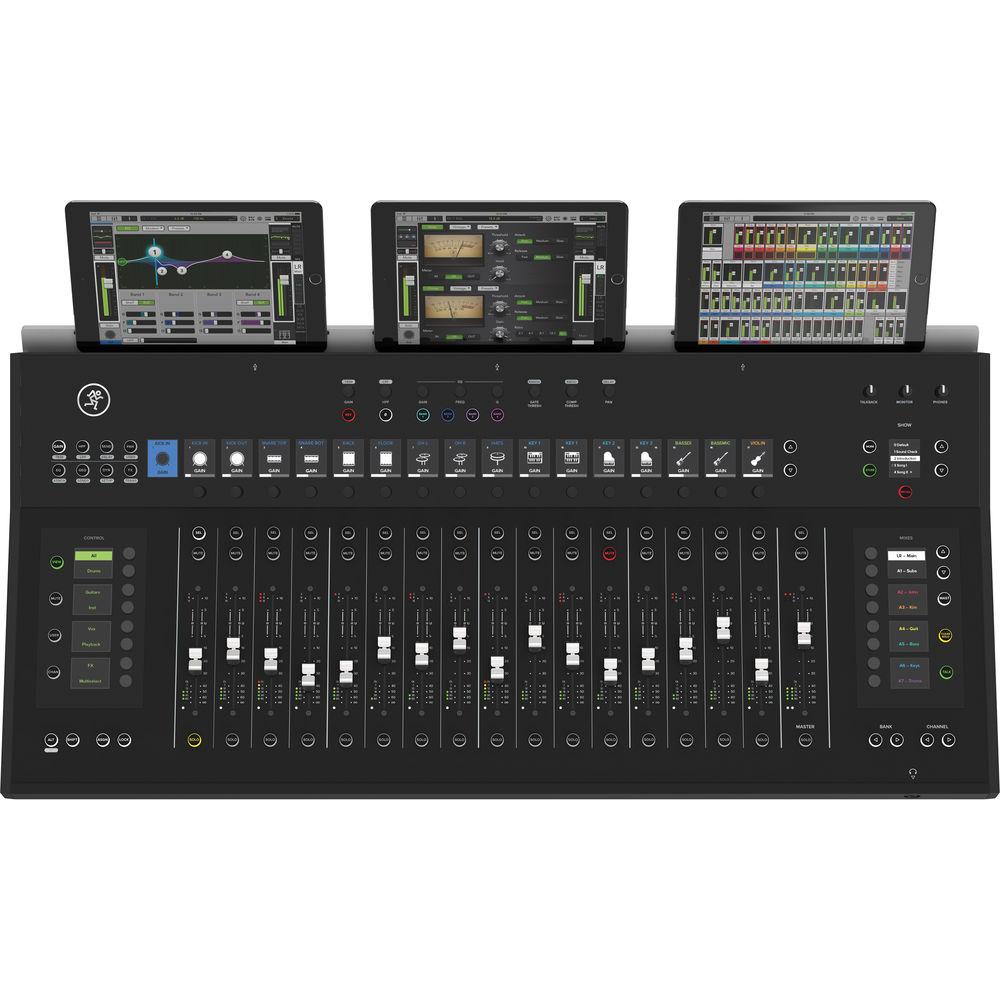

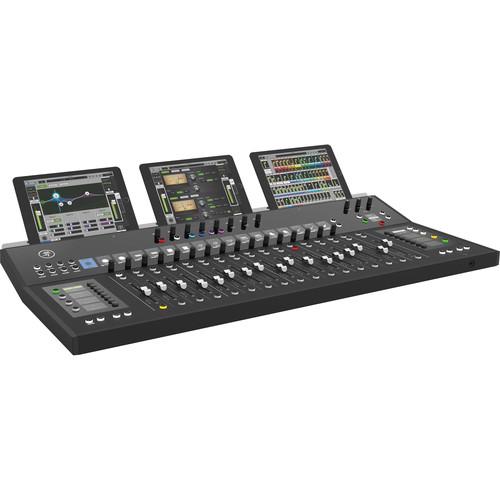

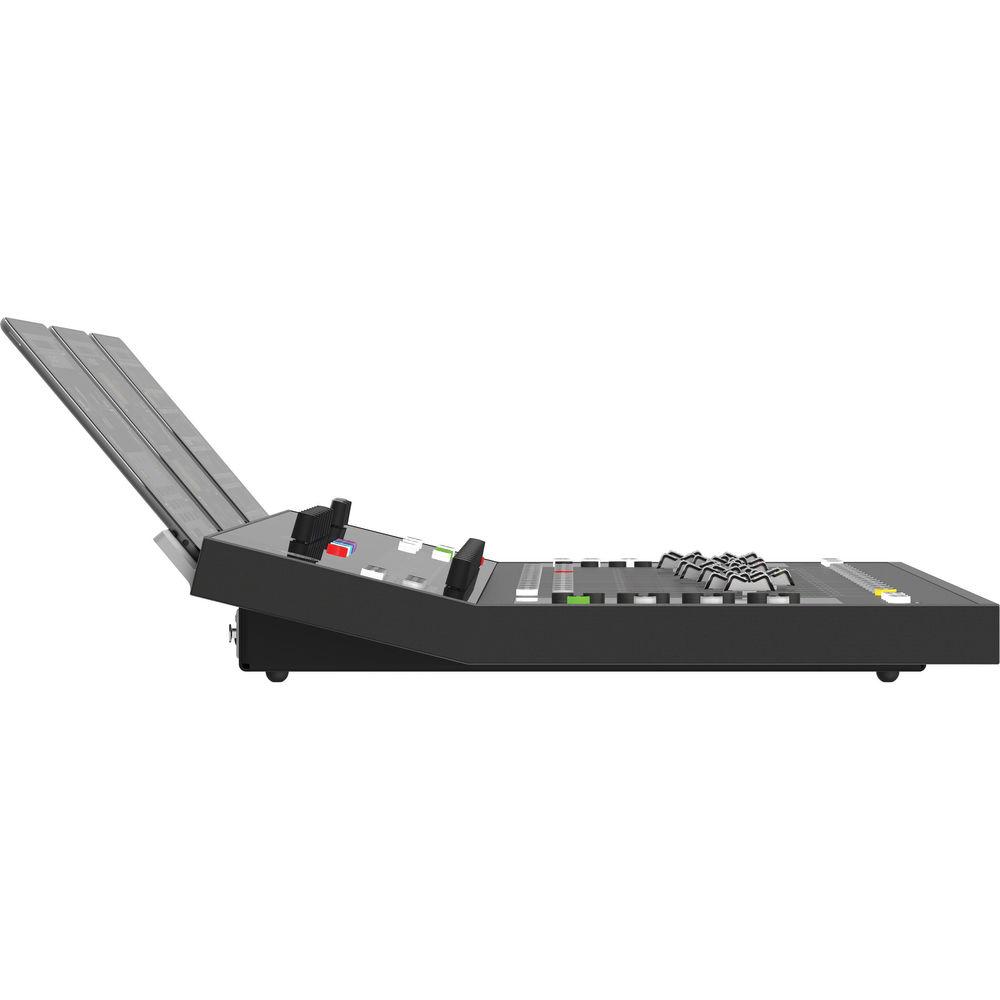

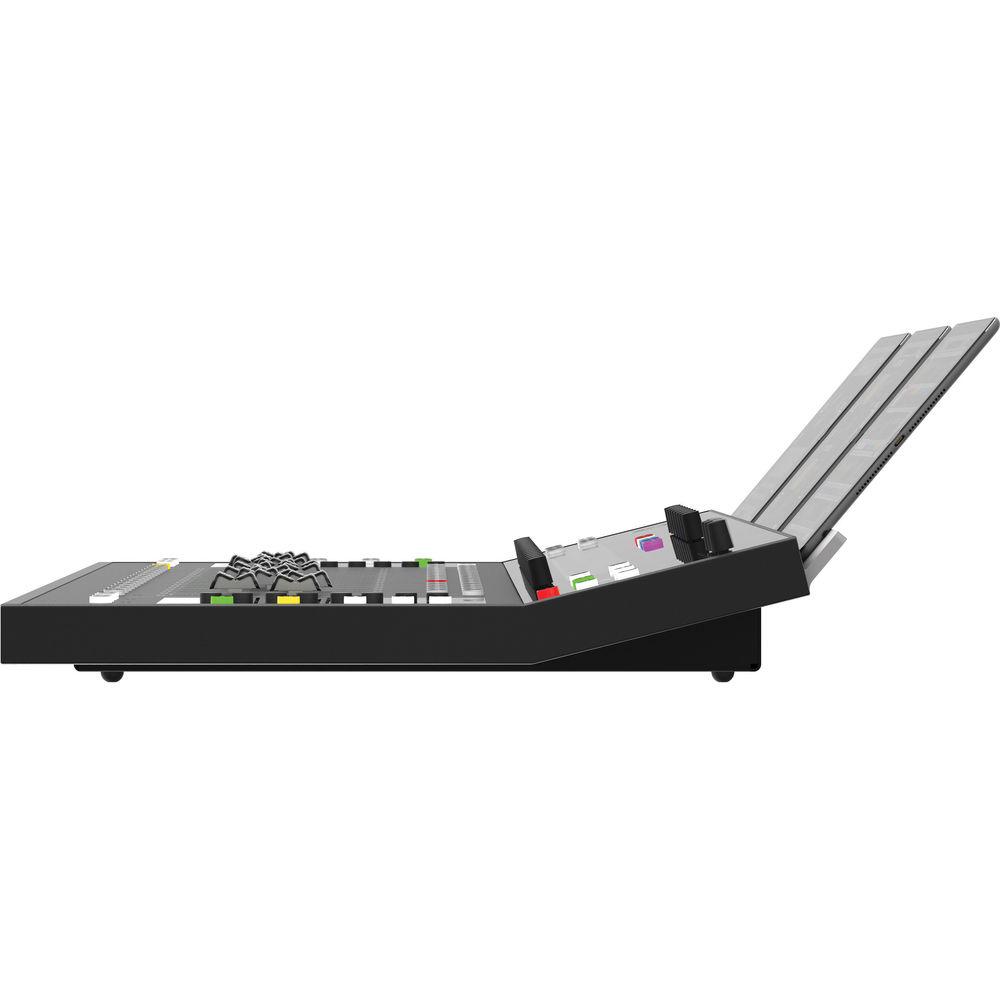

Product description The DC16 from Mackie is a Dante-connected control surface that, when combined with the DL32R digital mixer and Master Fader iOS control app, completes the AXIS Digital Mixing System. The DC16 features 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per-channel encoders. The ergonomic layout provides a generous working space with a dedicated selected channel section with controls for quick access to the most important parameters. Large, full-color back-lit channel ID screens provide flexible channel labeling which includes name, color, and icon. There are 6-segment LED channel meters and 3-segment GR meters per channel, while the dedicated show display offers snapshot control.
The DC16 uses SmartBridge, a surface to wireless mixing function that automatically senses the presence of up to three iPad devices to deliver tight integration and customized functionality. The central iPad follows the dedicated hardware controls for the selected channel and can be connected via a wired connection, which affords direct recording and playback.

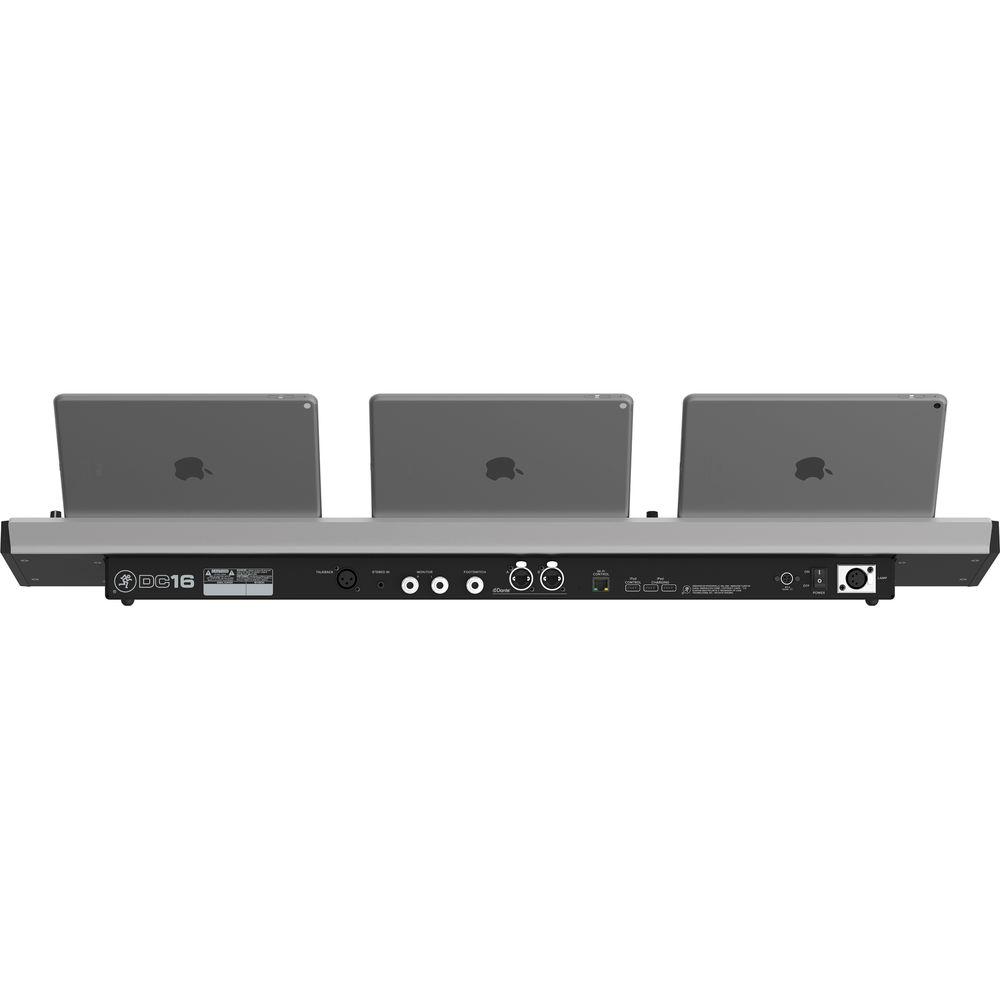

The control surface provides additional I/O for the AXIS system and includes 4x4 Dante via dual locking etherCON, an XLR talkback mic input, 1/8" stereo input, and 1/4" control room and headphone outputs. The DC16 ships with a power cord and dust cover. - DCI6 Control Surface
-
- Dedicated Dante-connected control surface for the AXIS system
- 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per-channel encoders
- Dedicated selected channel section with controls for fast access to important parameters
- Mix selector and view groups deliver innovative navigation without preset banks
- Ergonomic layout with generous working space for easy access to all controls
- Extensive Visual Feedback
- Large, full-color backlit channel ID screens with class-leading readability
- Flexible channel labeling including name, color and icon
- 6-segment LED channel meters and 3-segement GR meters per channel
- Dedicated show display with snapshot control
- Surface to Wireless Mixing via SmartBridge
- Automatically senses presence of up to three iPad devices and changes Master Fader operation to deliver tight integration and customized functionality
- Central iPad follows dedicated hardware controls for selected channel
- Unique history and fixed display iPad modes provide flexible workflow options
- Control up to four channels simultaneously from control surface and iPad devices
- Grab any iPad and go for instant wireless mixing from anywhere in the venue
- Wired recording and playback to central iPad
- Built-in charging for all three iPad devices
- Dedicated Wi-Fi router connection point
- Tough Professional Hardware
- All-steel chassis with aluminum front and back extrusions
- Low profile, compact design fits seamlessly into any workspace
- Additional I/O for Your Axis System
- 4 input, 4 output Dante via dual locking etherCON
- XLR talkback input
- 1/8" stereo input
- Control room/phones outputs
UPC: 663961045222 In the Box Mackie DC16 Axis Digital Mixing Control Surface Power Cord Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DC16 Axis Digital Mixing Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DC-16 Specs | Digital | Sample Rate: 48 kHz
A/D/A Bit Depth: 24-bit
0 dBFS Reference: +22 dBu | | Frequency Response | All Inputs and All Outputs: ±0, -1 dB, 20 Hz to 20 kHz | | Stereo Input | Connector: 1/8" / 3.5 mm unbalanced
Input Impedance: 10 kOhms
Max Input Level: +16 dBu | | Talkback Mic | Connector: XLR balanced
XLR Mic Pre: Onyx
Input Impedance: 3 kOhms
Max Input Level: +21 dBu
Gain: 0 to 60 dB | | Analog Monitor Out (L/R) | Connectors: 1/4" / 6.3 mm TRS impedance balanced (Supports balanced / unbalanced operation)
Output Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Max Output Level: +21 dBu | | Headphone Output | Connector: 1/4" / 6.3 mm TRS stereo
Max Output Level: +18 dBu into 600 Ohms, +19.5 dBu max into 100 kOhms | | iPad | Connection: USB-A for Lightning iPads
Connectors: 1 x USB-A (Control, audio and charging), 2 x USB-A (Charging only)
Control: Full control
Audio: Digital streaming, 2 in / 2 out
| | Networking | Connection: 1 x RJ45 Gigabit Ethernet | | Dante Interface | Connection: 2 x etherCon Gigabit Ethernet
Sample Rate: 48 kHz
Bit Depth: 24-bit
Transmit / Receive Channels: 4 / 4
Supports Dante Switch modes
Configuration via Dante Controller | | Supported Devices | iOS Version Requirement: For optimal performance, we suggest using the latest iOS version (iOS 8.0 minimum)
iPad Version Requirement Wired: iPad (4th generation), iPad mini, iPad mini 2, iPad mini 3, iPad Air, iPad Air 2, Future iPad devices
Control Application: Mackie Master Fader App requires Master Fader V4.5 Mackie indicates they will try to ensure the DC16 will support future iPad devices, but cannot guarantee it. | | Power | Power Consumption: 102 W
Power Requirements: 100 - 240 VAC, 50/60 Hz (universal supply)
Output Voltage: 12 VDC
Current: 8.5 A
Connector: Locking multi-pin
Line Cord: User-replaceable IEC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (H x W x D) | 3.3 x 36.8 x 17.6" / 84 x 935 x 447 mm | | Weight | 38 lb / 17 kg | | | | Package Weight | 56.5 lb | | Box Dimensions (LxWxH) | 41.0 x 22.0 x 9.5" |
