User Manual for Mackie DL Dante Expansion Card for DL32R Mixer Click to enlarge the picture
Contents of the user manual for the Mackie DL Dante Expansion Card for
- Product category: Digital Mixer Accessories Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Digital Mixer Accessories
 |
User manual for the Mackie DL Dante Expansion Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

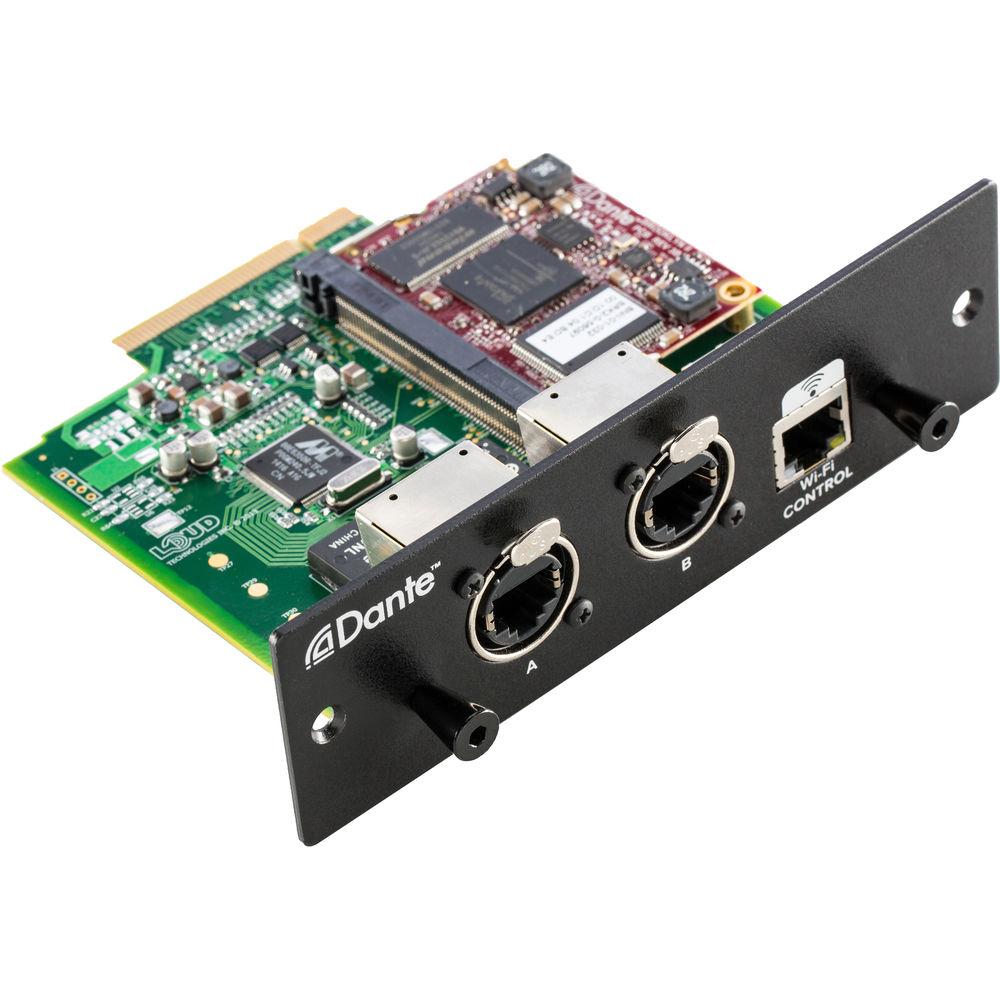

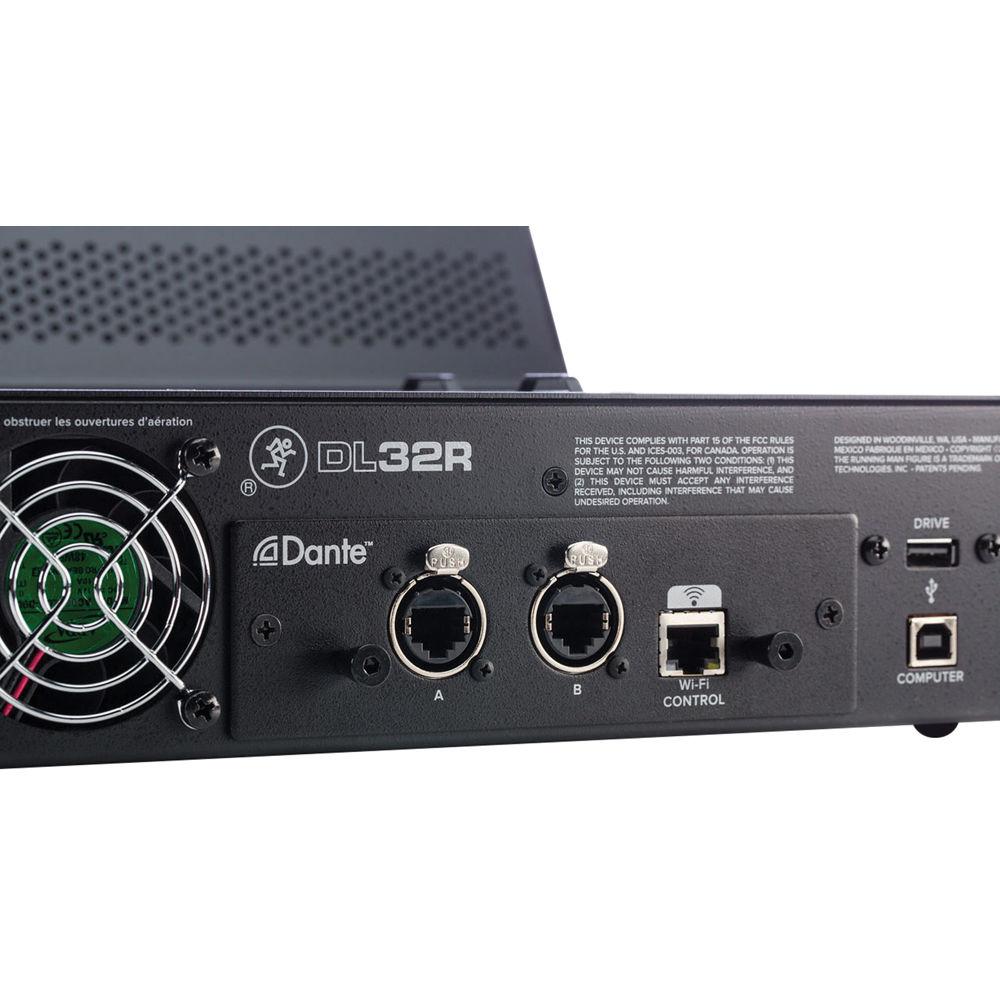

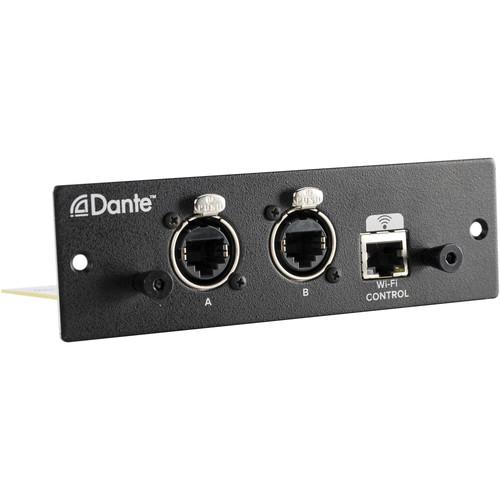

Product description Designed to work with the Mackie DL32R 32-channel live sound mixer, the DL Dante Expansion Card is designed to enable the aforementioned mixer to connect with any Dante audio network. Once installed, this expansion card provides 32x32 channels of I/O, allowing you to route disparate types of audio signal--from loudspeaker to microphone--to and from the DL32R. The card sports two Dante ports, either for daisy-chaining or system redundancy, while a dedicated Wi-Fi control port renders the need for an Ethernet switch unnecessary in many situations. Included with this expansion car is the Dante Virtual Sound Card, enabling multi-tracking recording and playback between Dante networks and computers, either in Mac or PC platforms. - 32x32 channels of 48 kHz digital audio, connecting the Mackie DL32R to a Dante network using Cat5e connections
- Route any signal to the network from the DL32R using Master Fader control software

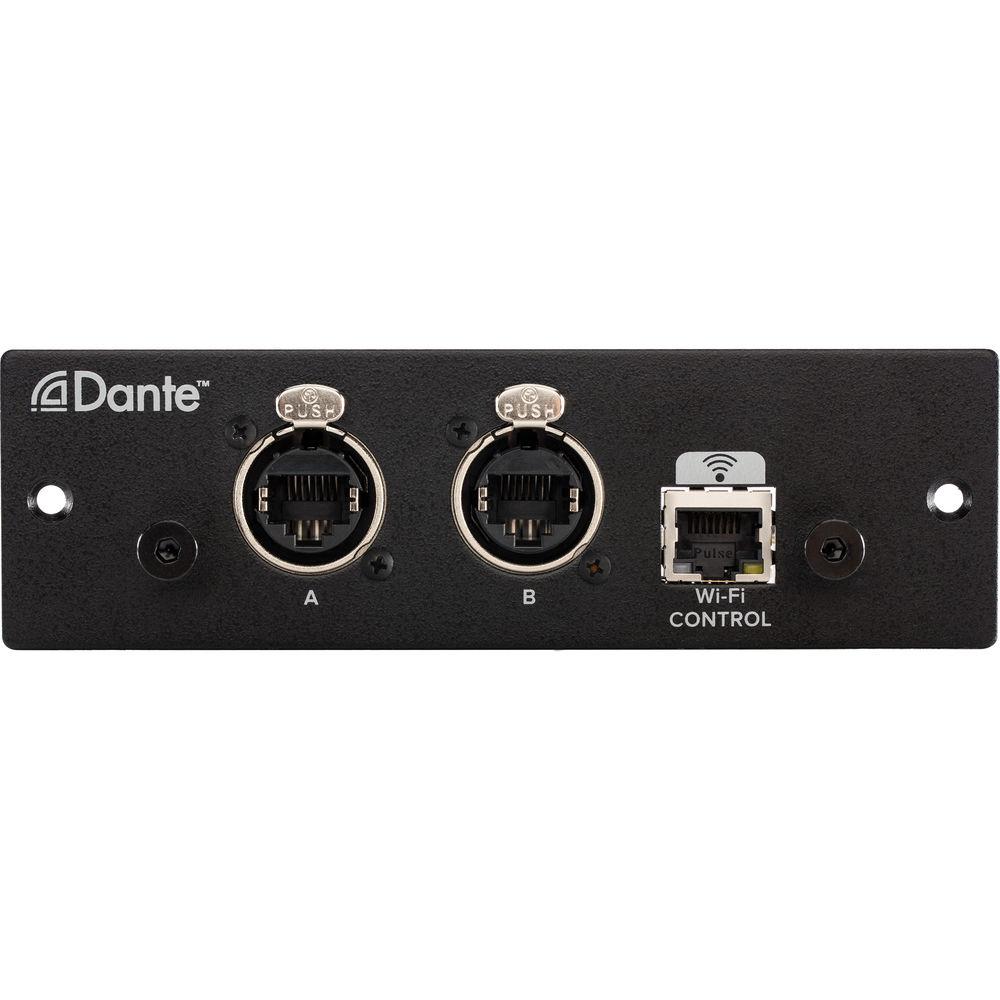

- Dual Ethercon connection points for Dante daisy-chaining or redundant Dante mode
- Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
- Automatic device discovery and custom channel naming with easy one-click routing using Dante Controller software for Mac and PC
- Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
- Use simultaneously with DL32R USB I/O for total routing and recording control
- Simple two-screw user installation
UPC: 663961045840 In the Box Mackie DL Dante Expansion Card for DL32R Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DL Dante Expansion Card for DL32R Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DL DANTE EXPANSION CARD Specs | Connectors | 2 x Ethercon Gigabit Ethernet Dante ports
1 x RJ45, Gigabit Ethernet Wi-Fi control port | | Channels | 32 receive / 32 transmit | | Resolution | 24-bit | | Sampling Rate | 48 kHz | | Configuration | Via Dante controller | | Dimensions (H x W x D) | 1.7 x 5.8 x 4.8" / 44 x 147 x 122 mm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 2.9" |
