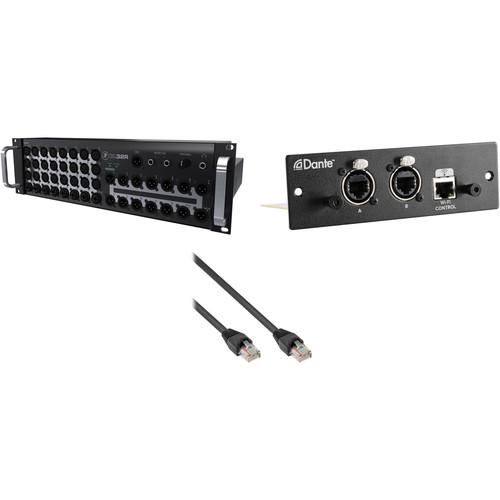

User Manual for Mackie DL32R Kit with Dante Expansion Card and 100' Cat5e Cable Click to enlarge the picture
Contents of the user manual for the Mackie DL32R Kit with Dante Expansion
- Product category: Digital Mixer Accessories Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Digital Mixer Accessories
|
User manual for the Mackie DL32R Kit with Dante Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer with a Mackie DL Dante Expansion Card and a 100' Cat5e Patch Cable for connecting the mixer to a Dante network for live and studio applications. The DL32R is a 32-channel wireless digital audio mixer and USB 2.0 audio interface that allows the entire process of live sound mixing to be controlled with an iPad, and allows for personal monitor mixing with any iOS device, such as an iPhone or iPod touch. The mixer features 32 microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps, capable of handling full bands that include guitars, full drum sets, vocals, and much more. The DL32R also provides 24-bit/48 kHz audio capture and playback for recording in live situations or in the studio. As an audio interface, the DL32R can be paired with your Mac or PC, or you can record directly to a USB 2.0 hard drive without a computer.
The DL Dante Expansion Card connects the DL32R 32-channel digital live sound mixer to any Dante-enabled audio network. With 32x32 channels of inputs/outputs, the user can route inputs like microphones and other sources to any channel on the DL32R. It's also perfect for sending any DL32R signal to loudspeaker systems and amplifiers. The card features dual ports for daisy-chaining or system redundancy, and a dedicated Wi-Fi control port that eliminates the need for an Ethernet switch in many situations. The 100.0' / 30.5m Cat5e is a TIA/EIA-compliant patch cable featuring gold-plated RJ-45 connectors, a snagless boot to prevent the clip from getting caught on carpeting, woodwork or other obstructions, and twisted pair construction. The male-to-male UL-rated cable moves data along at a rate of 350 MHz, and is well suited for Gigabit networks. - Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer
- Mackie DL32R - Product Presentation (Full Version)
The Mackie DL32R is a 32-channel wireless digital audio mixer and USB 2.0 audio interface that allows the entire process of live sound mixing to be controlled with an iPad, and allows for personal monitor mixing with any iOS device, such as an iPhone or iPod touch. It delivers a live sound mixing experience that takes advantage of the iOS touch screen and wireless control capabilities, while providing a wealth of professional features to accommodate a wide variety of sound reinforcement and recording applications.
The DL32R features 32 microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps, capable of handling full bands that include guitars, full drum sets, vocals, and much more. It also has 14 fully assignable XLR outputs for connection to amplifiers, powered speakers, wireless transmitters for in-ear monitoring. The DL32R also allows up to 10 performing musicians to mix their own monitors using their iPhone, iPad or iPod touch.
In addition to sound reinforcement, the unit also provides 24-bit/48 kHz audio capture and playback for recording in live situations or in the studio. As an audio interface, the DL32R can be paired with your Mac or PC computer, or you can record directly to a USB 2.0 hard drive without a computer. Featuring three stereo FX processors with reverbs and delays, and dedicated sends & returns, the DL32R can function as a versatile, all-in-one mixing and recording solution. - Features at a Glance:
-
- Master Fader iPad app for complete wireless control and frequent updates via App Store
- Supports up to 10 separate iOS devices at once
- 32 Microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps
- 14 Fully assignable XLR outputs
- 36 Input channels with 4-band PEQ + HPF, gate and compression
- 28 Output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay
- 3 Stereo FX processors with tons of great-sounding reverbs and delays plus dedicated sends & returns
- 6 VCAs
- 6 Mute groups
- Stereo AES digital output
- Card slot for Dante expansion
- Total recall for all settings
UPC: 663961044607 - Mackie DL Dante Expansion Card for DL32R Mixer
- Mackie DL32R - Product Presentation (Full Version)
Designed to work with the Mackie DL32R 32-channel live sound mixer, the DL Dante Expansion Card is designed to enable the aforementioned mixer to connect with any Dante audio network. Once installed, this expansion card provides 32x32 channels of I/O, allowing you to route disparate types of audio signal--from loudspeaker to microphone--to and from the DL32R. The card sports two Dante ports, either for daisy-chaining or system redundancy, while a dedicated Wi-Fi control port renders the need for an Ethernet switch unnecessary in many situations. Included with this expansion car is the Dante Virtual Sound Card, enabling multi-tracking recording and playback between Dante networks and computers, either in Mac or PC platforms. - 32x32 channels of 48 kHz digital audio, connecting the Mackie DL32R to a Dante network using Cat5e connections
- Route any signal to the network from the DL32R using Master Fader control software
- Dual Ethercon connection points for Dante daisy-chaining or redundant Dante mode
- Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
- Automatic device discovery and custom channel naming with easy one-click routing using Dante Controller software for Mac and PC
- Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
- Use simultaneously with DL32R USB I/O for total routing and recording control
- Simple two-screw user installation
UPC: 663961045840 - Pearstone Cat 5e Snagless Patch Cable (100', Black)
- Mackie DL32R - Product Presentation (Full Version)
With the durable black Pearstone Cat 5e Snagless Patch Cable, you can connect your computer to a network, extending the existing network connection, or run cables throughout an office for Gigabit-speed connectivity. This cable has a length of 100', is constructed with stranded bare-copper connectors, and offers data transmission speeds that exceed Cat 5e standards.
The twisted-pair construction of this Pearstone cable helps to minimize RF or EM interference and reduces near-end crosstalk, which helps ensure your data speeds won't slow down when sharing an area with other power or communication lines. Gold-plated RJ45 connectors assure reliable connectivity and enhanced Ethernet speeds while resisting corrosion. With features like a snagless boot and a durable, high-quality PVC jacket, Pearstone's Cat 5e cable can withstand wear and tear under the most demanding conditions. General Features - Gold-Plated RJ45 Connectors
- Gold plating enhances conductivity and provides enhanced data transmission speeds. Gold connectors are also noncorrosive for long cable life.
- Gigabit Compatible
- The Cat 5e cable has a 250 MHz rating to connect to a Gigabit network.
- Twisted-Pair Construction
- The bare copper conductors are tightly twisted to minimize RF and EM interference and near-end crosstalk that can slow down the speed of your network.
- Snagless Boot
- The cable's boot offers strain relief and covers the tab so you can smoothly pull the cable through a bundle without snagging.
- Flexible and Durable
- The cable is constructed with a bare copper stranded conductor that allows you to flex the cable as needed. The high-quality PVC jacket is durable enough to withstand heave use.
- Colors
- To make sure all your cables don't look alike, and so you don't use the wrong cable, Pearstone offers a wide variety of colors for easy cable identification.
UPC: 847628005747 In the Box - DL32R 32-Channel Wireless Digital Live Sound Mixer xrczwuxyufacrqzufdwazf
- Power Cord
- Limited 1-Year Warranty
- DL Dante Expansion Card for DL32R Mixer
- Pearstone - Cat 5e Snagless Patch Cable (100', Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DL32R Kit with Dante Expansion Card and 100' Cat5e Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer
| Sample Rate | 48 kHz | | Bit Depth | 24-bit | | System Latency | 1.5 ms (Analog Input > Main Bus > Analog Output) | | Reference Level | 0 dBFS Reference: +22 dBu | | Frequency Response | ±0, -1 dB, 20 Hz to 20 kHz | | Distortion (THD) | Mic Input to Main Output (1 kHz, -1 dBFS): <0.005% | | Equivalent Input Noise | 150 ohm termination: -128 dBu | | Crosstalk | Analog XLR input-input: <-105 db @ 1 khz (min. gain), <-80 (max. gain)
Analog XLR / TRS output-output: <-100 dB @ 1 kHz | | Signal-to-Noise Ratio | 92 dB (ref +4 dBu, one channel and main fader at unity, A-weighted) | | Output Noise | Muted Output: -90 dBu (A-weighted) | | Dynamic Range | Analog Input to Analog Output: 109 dB (one channel and main fader at unity, A-weighted)
Analog Input: 111 dB (unity gain, to analog clipping, -60 dBFS signal, A-weighted)
Analog Output: 111 dB (to analog clipping, -60 dBFS signal, A-weighted) | | Analog Inputs | Channels 1-24: XLR balanced
Channels 25-32: Combo XLR / TRS balanced | | Mic Preamps | Onyx+ | | Analog Input Impedance | Channels 1-24: 3 kOhms
Channels 25-32: 3 kOhms mic [XLR], 30 kOhms line [1/4"] | | Max Input | XLR: +21 dBu
1/4": +30 dBu | | Gain | Gain (digitally controlled analog): XLR: 0 to 60 dB [3 dB steps], 1/4": -20 to 40 dB [3 dB steps] | | Phantom Power | (XLR): 48 VDC, 10 mA max per mic, with up to 16 simultaneously. 5 mA max per mic, with up to 32 simultaneously. Individual digital controller per channel | | Analog Outputs | XLR balanced (Analog Outputs 1-12)
1/4" TRS impedance balanced (Analog Monitor Outputs L/R, supports balanced / unbalanced operation)
1/4" TRS Stereo (Analog Headphone Out) | | Output Impedance | 600 ohms (Analog Outputs 1-12)
240 ohms balanced, 120 ohms unbalanced (Analog Monitor Outputs L/R) | | Max Output | +21 dBu (Analog Outputs 1-12)
+21 dBu (Analog Monitor Outputs L/R)
+18 dBu into 600 ohms (Analog Headphone Out) | | AES Output | Format: AES3 professional, 48 kHz, 24-bit stereo
Connector: XLR Balanced
Output Impedance: 110 ohms | | Streaming | Connection: USB 2.0 High Speed (as a device)
Connector: USB-B
Supported MS Windows [Driver installation required]: Windows 7, 8
Supported Mac OS [Audio Class 2.0 Compliant, no driver required]: OS X 10.8.4, 10.9
Audio: 32 in / 32 out, 48 kHz, 16-/24-bit | | Recording/Playback | Connection: USB 2.0 High Speed (as a host)
Connector: USB-A
Audio: 1-24 channel, 48 kHz, 16-/24-bit (multichannel .wav)
Supported Devices: USB 2.0 / 3.0 Class Compliant HDD
HDD Format: FAT32
Bus Power: 5 V, 1 A max | | Networking | Connection [Using Basic Network Option Card]: 100 Mb Ethernet
Control: Complete
Simultaneous Control: 10 iOS Devices | | iPad | iOS Version Requirement: 7.1 or greater required
iPad Version Requirement for Wireless: iPad 2, iPad (3rd generation), iPad (4th generation), iPad mini, iPad mini retina, iPad Air
Control Application: Mackie Master Fader App, Master Fader 3.0 or greater required | | DSP | 36 input channels with 4-band PEQ + HPF, gate and compression (32 stereo-linkable input channels, 4 stereo-linkable return channels with PEQ and compression only)
28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay (14 stereo-linkable aux sends, 6 stereo-linkable matrix busses, 6 stereo-linkable subgroups with PEQ and compression only, Main L/R busses)
6 VCAs and 6 mute groups
3 stereo FX processors (2 reverb, 1 delay) with dedicated sends and returns
Full I/O routing with A/B sources per channel
Modern and Vintage options per processor | | Power | Power Requirements: 100 VAC - 240 VAC, 50 - 60 Hz, Universal Supply
Power Consumption: 100 W max
Line Cord: User-replaceable IEC
Operating Temperature: 32 - 104˚F (0 - 40˚C) | | Rack Spaces | 3U rack spaces | | Dimensions | 5.4 x 19.0 x 17.5" (138 x 483 x 443 mm) | | Weight | 18.0 lb (8.2 kg) | | | | Box Dimensions (LxWxH) | 21.6 x 21.5 x 9.3" | - Mackie DL Dante Expansion Card for DL32R Mixer
| Connectors | 2 x Ethercon Gigabit Ethernet Dante ports
1 x RJ45, Gigabit Ethernet Wi-Fi control port | | Channels | 32 receive / 32 transmit | | Resolution | 24-bit | | Sampling Rate | 48 kHz | | Configuration | Via Dante controller | | Dimensions (H x W x D) | 1.7 x 5.8 x 4.8" / 44 x 147 x 122 mm | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 2.9" | - Pearstone Cat 5e Snagless Patch Cable (100', Black)
| | | Cable Length | 100' / 30.48 m | | Ethernet Standards | Cat 5e | | Connector 1 | RJ45 Male | | Connector 2 | RJ45 Male | | Compatibility | 10/100/1000 Base-T | | | | Shielding | None | | Cable Configuration | Stranded | | Pin Assignment | T568B | | Boot Type | Snagless | | Outer Diameter | 0.21" / 5.4 mm | | Wire Gauge | 24 AWG | | Jacket Type | Polyvinyl Chloride (PVC) | | Conductor | Bare Copper | | Contact Material | Copper | | Contact Plating | Gold | | Insulation | HDPE | | Certifications | RoHS, UL, as per Manufacturer | | | | Box Dimensions (LxWxH) | 5.6 x 3.8 x 1.9" |
